Meteo: Incoming shortwave radiation (SW_IN) (2006-2025)

Modified

2 August 2026

Author: Lukas Hörtnagl (holukas@ethz.ch)

About this notebook

Overview of the gap-filled incoming shortwave radiation product of CH-LAE. The product is produced by 10_METEO/30_PRODUCTS/01_METEO_SW_IN_2004-2025.ipynb; this notebook computes and corrects nothing, it only describes what was exported.

Columns of the product

  • SW_IN_T1_47_1_gfXG — incoming shortwave radiation (W m⁻²), continuous, gap-filled, non-negative, and exactly zero at night
  • FLAG_SW_IN_T1_47_1_ISFILLED — 0 = measured, 1 = XGBoost model, 2 = timestamp-only fallback model, 3 = nighttime gap set to zero by physics. There is no code 4

One column, no homogenised variant. Unlike TA, this series carries no second value column. The 21 January 2016 acquisition change replaced the logger but not the sensor — every surviving logger program reads the same Kipp & Zonen CNR1 through the same calibration — and the December 2021 replacement of the radiometer itself did not move the level either. Sensor continuity below re-derives both results on every run rather than restating them.

NoteThree things that make radiation different from temperature
  • Half the record is exactly zero. Nights are zero by physics, not by measurement, and they are 48 % of all half-hours. A mean over all records is therefore as much a statement about day length as about the sky, and a distribution over all records is dominated by a spike at zero. Everything distributional below is computed on daylight half-hours only, and the sums are reported as daily and annual totals, which have no such ambiguity.
  • The quantity is bounded from above. Potential radiation — what the sun delivers at this latitude on this date with no atmosphere — is astronomical and cannot drift, so it makes a natural denominator. The clearness index, the ratio of the two, separates the state of the sky from the position of the sun and is what the seasonality and threshold sections use.
  • Errors are multiplicative. A sensitivity a few per cent wrong reads a few per cent low at every irradiance, so comparisons against a reference are ratios below, never differences.

Timestamps. The product is stored on TIMESTAMP_MIDDLE at 30 minutes, so a record labelled 13:15 is the average over 13:00 to 13:30. Wherever a single record is quoted, its averaging window is reported instead of its timestamp.

Three conventions used throughout

  • Extremes are taken from measured records only. A gap-filled value is a model result and cannot set a record. Means, counts and totals use the full series, which is why the gap-filled share of each year is reported before any statistic.
  • Yearly means are means of yearly means. The overall mean averages the yearly means, so every year carries the same weight. The mean over all records is printed next to it for comparison.
  • The record starts in 2006. The product begins in 2004, but the radiometer was not wired to this tower’s logger until 14 September 2005, so 2004 is entirely modelled and 2005 is 30 % measured. Neither can be compared with a measured year.


Settings

# Identity of the series in the product file. Unlike TA there is one value column: this series is
# homogeneous across both of its hardware changes, which the sensor-continuity section re-derives.
varname = 'SW_IN_T1_47_1_gfXG'
flagname = 'FLAG_SW_IN_T1_47_1_ISFILLED'
var = "SW_IN"  # name shown in plots
units = r"$\mathrm{W\ m^{-2}}$"
units_plain = "W m-2"
units_sum = r"$\mathrm{MJ\ m^{-2}}$"

# What the fill flag codes mean, taken from the notebook that produced the product
# (10_METEO/30_PRODUCTS/01). Code 3 is not an estimate: the sun is below the horizon and the value
# is zero by physics. There is no code 4 - short-gap interpolation stayed off, because a second
# radiation measurement was available in both gap-filling periods.
FLAG_LEGEND = {
    0: 'measured',
    1: 'XGBoost model (daytime gap)',
    2: 'timestamp-only fallback model (daytime gap)',
    3: 'nighttime gap, set to zero by physics',
}
# Codes that no model produced, for the "not modelled" share reported beside the measured share.
NOT_MODELLED = [0, 3]

# Period covered by this overview. The product starts in 2004, but the radiometer was connected to
# this tower's logger on 14 September 2005: 2004 is entirely modelled and 2005 is 30 % measured.
FIRST_YEAR = 2006
LAST_YEAR = 2025

# Analysis parameters.
N_RECENT_YEARS = 10  # length of the recent period in the period means
N_RANKED = 5  # number of years listed as brightest and dullest
N_EXTREMES = 10  # number of records listed in the extremes tables
REFERENCE_START_YEAR = FIRST_YEAR  # reference period for all anomalies
REFERENCE_END_YEAR = LAST_YEAR

# Site coordinates and timezone, used for potential radiation. It depends on nothing but the clock
# and the location, so every quantity derived from it introduces no further measurement.
# Same values as 10_METEO/30_PRODUCTS.
SITE_LAT = 47.478333  # CH-LAE
SITE_LON = 8.364389
TIMEZONE_OFFSET_TO_UTC_HOURS = 1  # CET (winter time), the timezone the product is stored in

# Daylight is defined from potential radiation rather than from the measurement, so the definition
# does not depend on the series being described. 20 W m-2 of potential radiation excludes the
# twilight half-hours in which a ratio against it is dominated by its own denominator.
DAYLIGHT_POTRAD = 20.0

# Clearness-index thresholds for the day-type counts. Chosen from the record's own daily
# distribution (its 25th and 75th percentiles fall near these), so both classes are populated in
# every year rather than only in unusual ones.
KT_CLEAR = 0.65      # a day at or above this is counted as clear
KT_OVERCAST = 0.25   # a day at or below this is counted as overcast

# Physical limits for the integrity check. The upper limit is above the solar constant, so it
# catches a broken unit or a failed gap-filling rather than an unusual bright half-hour.
LIMITS = (0.0, 1400.0)

# Reference: MeteoSwiss Laegern, 2.5 km from the tower. Written by 10_METEO/10_REFERENCE.
REFPATH = (r"F:\Sync\luhk_work\dev-data\datasets-data\dataset_ch-lae_flux_product-data"
           r"\workflow\10_METEO\10_REFERENCE\MeteoSwiss_LAE_30MIN_2004-2025.parquet")
REFCOL = "SW_IN_LAE_MS"
# That station's radiation instrumentation was rebuilt in October 2010 and its global radiation
# steps by about 5 % there. It is a property of the reference, not of the tower - see
# 30_PRODUCTS/RADIATION_SENSOR_CONTINUITY.ipynb - and the comparison section splits on it rather
# than averaging across it.
REF_STEP_YEAR = 2011  # first full year after the reference station changed

# The appendix draws two figures per year. Switch it off for a quick run.
SHOW_PER_YEAR_DETAIL = True

Imports

import calendar
import importlib.metadata
import textwrap
import warnings
from datetime import datetime
from pathlib import Path

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec
from matplotlib.colors import Normalize
from scipy.stats import kendalltau, theilslopes

import diive as dv
from diive.core.io.files import save_parquet, load_parquet
from diive.core.plotting.cumulative import CumulativeYear
from diive.core.plotting.bar import LongtermAnomaliesYear

warnings.filterwarnings(action='ignore', category=FutureWarning)
warnings.filterwarnings(action='ignore', category=UserWarning)
version_diive = importlib.metadata.version("diive")
print(f"diive version: v{version_diive}")
diive version: v0.91.0

Helpers

def per_year(s, how='mean'):
    """Aggregate `s` to one value per year, indexed by the year number instead of by a timestamp."""
    out = s.resample('YE').agg(how)
    out.index = out.index.year
    out.index.name = 'YEAR'
    return out


def per_year_month(s, how='mean', month_names=True):
    """Aggregate `s` to a table of YEAR (rows) by MONTH (columns)."""
    out = s.groupby([s.index.year, s.index.month]).agg(how).unstack()
    out.index.name = 'YEAR'
    if month_names:
        out.columns = [calendar.month_abbr[m] for m in out.columns]
    return out


def tabcap(text, width=100):
    """Print a table caption. Called by `styled`, so no table can be shown without one."""
    print(textwrap.fill(f"Table — {text}", width) + "\n")


def figcap(fig, text, width=125):
    """Place a caption under a figure. Call after the last axes of that figure is drawn.

    A figure drawn with a layout engine makes room for a caption by itself. The figures pandas and
    diive build have no engine, and a caption placed in them lands on top of the tick labels. For
    those the figure is extended downwards by the height of the caption and every axes is moved up
    by the same amount, so the drawing keeps its size and position and the caption gets a free
    strip below it.
    """
    width = min(width, max(40, int(14.5 * fig.get_size_inches()[0])))
    caption = textwrap.fill(f"Figure — {text}", width)
    # An engine that still lays the figure out at draw time can make room for a caption itself.
    # plt.tight_layout() does NOT leave one: it executes once and leaves a PlaceHolderLayoutEngine
    # that never runs again, so a caption handed to supxlabel there lands on top of the tick
    # labels. Those figures take the manual branch below.
    _engine = fig.get_layout_engine()
    if _engine is not None and type(_engine).__name__ != 'PlaceHolderLayoutEngine':
        fig.supxlabel(caption, fontsize=9, ha='left', x=0.005)
        return
    lines = len(caption.splitlines())
    extra = 0.17 * lines + 0.12  # inches, one caption line is about 0.17 in at fontsize 9
    width_in, height_in = fig.get_size_inches()
    fig.set_size_inches(width_in, height_in + extra)
    keep = height_in / (height_in + extra)
    offset = extra / (height_in + extra)
    for ax in fig.axes:
        pos = ax.get_position()
        ax.set_position([pos.x0, offset + pos.y0 * keep, pos.width, pos.height * keep])
    fig.text(0.005, 0.01, caption, fontsize=9, ha='left', va='bottom')


def window(tsmid):
    """The averaging window of a 30MIN record stored on TIMESTAMP_MIDDLE, as text."""
    start = tsmid - pd.Timedelta('15min')
    end = tsmid + pd.Timedelta('15min')
    return f"{start:%d %b %Y}, {start:%H:%M} to {end:%H:%M}"


def styled(data, caption, fmt="{:.1f}", subset=None, cmap="YlOrRd", axis=0, center=False):
    """`data` as a table with a caption, fixed decimals and a colour scale over its values.

    The default colour map is sequential rather than diverging: radiation has a physical zero and
    no meaningful midpoint, so a red/blue scale would imply one. `center` switches to a symmetric
    scale for the anomaly tables, which do have a midpoint.
    """
    numeric = [c for c in data.columns if pd.api.types.is_numeric_dtype(data[c])]
    fmt = {c: fmt for c in numeric} if isinstance(fmt, str) else {
        c: f for c, f in fmt.items() if c in numeric}
    tabcap(caption)
    styler = data.style.format(fmt, na_rep="-")
    if cmap is None:
        return styler
    limits = {}
    if center:
        values = data[subset] if subset is not None else data
        absmax = np.nanmax(np.abs(values.to_numpy(dtype=float)))
        limits = dict(vmin=-absmax, vmax=absmax)
    return styler.background_gradient(cmap=cmap, subset=subset, axis=axis,
                                      text_color_threshold=0.4, **limits)


def anomaly_bars(styler, column):
    """Draw in-cell bars for an anomaly column, in the colours of the anomaly plots."""
    return styler.bar(subset=[column], align='zero', color=['#5C6BC0', '#FFA726'])


def trend(yearly):
    """Theil-Sen slope per decade of a yearly series, with its 95 % interval and Kendall's tau.

    Theil-Sen rather than least squares because a single extreme year does not move it, and
    Kendall's tau because it tests a monotonic trend without assuming normal residuals.
    """
    years = yearly.index.to_numpy(dtype=float)
    values = yearly.to_numpy(dtype=float)
    slope, intercept, low, high = theilslopes(values, years, alpha=0.95)
    tau, pvalue = kendalltau(years, values)
    return dict(slope=slope * 10, low=low * 10, high=high * 10, tau=tau, pvalue=pvalue,
                fit=pd.Series(intercept + slope * years, index=yearly.index))


def longest_spell(mask):
    """Length in days and start date of the longest run of True in a daily boolean series."""
    blocks = mask.ne(mask.shift()).cumsum()
    runs = mask[mask].groupby(blocks[mask]).size()
    if runs.empty:
        return 0, pd.NaT
    return int(runs.max()), mask.index[blocks == runs.idxmax()][0]


def year_axis(ax):
    """Integer year ticks. Matplotlib otherwise labels a numeric year axis with half-years."""
    ax.xaxis.set_major_locator(plt.MaxNLocator(integer=True))
    return ax


def to_energy(s):
    """Half-hourly W m-2 summed to MJ m-2 over whatever period `s` covers.

    One half-hourly mean of 1 W m-2 is 1800 J m-2, so the sum of the half-hours of a day times
    1800 and divided by 1e6 is that day's total in MJ m-2. Reported this way because a *mean*
    irradiance over a day mixes the state of the sky with the length of the day, and a total does
    not.
    """
    return s.sum() * 1800 / 1e6


Load data

# Gap-filled SW_IN produced by notebook 10_METEO/30_PRODUCTS/01. Data files live in the external
# (untracked) data folder, mirroring the workflow tree of this repo.
SOURCEDIR = (r"F:\Sync\luhk_work\dev-data\datasets-data\dataset_ch-lae_flux_product-data"
             r"\workflow\10_METEO\30_PRODUCTS")
FILENAME = r"01_METEO_SW_IN_GAPFILLED_2004-2025.parquet"
FILEPATH = Path(SOURCEDIR) / FILENAME

df = load_parquet(filepath=FILEPATH)
print(f"loaded {FILENAME}: {len(df):,} records, {df.index[0]} -> {df.index[-1]}")

# The source product starts in 2004, this overview covers FIRST_YEAR to LAST_YEAR.
df = df[(df.index.year >= FIRST_YEAR) & (df.index.year <= LAST_YEAR)].copy()
print(f"kept {FIRST_YEAR}-{LAST_YEAR}: {len(df):,} records")
df
  > Loaded .parquet file
F:\Sync\luhk_work\dev-data\datasets-data\dataset_ch-lae_flux_product-data\workflow\10_METEO\30_PRODU
CTS\01_METEO_SW_IN_GAPFILLED_2004-2025.parquet (0.031 seconds).

loaded 01_METEO_SW_IN_GAPFILLED_2004-2025.parquet: 385,728 records, 2004-01-01 00:15:00 -> 2025-12-31 23:45:00
kept 2006-2025: 350,640 records
SW_IN_T1_47_1_gfXG FLAG_SW_IN_T1_47_1_ISFILLED
TIMESTAMP_MIDDLE
2006-01-01 00:15:00 0.0 0
2006-01-01 00:45:00 0.0 0
2006-01-01 01:15:00 0.0 0
2006-01-01 01:45:00 0.0 0
2006-01-01 02:15:00 0.0 0
... ... ...
2025-12-31 21:45:00 0.0 0
2025-12-31 22:15:00 0.0 0
2025-12-31 22:45:00 0.0 0
2025-12-31 23:15:00 0.0 0
2025-12-31 23:45:00 0.0 0

350640 rows × 2 columns

Integrity checks

# The overview describes the product, so it starts by checking that the product is what everything
# below assumes: one continuous 30MIN record, no duplicates, no gaps, nothing outside the physical
# limits, and complete years. A silent violation here would be reported as a result.
_issues = []
if df.index.duplicated().any():
    _issues.append(f"{int(df.index.duplicated().sum())} duplicate timestamps")
_steps = df.index.to_series().diff().dropna()
if not (_steps == pd.Timedelta('30min')).all():
    _issues.append(f"{int((_steps != pd.Timedelta('30min')).sum())} index gaps")
if df[varname].isna().any():
    _issues.append(f"{int(df[varname].isna().sum())} missing values")
if df[flagname].isna().any():
    _issues.append(f"{int(df[flagname].isna().sum())} missing flags")
_out = df[varname][(df[varname] < LIMITS[0]) | (df[varname] > LIMITS[1])]
if len(_out):
    _issues.append(f"{len(_out)} values outside {LIMITS} {units_plain}")
_expected = {y: 17568 if calendar.isleap(y) else 17520 for y in range(FIRST_YEAR, LAST_YEAR + 1)}
_counts = df[varname].groupby(df.index.year).size()
_short = {y: int(n) for y, n in _counts.items() if n != _expected[y]}
if _short:
    _issues.append(f"incomplete years: {_short}")
if set(df[flagname].unique()) - set(FLAG_LEGEND):
    _issues.append(f"unknown flag codes: {sorted(set(df[flagname].unique()) - set(FLAG_LEGEND))}")

print(f"records: {len(df):,}   years: {FIRST_YEAR}-{LAST_YEAR}")
print(f"range:   {df[varname].min():.1f} to {df[varname].max():.1f} {units_plain}")
assert not _issues, "the product is not what this overview assumes: " + "; ".join(_issues)
print("Integrity checks passed.")
records: 350,640   years: 2006-2025
range:   0.0 to 1118.7 W m-2
Integrity checks passed.

Physical checks

Two properties this variable has that a range check cannot express: nights are exactly zero, and almost nothing exceeds what the sun can deliver. Both are asserted on export by the notebook that builds the product; they are repeated here because this notebook is read on its own.

# Two properties this variable has that a range check cannot express, and that the product notebook
# asserts on export. They are re-checked here because this notebook is read on its own.
POTRAD = dv.variables.potrad(timestamp_index=df.index, lat=SITE_LAT, lon=SITE_LON,
                             utc_offset=TIMEZONE_OFFSET_TO_UTC_HOURS)
NIGHT = POTRAD <= 0
DAYLIGHT = POTRAD > DAYLIGHT_POTRAD

_night_nonzero = int((df.loc[NIGHT, varname] != 0).sum())
print(f"nighttime half-hours:            {int(NIGHT.sum()):,}")
print(f"  of which not exactly zero:     {_night_nonzero}")
assert _night_nonzero == 0, "the product carries non-zero radiation at night"

# Values above the clear-sky ceiling are physically possible - a bright cloud edge can reflect
# extra light onto the sensor for a few minutes - but only a handful and only just above it.
_kt = (df[varname] / POTRAD).where(DAYLIGHT)
_above = int((_kt > 1).sum())
print(f"\ndaylight half-hours:             {int(DAYLIGHT.sum()):,}")
print(f"  above potential radiation:     {_above} "
      f"({100 * _above / int(DAYLIGHT.sum()):.3f} % - cloud enhancement)")
print(f"  median clearness index:        {_kt.median():.3f}")
assert _above / int(DAYLIGHT.sum()) < 0.01, (
    "more than 1 % of daylight half-hours exceed potential radiation - that is not cloud "
    "enhancement, it is a calibration or a timestamp problem")
print("\nPhysical checks passed.")
nighttime half-hours:            167,495
  of which not exactly zero:     0

daylight half-hours:             174,717
  above potential radiation:     245 (0.140 % - cloud enhancement)
  median clearness index:        0.409

Physical checks passed.

Derived series

Four series the rest of the notebook uses, derived once. daily is where the radiation-specific quantities live: the daily total in MJ m⁻², what the sun could have delivered that day, and the ratio of the two.

# Series that several sections need, derived once here.
#
# `series`          the exported product, complete
# `series_measured` measured records only, which is what the extremes are read from
# `daylight`        daylight half-hours of the product, the basis of every distribution below
# `daily`           daily totals in MJ m-2, the daily clearness index, and the filled share
series = df[varname].copy()
series_measured = series.where(df[flagname] == 0)
daylight = series.where(DAYLIGHT)

xlabel = f"{var} ({units})"
xlim = [0, float(series.max())]

# Daily totals rather than daily means: a mean over a winter day averages in a long night and is
# not comparable with a summer day. The clearness index divides the day's total by what the sun
# could have delivered, which removes the season from the number.
daily = pd.DataFrame({
    'total_MJ': series.resample('D').apply(to_energy),
    'potential_MJ': POTRAD.resample('D').apply(to_energy),
    'peak': series.resample('D').max(),
    'filled_share': (df[flagname] > 0).resample('D').mean(),
})
daily['kt'] = daily['total_MJ'] / daily['potential_MJ']
daily['measured_day'] = daily['filled_share'] == 0

print(f"series:          {len(series):,} records, {series.notna().sum():,} present")
print(f"measured only:   {series_measured.notna().sum():,} records "
      f"({100 * series_measured.notna().mean():.2f} %)")
print(f"daylight only:   {daylight.notna().sum():,} records "
      f"({100 * daylight.notna().mean():.1f} %)")
print(f"daily:           {len(daily):,} days, "
      f"{int(daily['measured_day'].sum()):,} of them entirely measured")

tabcap("summary of the daily table. `total_MJ` is the energy that arrived that day, "
       "`potential_MJ` what the sun could have delivered, and `kt` their ratio - the only one of "
       "the three that is comparable between a June day and a December one")
daily.describe().round(2)
series:          350,640 records, 350,640 present
measured only:   346,527 records (98.83 %)
daylight only:   174,717 records (49.8 %)
daily:           7,305 days, 6,962 of them entirely measured
Table — summary of the daily table. `total_MJ` is the energy that arrived that day, `potential_MJ`
what the sun could have delivered, and `kt` their ratio - the only one of the three that is
comparable between a June day and a December one
total_MJ potential_MJ peak filled_share kt
count 7305.00 7305.00 7305.00 7305.00 7305.00
mean 12.62 25.83 570.77 0.01 0.46
std 9.00 11.72 297.40 0.10 0.23
min 0.26 9.02 17.66 0.00 0.02
25% 4.60 14.11 317.96 0.00 0.26
50% 10.69 26.16 595.40 0.00 0.48
75% 20.08 37.52 849.09 0.00 0.67
max 32.54 42.16 1118.66 1.00 0.90


Coverage and provenance

How much of the product is measured and where the filled records sit. This comes before the statistics because it says how far each year can be read as a measurement.

# How much of each year was measured, and by which method the rest was filled. Every statistic
# below is computed on the full series, so this table says how far each year can be read as a
# measurement. The longest uninterrupted run of filled records is listed separately: a year filled
# in many short gaps is not the same as a year with one long outage.
#
# Code 3 is counted apart from the other fills. A nighttime gap set to zero is not an estimate -
# the sun is below the horizon - so the "modelled" column is the share a model actually produced.
_isfilled = df[flagname] > 0
_ismodelled = df[flagname].isin([1, 2])

coverage = pd.DataFrame({"records": per_year(series, 'count')})
for _flagcode, _label in FLAG_LEGEND.items():
    if _flagcode == 0:
        continue
    coverage[_label] = per_year(df[flagname].eq(_flagcode).astype(float), 'sum')
coverage["measured (%)"] = per_year(df[flagname].eq(0).astype(float), 'mean') * 100
coverage["modelled (%)"] = per_year(_ismodelled.astype(float), 'mean') * 100

_blocks = _isfilled.ne(_isfilled.shift()).cumsum()[_isfilled]
_lengths = _isfilled[_isfilled].groupby(_blocks).size() * 0.5  # 30MIN records -> hours
_years = df.index[_isfilled].to_series().groupby(_blocks.to_numpy()).first().dt.year
coverage["longest gap (h)"] = (pd.Series(_lengths.to_numpy(), index=_years.to_numpy())
                               .groupby(level=0).max())
coverage = coverage.fillna(0)

_fmt = {c: "{:.0f}" for c in coverage.columns}
_fmt.update({"measured (%)": "{:.1f}", "modelled (%)": "{:.2f}", "longest gap (h)": "{:.1f}"})
display(styled(coverage,
               caption=f"coverage of the {var} product per year: how many records were measured, how "
                       f"many were filled by each method, and the longest uninterrupted filled run. "
                       f"The nighttime-zero code is a large and steady share of every year because "
                       f"it covers any gap falling after dark; the modelled column is what a model "
                       f"actually produced",
               fmt=_fmt, subset=["modelled (%)", "longest gap (h)"], cmap="Reds"))

print(f"Measured over {FIRST_YEAR}-{LAST_YEAR}:   {100 * df[flagname].eq(0).mean():.2f} %")
print(f"Not modelled (codes {NOT_MODELLED}): {100 * df[flagname].isin(NOT_MODELLED).mean():.2f} %")
print(f"Modelled (codes 1 and 2):     {100 * _ismodelled.mean():.2f} %")
Table — coverage of the SW_IN product per year: how many records were measured, how many were filled
by each method, and the longest uninterrupted filled run. The nighttime-zero code is a large and
steady share of every year because it covers any gap falling after dark; the modelled column is what
a model actually produced
  records XGBoost model (daytime gap) timestamp-only fallback model (daytime gap) nighttime gap, set to zero by physics measured (%) modelled (%) longest gap (h)
YEAR
2006 17520 17 0 30 99.7 0.10 7.5
2007 17520 15 0 16 99.8 0.09 1.0
2008 17568 27 0 28 99.7 0.15 2.0
2009 17520 310 0 221 97.0 1.77 234.0
2010 17520 119 0 62 99.0 0.68 78.5
2011 17520 8 9 12 99.8 0.10 5.0
2012 17568 637 29 609 92.7 3.79 312.0
2013 17520 48 0 30 99.6 0.27 26.5
2014 17520 5 0 12 99.9 0.03 1.0
2015 17520 15 0 9 99.9 0.09 1.0
2016 17568 374 5 617 94.3 2.16 494.0
2017 17520 0 0 0 100.0 0.00 0.0
2018 17520 2 0 0 100.0 0.01 1.0
2019 17520 312 0 447 95.7 1.78 379.5
2020 17568 0 0 0 100.0 0.00 0.0
2021 17520 6 0 0 100.0 0.03 2.5
2022 17520 0 0 0 100.0 0.00 0.0
2023 17520 9 0 0 99.9 0.05 2.5
2024 17568 73 0 0 99.6 0.42 15.5
2025 17520 0 0 0 100.0 0.00 0.0
Measured over 2006-2025:   98.83 %
Not modelled (codes [0, 3]): 99.42 %
Modelled (codes 1 and 2):     0.58 %

Modelled share per year and month

# Where the modelled records sit. Only codes 1 and 2 are drawn: the nighttime-zero code follows
# the seasons rather than the faults, and including it would put a band across every winter and
# hide the outages this figure exists to locate.
fig, ax = plt.subplots(figsize=(6, 12), dpi=72, layout="constrained")
_modelled_pct = (_ismodelled.astype(float) * 100).rename("modelled (%)")
dv.plotting.HeatmapYearMonth(series=_modelled_pct, agg='mean').plot(
    ax=ax, cmap="Reds", cb_digits_after_comma=1, zlabel="modelled (%)")

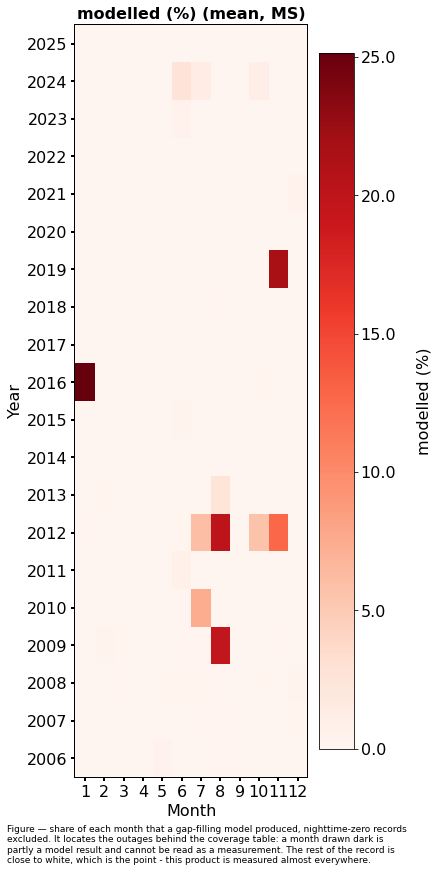

figcap(fig, f"share of each month that a gap-filling model produced, nighttime-zero records "
            f"excluded. It locates the outages behind the coverage table: a month drawn dark is "
            f"partly a model result and cannot be read as a measurement. The rest of the record "
            f"is close to white, which is the point - this product is measured almost everywhere.")


Summary statistics

Overall means

# Two summaries of the same record, because for radiation they answer different questions.
#
# The mean irradiance is what the sensor reported, averaged over every half-hour including the
# nights, so it is as much a statement about day length as about the sky. The annual total is the
# energy that actually arrived over the year and is the number a user of this product usually
# wants. Both are means of yearly values, so every year carries the same weight.
_yearly_avg = series.resample('YE').mean()
_yearly_total = series.resample('YE').apply(to_energy)

print(f"Mean irradiance (mean of yearly means): {_yearly_avg.mean():.2f} {units_plain} "
      f"+/- {_yearly_avg.std():.2f} SD between years")
print(f"Mean over all records:                  {series.mean():.2f} {units_plain}")
print()
print(f"Annual total (mean of yearly totals):   {_yearly_total.mean():.0f} MJ m-2 "
      f"+/- {_yearly_total.std():.0f} SD between years")
print(f"  the same in kWh m-2:                  {_yearly_total.mean() / 3.6:.0f} kWh m-2")
print(f"  range over {FIRST_YEAR}-{LAST_YEAR}:  {_yearly_total.min():.0f} to "
      f"{_yearly_total.max():.0f} MJ m-2 "
      f"({100 * (_yearly_total.max() / _yearly_total.min() - 1):.1f} % between the two)")
Mean irradiance (mean of yearly means): 146.03 W m-2 +/- 7.91 SD between years
Mean over all records:                  146.03 W m-2

Annual total (mean of yearly totals):   4608 MJ m-2 +/- 248 SD between years
  the same in kWh m-2:                  1280 kWh m-2
  range over 2006-2025:  4214 to 5082 MJ m-2 (20.6 % between the two)

Year by year

# One table for the year-by-year view. Radiation gets its total as well as its mean, because the
# two rank years differently in a year with an unusual seasonal distribution, and the day-type
# counts detailed further below.
ym = per_year(series, 'mean')
yt = per_year(series, to_energy)
kt_year = per_year(daily['total_MJ'], 'sum') / per_year(daily['potential_MJ'], 'sum')

_daily_year = daily.groupby(daily.index.year)
yearly = pd.DataFrame({
    f"mean ({units_plain})": ym,
    "annual total (MJ m-2)": yt,
    "clearness index": kt_year,
    "measured peak (W m-2)": per_year(series_measured, 'max'),
    "brightest day (MJ m-2)": _daily_year['total_MJ'].max(),
    f"clear days (kt > {KT_CLEAR})": _daily_year['kt'].apply(lambda s: int((s > KT_CLEAR).sum())),
    f"overcast days (kt < {KT_OVERCAST})":
        _daily_year['kt'].apply(lambda s: int((s < KT_OVERCAST).sum())),
    "modelled (%)": coverage["modelled (%)"],
})
yearly["anomaly (MJ m-2)"] = yearly["annual total (MJ m-2)"] - yearly["annual total (MJ m-2)"].mean()
yearly["rank"] = yearly["annual total (MJ m-2)"].rank(ascending=False).astype(int)
yearly.index.name = "YEAR"

_fmt = {f"mean ({units_plain})": "{:.1f}", "annual total (MJ m-2)": "{:.0f}",
        "clearness index": "{:.3f}", "measured peak (W m-2)": "{:.0f}",
        "brightest day (MJ m-2)": "{:.1f}", "anomaly (MJ m-2)": "{:+.0f}",
        "modelled (%)": "{:.2f}", "rank": "{:.0f}",
        f"clear days (kt > {KT_CLEAR})": "{:.0f}",
        f"overcast days (kt < {KT_OVERCAST})": "{:.0f}"}
_styler = styled(yearly,
                 caption=f"{var} year by year: the mean irradiance, the energy that arrived, the "
                         f"clearness index of the whole year, the extremes it reached, the two "
                         f"day-type counts detailed below, and how much of it a model produced. "
                         f"Rank 1 is the brightest year",
                 fmt=_fmt, subset=["annual total (MJ m-2)"], cmap="YlOrRd")
display(anomaly_bars(_styler, "anomaly (MJ m-2)"))
Table — SW_IN year by year: the mean irradiance, the energy that arrived, the clearness index of the
whole year, the extremes it reached, the two day-type counts detailed below, and how much of it a
model produced. Rank 1 is the brightest year
  mean (W m-2) annual total (MJ m-2) clearness index measured peak (W m-2) brightest day (MJ m-2) clear days (kt > 0.65) overcast days (kt < 0.25) modelled (%) anomaly (MJ m-2) rank
YEAR
2006 136.4 4302 0.456 1077 31.6 80 87 0.10 -306 18
2007 142.3 4488 0.476 1032 30.6 100 100 0.09 -121 15
2008 137.3 4343 0.460 1033 30.3 85 94 0.15 -266 17
2009 142.5 4493 0.476 1061 31.6 82 89 1.77 -115 14
2010 133.6 4214 0.447 1028 31.1 70 109 0.68 -394 20
2011 150.5 4747 0.503 1101 31.3 114 86 0.10 +139 7
2012 142.3 4500 0.477 1051 31.0 95 91 3.79 -108 13
2013 138.2 4358 0.462 1073 32.5 103 106 0.27 -251 16
2014 145.3 4582 0.486 1067 32.2 103 89 0.03 -26 11
2015 156.3 4928 0.522 1023 32.2 137 76 0.09 +320 3
2016 143.8 4548 0.482 1100 31.6 110 79 2.16 -60 12
2017 153.9 4852 0.514 1111 32.2 109 86 0.00 +243 4
2018 152.7 4817 0.511 1049 31.2 107 86 0.01 +208 5
2019 151.5 4777 0.506 1088 32.0 122 89 1.78 +168 6
2020 156.3 4941 0.523 1072 31.6 135 86 0.00 +333 2
2021 147.2 4644 0.492 1119 32.5 101 89 0.03 +35 9
2022 161.1 5082 0.539 1088 32.1 130 63 0.00 +473 1
2023 146.4 4617 0.489 1067 31.7 97 92 0.05 +9 10
2024 133.6 4226 0.448 1065 30.6 75 96 0.42 -382 19
2025 149.3 4709 0.499 1087 31.4 107 78 0.00 +101 8

Period means

# Means of the yearly values, on the same basis as the overall means above. The record is split
# into the most recent N_RECENT_YEARS and everything before them, and the earlier period is the
# reference the recent one is compared against. The split follows the record, so it moves on as
# the dataset grows. Both boundary years are included.
_recent_from = LAST_YEAR - N_RECENT_YEARS + 1
_recent = slice(_recent_from, LAST_YEAR)
_earlier = slice(FIRST_YEAR, _recent_from - 1)

_rows = {}
for _label, _s in [(f"mean irradiance ({units_plain})", ym),
                   ("annual total (MJ m-2)", yt),
                   ("clearness index", kt_year)]:
    _a, _b = _s.loc[_earlier].mean(), _s.loc[_recent].mean()
    _rows[_label] = {f"{FIRST_YEAR}-{_recent_from - 1}": _a,
                     f"{_recent_from}-{LAST_YEAR}": _b,
                     "difference": _b - _a,
                     "difference (%)": 100 * (_b / _a - 1)}
periods = pd.DataFrame.from_dict(_rows, orient='index')

display(styled(periods,
               caption=f"the most recent {N_RECENT_YEARS} years against every year before them, on "
                       f"the three summaries above. The percentage column is the one to read: the "
                       f"three rows are in different units and a change in the clearness index is "
                       f"the part that is not explained by the sun",
               fmt={f"{FIRST_YEAR}-{_recent_from - 1}": "{:.3f}",
                    f"{_recent_from}-{LAST_YEAR}": "{:.3f}",
                    "difference": "{:+.3f}", "difference (%)": "{:+.2f}"},
               subset=["difference (%)"], cmap="RdBu_r", center=True))

print(f"The clearness index removes the sun from the comparison: it is the same denominator in "
      f"both periods, so a change in it is a change in the atmosphere or in the sensor. Notebook "
      f"01 and RADIATION_SENSOR_CONTINUITY together attribute about 3 % of the tower record's "
      f"level to the sensor from 2013, which is the same order as the difference above - read the "
      f"two together rather than either alone.")
Table — the most recent 10 years against every year before them, on the three summaries above. The
percentage column is the one to read: the three rows are in different units and a change in the
clearness index is the part that is not explained by the sun
  2006-2015 2016-2025 difference difference (%)
mean irradiance (W m-2) 142.479 149.591 +7.112 +4.99
annual total (MJ m-2) 4495.626 4721.253 +225.627 +5.02
clearness index 0.477 0.500 +0.024 +5.01
The clearness index removes the sun from the comparison: it is the same denominator in both periods, so a change in it is a change in the atmosphere or in the sensor. Notebook 01 and RADIATION_SENSOR_CONTINUITY together attribute about 3 % of the tower record's level to the sensor from 2013, which is the same order as the difference above - read the two together rather than either alone.

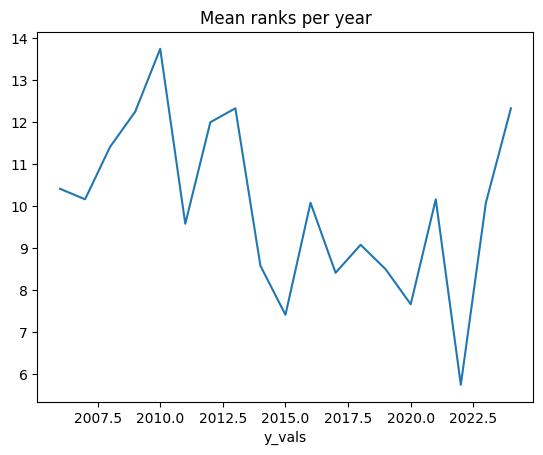

Brightest and dullest years

# The full ranking is the `rank` column of the yearly table above; this lists the two ends of it.
_by_total = yearly.sort_values("annual total (MJ m-2)", ascending=False)
_cols = ["annual total (MJ m-2)", f"mean ({units_plain})", "clearness index",
         f"clear days (kt > {KT_CLEAR})", f"overcast days (kt < {KT_OVERCAST})", "modelled (%)"]
display(styled(_by_total.head(N_RANKED)[_cols],
               caption=f"the {N_RANKED} brightest years by annual total",
               fmt={"annual total (MJ m-2)": "{:.0f}", f"mean ({units_plain})": "{:.1f}",
                    "clearness index": "{:.3f}", "modelled (%)": "{:.2f}",
                    f"clear days (kt > {KT_CLEAR})": "{:.0f}",
                    f"overcast days (kt < {KT_OVERCAST})": "{:.0f}"}, cmap="YlOrRd"))
display(styled(_by_total.tail(N_RANKED)[_cols].iloc[::-1],
               caption=f"the {N_RANKED} dullest years by annual total",
               fmt={"annual total (MJ m-2)": "{:.0f}", f"mean ({units_plain})": "{:.1f}",
                    "clearness index": "{:.3f}", "modelled (%)": "{:.2f}",
                    f"clear days (kt > {KT_CLEAR})": "{:.0f}",
                    f"overcast days (kt < {KT_OVERCAST})": "{:.0f}"}, cmap="Blues_r"))
Table — the 5 brightest years by annual total
  annual total (MJ m-2) mean (W m-2) clearness index clear days (kt > 0.65) overcast days (kt < 0.25) modelled (%)
YEAR
2022 5082 161.1 0.539 130 63 0.00
2020 4941 156.3 0.523 135 86 0.00
2015 4928 156.3 0.522 137 76 0.09
2017 4852 153.9 0.514 109 86 0.00
2018 4817 152.7 0.511 107 86 0.01
Table — the 5 dullest years by annual total
  annual total (MJ m-2) mean (W m-2) clearness index clear days (kt > 0.65) overcast days (kt < 0.25) modelled (%)
YEAR
2010 4214 133.6 0.447 70 109 0.68
2024 4226 133.6 0.448 75 96 0.42
2006 4302 136.4 0.456 80 87 0.10
2008 4343 137.3 0.460 85 94 0.15
2013 4358 138.2 0.462 103 106 0.27


Seasonality

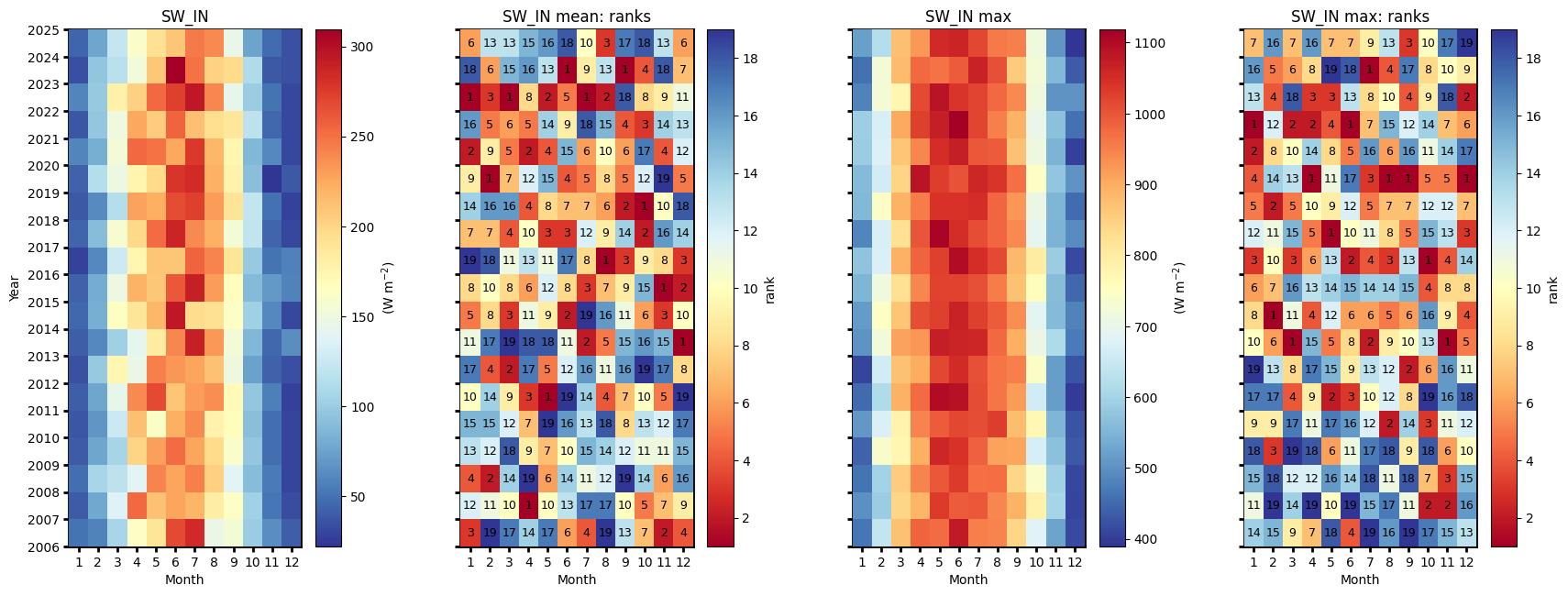

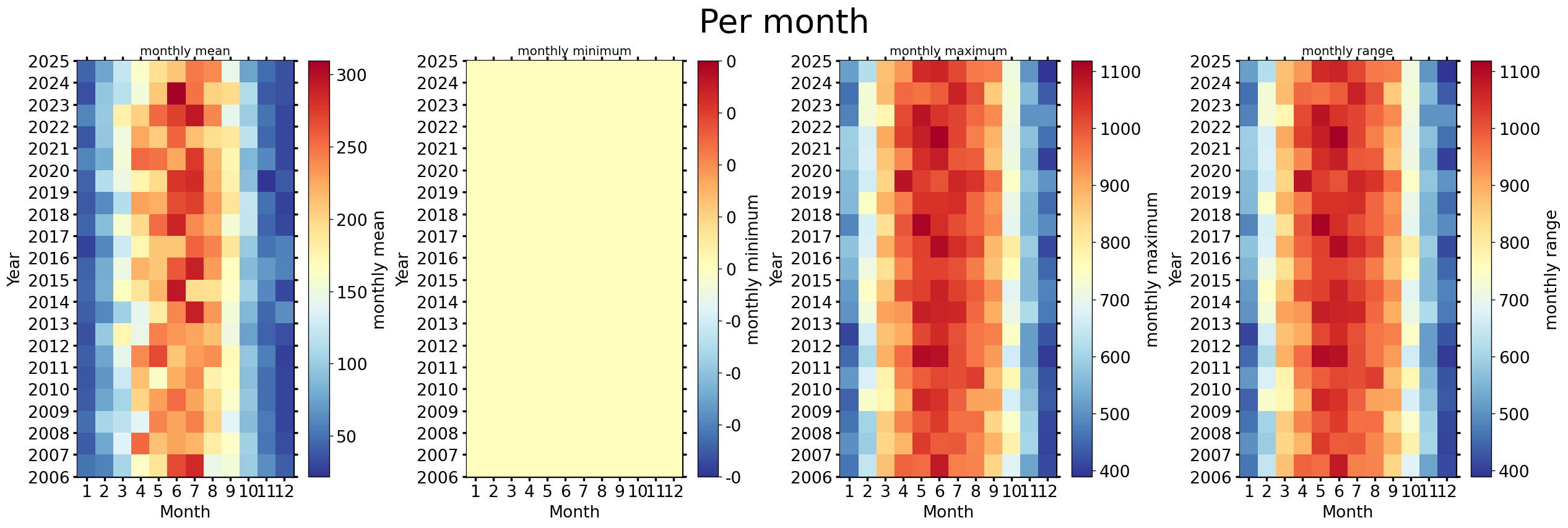

Monthly totals per year

# Monthly totals rather than monthly means, for the reason given in About: a mean over a winter
# month averages in long nights. The colour scale runs over the whole table, so a month can be
# compared against every other month as well as against the same month in other years.
monthly_total = daily['total_MJ'].groupby(
    [daily.index.year, daily.index.month]).sum().unstack()
monthly_total.index.name = 'YEAR'
monthly_total.columns = [calendar.month_abbr[m] for m in monthly_total.columns]

monthly_avg = per_year_month(series, 'mean')
monthly_by_number = per_year_month(series, 'mean', month_names=False)

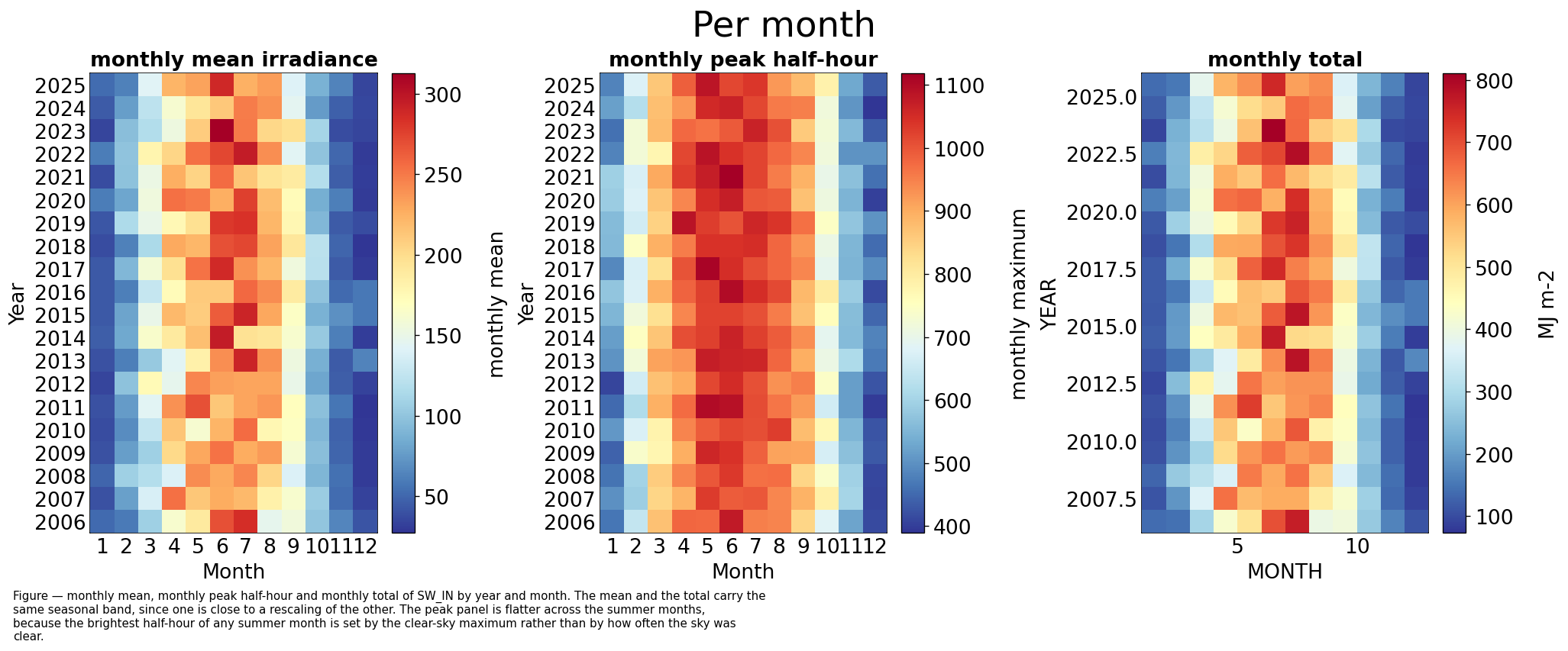

display(styled(monthly_total,
               caption=f"monthly {var} totals (MJ m-2), one row per year. The seasonal cycle "
                       f"dominates the table, which is the point: a July and a December of the "
                       f"same year differ by an order of magnitude, and a July compared against "
                       f"other Julys is the only comparison that means anything",
               fmt="{:.0f}", axis=None, cmap="YlOrRd"))
Table — monthly SW_IN totals (MJ m-2), one row per year. The seasonal cycle dominates the table,
which is the point: a July and a December of the same year differ by an order of magnitude, and a
July compared against other Julys is the only comparison that means anything
  Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
YEAR
2006 138 144 287 423 507 697 763 394 405 269 167 109
2007 108 188 367 660 569 590 590 490 423 280 135 89
2008 130 269 316 361 648 592 655 546 362 243 141 80
2009 107 187 285 522 615 657 609 629 417 258 126 80
2010 100 164 339 554 433 579 688 474 435 245 126 78
2011 108 185 386 621 721 553 617 635 443 260 146 73
2012 94 246 468 380 654 605 619 619 388 218 119 90
2013 108 148 275 372 491 625 779 641 398 232 116 172
2014 122 199 439 492 584 765 524 518 423 275 159 82
2015 115 195 400 572 561 682 778 616 435 237 182 155
2016 117 153 340 451 564 547 689 647 490 265 132 155
2017 117 221 423 512 677 745 643 593 402 323 114 82
2018 102 150 305 592 595 695 731 621 496 325 128 76
2019 114 278 401 456 528 724 758 594 461 246 115 102
2020 160 205 415 658 670 585 741 584 451 231 159 82
2021 100 237 406 587 550 663 574 522 488 315 117 84
2022 161 239 479 528 680 708 790 644 374 267 131 82
2023 92 231 312 398 561 810 669 544 511 297 98 93
2024 119 192 328 418 518 548 666 641 376 204 122 94
2025 139 151 383 579 622 749 603 627 364 235 164 93

Climatology per calendar month

# The same monthly values read the other way round: what each calendar month looks like across the
# record, and which year holds its extremes. The peak is a half-hourly measured value, so it is far
# above any monthly mean.
_by_month = daily.groupby(daily.index.month)
_tot_by_month = monthly_total.copy()
_tot_by_month.columns = range(1, 13)

climatology = pd.DataFrame({
    "mean total (MJ m-2)": _tot_by_month.mean(),
    "lowest total (MJ m-2)": _tot_by_month.min(),
    "lowest in": _tot_by_month.idxmin(),
    "highest total (MJ m-2)": _tot_by_month.max(),
    "highest in": _tot_by_month.idxmax(),
    "mean clearness index": _by_month['kt'].mean(),
    f"mean ({units_plain})": monthly_by_number.mean(),
    "measured peak (W m-2)": series_measured.groupby(series_measured.index.month).max(),
})
climatology.index = [calendar.month_abbr[m] for m in climatology.index]
climatology.index.name = "MONTH"

display(styled(climatology,
               caption=f"each calendar month across {FIRST_YEAR}-{LAST_YEAR}: its mean total, the "
                       f"brightest and dullest occurrence of it and the year each fell in, its "
                       f"mean clearness index, and the highest half-hourly value ever measured in "
                       f"it. The clearness index is the column that is not dominated by the "
                       f"season, and it is flatter through the year than the totals are",
               fmt={"mean total (MJ m-2)": "{:.0f}", "lowest total (MJ m-2)": "{:.0f}",
                    "highest total (MJ m-2)": "{:.0f}", "lowest in": "{:.0f}",
                    "highest in": "{:.0f}", "mean clearness index": "{:.3f}",
                    f"mean ({units_plain})": "{:.1f}", "measured peak (W m-2)": "{:.0f}"},
               subset=["mean total (MJ m-2)"], cmap="YlOrRd"))
Table — each calendar month across 2006-2025: its mean total, the brightest and dullest occurrence
of it and the year each fell in, its mean clearness index, and the highest half-hourly value ever
measured in it. The clearness index is the column that is not dominated by the season, and it is
flatter through the year than the totals are
  mean total (MJ m-2) lowest total (MJ m-2) lowest in highest total (MJ m-2) highest in mean clearness index mean (W m-2) measured peak (W m-2)
MONTH
Jan 118 92 2023 161 2022 0.349 43.9 592
Feb 199 144 2006 278 2019 0.426 81.6 750
Mar 368 275 2013 479 2022 0.482 137.3 912
Apr 507 361 2008 660 2007 0.515 195.6 1088
May 587 433 2010 721 2011 0.483 219.3 1111
Jun 656 547 2016 810 2023 0.521 253.1 1119
Jul 674 524 2014 790 2022 0.538 251.8 1067
Aug 579 394 2006 647 2016 0.532 216.1 1041
Sep 427 362 2008 511 2023 0.518 164.8 969
Oct 261 204 2024 325 2018 0.440 97.5 799
Nov 135 98 2023 182 2015 0.362 52.0 612
Dec 97 73 2011 172 2013 0.339 36.4 501

Mean annual cycle

# Mean annual cycle of the daily total, with the spread across years behind it and the most recent
# year drawn on top. Bands are computed per day of year, so day 366 rests on the leap years only
# and is noisier than its neighbours. The clearness index is drawn beside it: it is the same days
# divided by what the sun could have delivered, which is what takes the astronomy out.
_doy = daily.copy()
_doy['doy'] = _doy.index.dayofyear
_g = _doy.groupby('doy')

fig, axs = plt.subplots(ncols=2, figsize=(17, 5.5), dpi=100, layout="constrained")

for _ax, _col, _title, _ylab in [
        (axs[0], 'total_MJ', 'Daily total', 'MJ m-2 d-1'),
        (axs[1], 'kt', 'Daily clearness index', 'measured / potential')]:
    _mean, _lo, _hi = _g[_col].mean(), _g[_col].quantile(0.1), _g[_col].quantile(0.9)
    _sm = lambda s: s.rolling(11, center=True, min_periods=3).mean()
    _ax.fill_between(_mean.index, _sm(_lo), _sm(_hi), color='#FFE0B2',
                     label="10th to 90th percentile across years")
    _ax.plot(_mean.index, _sm(_mean), color='#E65100', lw=2.2, label="mean across years")
    _last = _doy[_doy.index.year == LAST_YEAR].set_index('doy')[_col]
    _ax.plot(_last.index, _sm(_last), color='#1565C0', lw=1.3, alpha=0.9, label=str(LAST_YEAR))
    _ax.set_xlabel("Day of year")
    _ax.set_ylabel(_ylab)
    _ax.set_title(_title, fontsize=11)
    _ax.grid(alpha=0.3)
    _ax.legend(fontsize=8)
if 'potential_MJ' in _doy:
    axs[0].plot(_g['potential_MJ'].mean().index,
                _g['potential_MJ'].mean().rolling(11, center=True, min_periods=3).mean(),
                color='#424242', lw=1.4, ls='--', label="potential")
    axs[0].legend(fontsize=8)

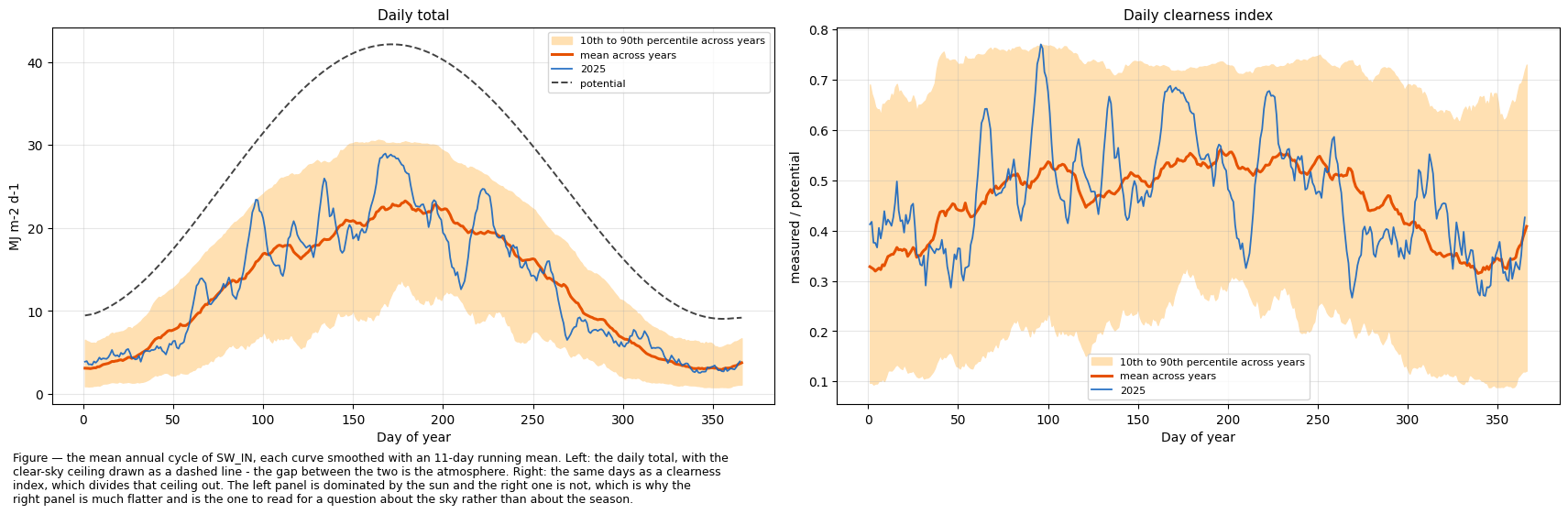

figcap(fig, f"the mean annual cycle of {var}, each curve smoothed with an 11-day running mean. "
            f"Left: the daily total, with the clear-sky ceiling drawn as a dashed line - the gap "
            f"between the two is the atmosphere. Right: the same days as a clearness index, which "
            f"divides that ceiling out. The left panel is dominated by the sun and the right one "
            f"is not, which is why the right panel is much flatter and is the one to read for a "
            f"question about the sky rather than about the season.")

Mean diurnal cycle per month

# Mean diurnal cycle per calendar month. The x axis is the centre of each 30MIN window, so the
# first point of the day is 00:15 and the last is 23:45.
_d = pd.DataFrame({'v': series})
_d['hour'] = _d.index.hour + _d.index.minute / 60
_d['month'] = _d.index.month
_diurnal = _d.pivot_table(index='hour', columns='month', values='v', aggfunc='mean')

fig, ax = plt.subplots(figsize=(13, 6), dpi=100, layout="constrained")
_cmap = plt.get_cmap('twilight_shifted')
for _m in _diurnal.columns:
    ax.plot(_diurnal.index, _diurnal[_m], color=_cmap((_m - 1) / 12), lw=2,
            label=calendar.month_abbr[_m])
ax.set_xlabel("Hour of day (local time, UTC+1)")
ax.set_ylabel(xlabel)
ax.set_xlim(0, 24)
ax.set_xticks(range(0, 25, 3))
ax.set_title(f"Mean diurnal cycle of {var} per calendar month")
ax.grid(alpha=0.3)
ax.legend(fontsize=8, ncol=2)

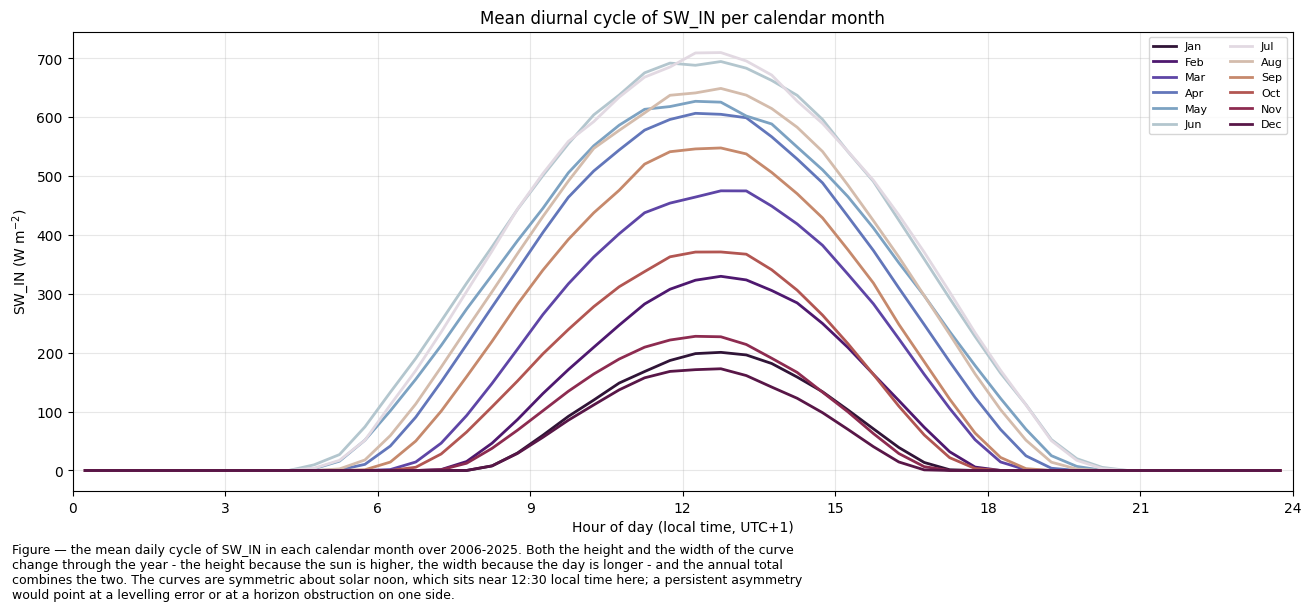

figcap(fig, f"the mean daily cycle of {var} in each calendar month over {FIRST_YEAR}-{LAST_YEAR}. "
            f"Both the height and the width of the curve change through the year - the height "
            f"because the sun is higher, the width because the day is longer - and the annual "
            f"total combines the two. The curves are symmetric about solar noon, which sits near "
            f"12:30 local time here; a persistent asymmetry would point at a levelling error or "
            f"at a horizon obstruction on one side.")

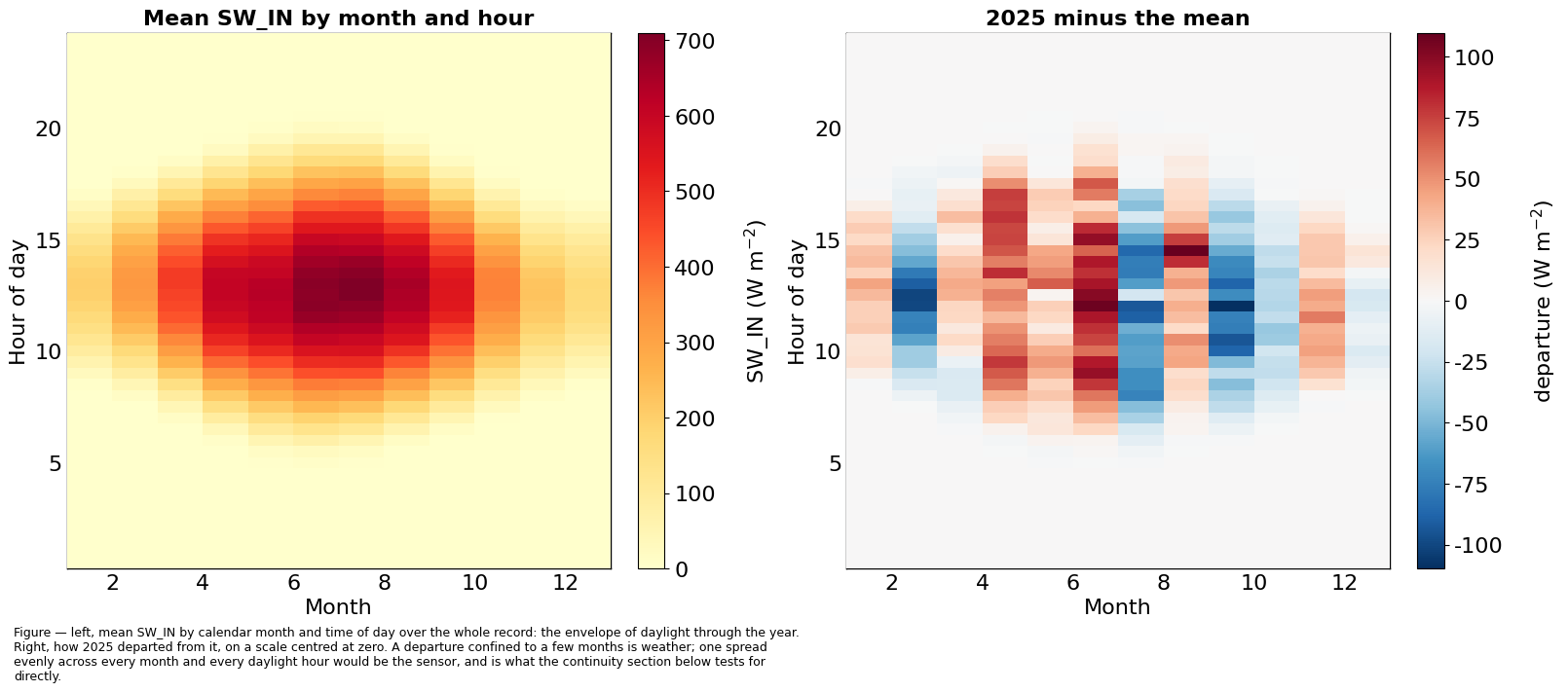

Month by hour

# The same cycle as a surface, next to the departure of the most recent year from it. The right
# panel is centred on zero, so above and below the long-term mean are equal distances from white.
_long = _diurnal.stack().rename("z").reset_index()
_long.columns = ['hour', 'month', 'z']

_last_d = _d[_d.index.year == LAST_YEAR].pivot_table(index='hour', columns='month', values='v',
                                                     aggfunc='mean')
_dep = (_last_d - _diurnal).stack().rename("z").reset_index()
_dep.columns = ['hour', 'month', 'z']
_absmax = _dep['z'].abs().max()

fig, axs = plt.subplots(ncols=2, figsize=(16, 7), dpi=100, layout="constrained")
dv.plotting.HeatmapXYZ(x=_long['month'], y=_long['hour'], z=_long['z']).plot(
    ax=axs[0], cmap='YlOrRd', cb_digits_after_comma=0, xlabel="Month", ylabel="Hour of day",
    zlabel=xlabel, format_style=dv.plotting.FormatStyle(title=f"Mean {var} by month and hour"))
dv.plotting.HeatmapXYZ(x=_dep['month'], y=_dep['hour'], z=_dep['z']).plot(
    ax=axs[1], cmap='RdBu_r', vmin=-_absmax, vmax=_absmax, cb_digits_after_comma=0,
    xlabel="Month", ylabel="Hour of day", zlabel=f"departure ({units})",
    format_style=dv.plotting.FormatStyle(title=f"{LAST_YEAR} minus the mean"))
figcap(fig, f"left, mean {var} by calendar month and time of day over the whole record: the "
            f"envelope of daylight through the year. Right, how {LAST_YEAR} departed from it, on "
            f"a scale centred at zero. A departure confined to a few months is weather; one "
            f"spread evenly across every month and every daylight hour would be the sensor, and "
            f"is what the continuity section below tests for directly.")


Extremes and day types

Extremes come from the measured records only, for the reason given in About: a gap-filled value is a model result and cannot set a record.

Highest half-hourly value

# Extremes come from the measured records only (see About). The averaging window is reported
# instead of the timestamp, because the product is stored on TIMESTAMP_MIDDLE.
_peak_ts = series_measured.idxmax()
_peak = series_measured.max()
print(f"Highest measured half-hour: {_peak:.1f} {units_plain}")
print(f"  averaging window:         {window(_peak_ts)}")
print(f"  potential radiation then: {POTRAD.loc[_peak_ts]:.1f} {units_plain} "
      f"(clearness index {_peak / POTRAD.loc[_peak_ts]:.3f})")

# A gap-filled value outside the measured range would be quoted as a record by anyone reading the
# full series, so the two ranges are compared rather than left to be discovered.
_filled_max = series.where(df[flagname].isin([1, 2])).max()
print(f"\nHighest modelled half-hour: {_filled_max:.1f} {units_plain}")
if _filled_max > _peak:
    print("  (!) a modelled value exceeds every measurement - it would be read as a record")
else:
    print("  below the measured maximum, so no model result can be mistaken for a record")
assert _filled_max <= LIMITS[1], "a modelled value is outside the physical limits"
Highest measured half-hour: 1118.7 W m-2
  averaging window:         04 Jun 2021, 13:00 to 13:30
  potential radiation then: 1189.1 W m-2 (clearness index 0.941)

Highest modelled half-hour: 1014.0 W m-2
  below the measured maximum, so no model result can be mistaken for a record

The brightest half-hours

# The extremes above in context. Neighbouring half-hours of the same afternoon fill this list,
# which is the point: a record half-hour is part of an episode, not an isolated reading.
_top = series_measured.nlargest(N_EXTREMES)
_table = pd.DataFrame({
    f"{var} ({units_plain})": _top.to_numpy(),
    "potential (W m-2)": POTRAD.loc[_top.index].to_numpy(),
    "clearness index": (_top / POTRAD.loc[_top.index]).to_numpy(),
    "averaging window": [window(t) for t in _top.index],
})
_table.index = range(1, len(_table) + 1)
_table.index.name = "rank"
display(styled(_table,
               caption=f"the {N_EXTREMES} highest measured half-hours of the record. A clearness "
                       f"index above 1 is cloud enhancement: a bright cloud edge reflecting extra "
                       f"light onto the sensor while the sun is not obscured, which is why the "
                       f"highest half-hours of the record are not the clearest ones",
               fmt={f"{var} ({units_plain})": "{:.1f}", "potential (W m-2)": "{:.1f}",
                    "clearness index": "{:.3f}"},
               subset=[f"{var} ({units_plain})"], cmap="YlOrRd"))
Table — the 10 highest measured half-hours of the record. A clearness index above 1 is cloud
enhancement: a bright cloud edge reflecting extra light onto the sensor while the sun is not
obscured, which is why the highest half-hours of the record are not the clearest ones
  SW_IN (W m-2) potential (W m-2) clearness index averaging window
rank
1 1118.7 1189.1 0.941 04 Jun 2021, 13:00 to 13:30
2 1111.0 1147.4 0.968 03 May 2017, 12:00 to 12:30
3 1100.6 1201.3 0.916 28 May 2011, 12:00 to 12:30
4 1100.2 1197.7 0.919 18 Jun 2016, 13:00 to 13:30
5 1092.1 1212.3 0.901 10 Jun 2011, 12:00 to 12:30
6 1088.1 1128.0 0.965 28 Apr 2019, 12:30 to 13:00
7 1087.8 1176.6 0.925 25 May 2022, 13:00 to 13:30
8 1086.8 1161.5 0.936 17 May 2025, 13:00 to 13:30
9 1084.9 1189.0 0.912 20 May 2011, 12:00 to 12:30
10 1083.0 1164.5 0.930 28 May 2011, 11:00 to 11:30

The brightest and dullest days

# The same for daily totals. A daily total is computed over all records of the day, gap-filled ones
# included, so the modelled share is listed next to it.
_measured_days = daily[daily['filled_share'] == 0]

for _label, _sel, _cmap in [("brightest", _measured_days.nlargest(N_EXTREMES, 'total_MJ'), "YlOrRd"),
                            ("dullest", _measured_days.nsmallest(N_EXTREMES, 'total_MJ'), "Blues_r")]:
    _t = pd.DataFrame({
        "date": [f"{d:%d %b %Y}" for d in _sel.index],
        "total (MJ m-2)": _sel['total_MJ'].to_numpy(),
        "potential (MJ m-2)": _sel['potential_MJ'].to_numpy(),
        "clearness index": _sel['kt'].to_numpy(),
        "peak (W m-2)": _sel['peak'].to_numpy(),
    })
    _t.index = range(1, len(_t) + 1)
    _t.index.name = "rank"
    display(styled(_t,
                   caption=f"the {N_EXTREMES} {_label} days of the record, entirely measured days "
                           f"only. Read the clearness index beside the total: the brightest days "
                           f"are all near midsummer and owe most of their total to the sun, while "
                           f"the dullest are near midwinter and would be dull in any season",
                   fmt={"total (MJ m-2)": "{:.2f}", "potential (MJ m-2)": "{:.2f}",
                        "clearness index": "{:.3f}", "peak (W m-2)": "{:.0f}"},
                   subset=["total (MJ m-2)"], cmap=_cmap))
Table — the 10 brightest days of the record, entirely measured days only. Read the clearness index
beside the total: the brightest days are all near midsummer and owe most of their total to the sun,
while the dullest are near midwinter and would be dull in any season
  date total (MJ m-2) potential (MJ m-2) clearness index peak (W m-2)
rank
1 14 Jun 2021 32.54 42.06 0.774 993
2 06 Jun 2013 32.49 41.67 0.780 1005
3 31 May 2021 32.29 41.18 0.784 991
4 30 May 2021 32.29 41.09 0.786 995
5 24 Jun 2015 32.20 42.13 0.764 1001
6 18 Jun 2017 32.19 42.15 0.764 995
7 21 Jun 2014 32.18 42.16 0.763 979
8 02 Jul 2022 32.08 41.85 0.767 982
9 29 Jun 2019 31.98 41.99 0.762 986
10 11 Jun 2022 31.88 41.95 0.760 977
Table — the 10 dullest days of the record, entirely measured days only. Read the clearness index
beside the total: the brightest days are all near midsummer and owe most of their total to the sun,
while the dullest are near midwinter and would be dull in any season
  date total (MJ m-2) potential (MJ m-2) clearness index peak (W m-2)
rank
1 21 Nov 2008 0.26 11.19 0.024 18
2 24 Dec 2025 0.27 9.04 0.030 18
3 05 Jan 2012 0.27 9.55 0.029 19
4 28 Nov 2012 0.29 10.30 0.028 18
5 18 Dec 2014 0.32 9.05 0.036 20
6 04 Jan 2018 0.33 9.48 0.035 22
7 23 Nov 2013 0.35 11.05 0.032 33
8 23 Dec 2022 0.35 9.03 0.039 24
9 20 Nov 2015 0.36 11.49 0.032 24
10 24 Nov 2013 0.37 10.91 0.034 20

Day types

A “sunny day” counted on the daily total is largely a statement about the season — a clear December day carries less energy than an overcast June one. Counted on the clearness index it is a statement about the sky, and only then are two years comparable.

# Day-type counts per year on the clearness index, which is the only way to count a "sunny day"
# without the answer being a statement about the season. Thresholds are in the Settings cell and
# are stated in the column names, because the counts mean nothing without them.
_dg = daily.groupby(daily.index.year)
daytypes = pd.DataFrame({
    f"clear (kt > {KT_CLEAR})": _dg['kt'].apply(lambda s: int((s > KT_CLEAR).sum())),
    f"overcast (kt < {KT_OVERCAST})": _dg['kt'].apply(lambda s: int((s < KT_OVERCAST).sum())),
    "days > 20 MJ m-2": _dg['total_MJ'].apply(lambda s: int((s > 20).sum())),
    "days < 2 MJ m-2": _dg['total_MJ'].apply(lambda s: int((s < 2).sum())),
    "longest clear spell (d)": _dg.apply(lambda g: longest_spell(g['kt'] > KT_CLEAR)[0]),
    "longest overcast spell (d)": _dg.apply(lambda g: longest_spell(g['kt'] < KT_OVERCAST)[0]),
})
daytypes.index.name = "YEAR"
display(styled(daytypes,
               caption=f"day types per year. The first two rows count the state of the sky and are "
                       f"comparable between years; the next two count energy and mix the sky with "
                       f"the season. The spell columns say whether a year reached its count in one "
                       f"run or in many - a year can hold a high clear-day count without ever "
                       f"holding a week of them, and the two say different things about the season",
               fmt="{:.0f}", cmap="YlOrRd"))

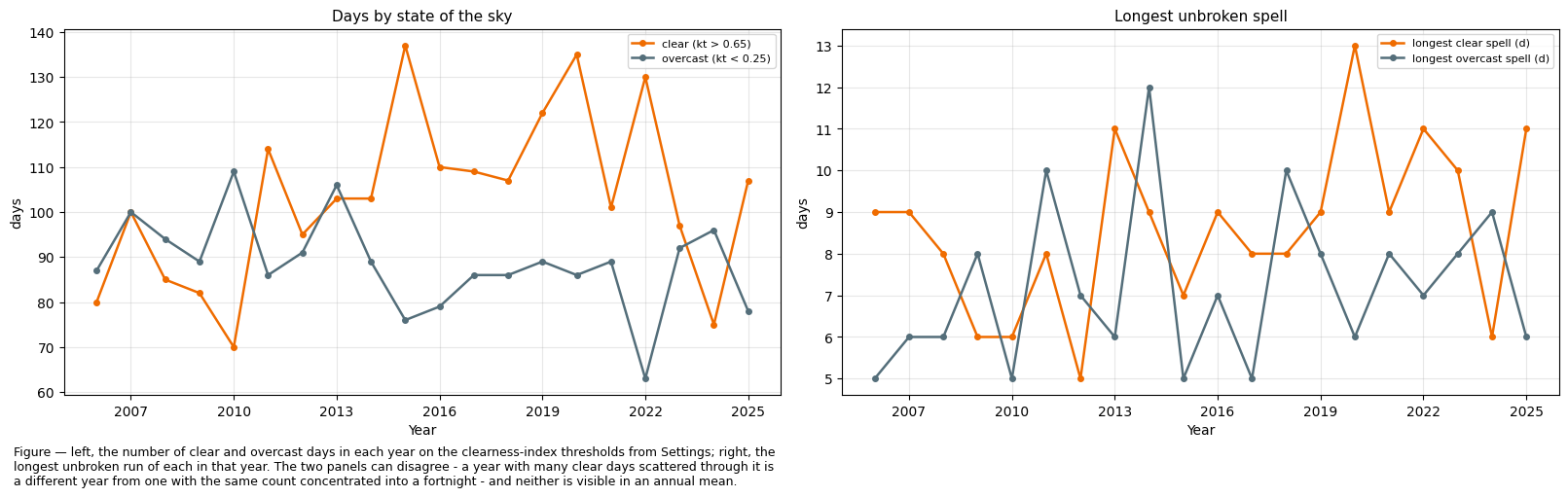

fig, axs = plt.subplots(ncols=2, figsize=(16, 5), dpi=100, layout="constrained", sharex=True)
for _ax, _cols, _title, _colours in [
        (axs[0], [f"clear (kt > {KT_CLEAR})", f"overcast (kt < {KT_OVERCAST})"],
         "Days by state of the sky", ['#EF6C00', '#546E7A']),
        (axs[1], ["longest clear spell (d)", "longest overcast spell (d)"],
         "Longest unbroken spell", ['#EF6C00', '#546E7A'])]:
    for _c, _col in zip(_cols, _colours):
        _ax.plot(daytypes.index, daytypes[_c], marker='o', ms=4, lw=1.8, color=_col, label=_c)
    _ax.set_xlabel("Year")
    _ax.set_ylabel("days")
    _ax.set_title(_title, fontsize=11)
    _ax.grid(alpha=0.3)
    _ax.legend(fontsize=8)
    year_axis(_ax)
figcap(fig, f"left, the number of clear and overcast days in each year on the clearness-index "
            f"thresholds from Settings; right, the longest unbroken run of each in that year. The "
            f"two panels can disagree - a year with many clear days scattered through it is a "
            f"different year from one with the same count concentrated into a fortnight - and "
            f"neither is visible in an annual mean.")
Table — day types per year. The first two rows count the state of the sky and are comparable between
years; the next two count energy and mix the sky with the season. The spell columns say whether a
year reached its count in one run or in many - a year can hold a high clear-day count without ever
holding a week of them, and the two say different things about the season
  clear (kt > 0.65) overcast (kt < 0.25) days > 20 MJ m-2 days < 2 MJ m-2 longest clear spell (d) longest overcast spell (d)
YEAR
2006 80 87 70 29 9 5
2007 100 100 87 45 9 6
2008 85 94 75 36 8 6
2009 82 89 95 40 6 8
2010 70 109 76 36 6 5
2011 114 86 103 40 8 10
2012 95 91 85 45 5 7
2013 103 106 89 34 11 6
2014 103 89 90 38 9 12
2015 137 76 102 29 7 5
2016 110 79 91 33 9 7
2017 109 86 100 45 8 5
2018 107 86 108 43 8 10
2019 122 89 101 41 9 8
2020 135 86 116 27 13 6
2021 101 89 78 43 9 8
2022 130 63 108 25 11 7
2023 97 92 90 44 10 8
2024 75 96 85 34 6 9
2025 107 78 95 29 11 6


Distributions

Of the daylight half-hours only. Over all records the distribution is 48 % a spike at zero, which is a statement about the length of the night and swamps everything else.

Ridgelines per year

# Distributions of the DAYLIGHT half-hours only. Over all records the distribution is 48 % a spike
# at zero, which is a statement about the length of the night and swamps everything else; the
# nights are described by the coverage and the diurnal sections instead.
rp = dv.plotting.RidgeLinePlot(series=daylight.dropna())
rp.plot(
    how='yearly',
    kd_kwargs=None,
    xlim=xlim,
    ylim=[0, 0.006],
    hspace=-0.8,
    fig_width=5,
    fig_height=9,
    shade_percentile=0.5,
    show_mean_line=False,
    format_style=dv.plotting.FormatStyle(xlabel=xlabel, title=f"{var} per year, daylight only"),
    fig_dpi=72,
    showplot=True,
    ascending=False
)

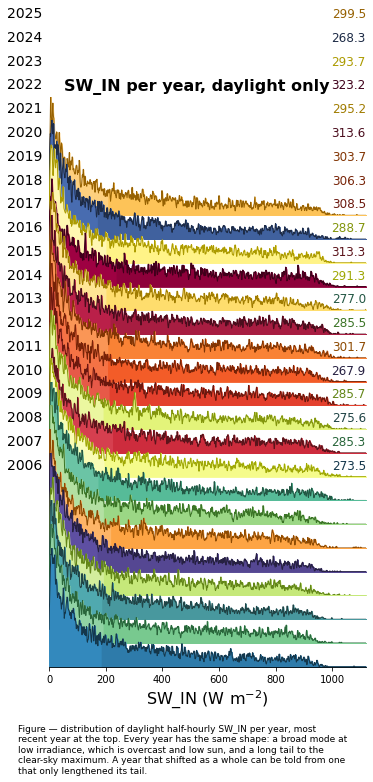

figcap(rp.fig, f"distribution of daylight half-hourly {var} per year, most recent year at the top. "
               f"Every year has the same shape: a broad mode at low irradiance, which is overcast "
               f"and low sun, and a long tail to the clear-sky maximum. A year that shifted as a "
               f"whole can be told from one that only lengthened its tail.")

Ridgelines per month

rp.plot(
    how='monthly',
    kd_kwargs=None,
    xlim=xlim,
    ylim=[0, 0.010],
    hspace=-0.6,
    fig_width=4.5,
    fig_height=8,
    shade_percentile=0.5,
    show_mean_line=False,
    format_style=dv.plotting.FormatStyle(
        xlabel=xlabel, title=f"{var} per month, daylight only ({FIRST_YEAR}-{LAST_YEAR})"),
    fig_dpi=72,
    showplot=True,
    ascending=False
)

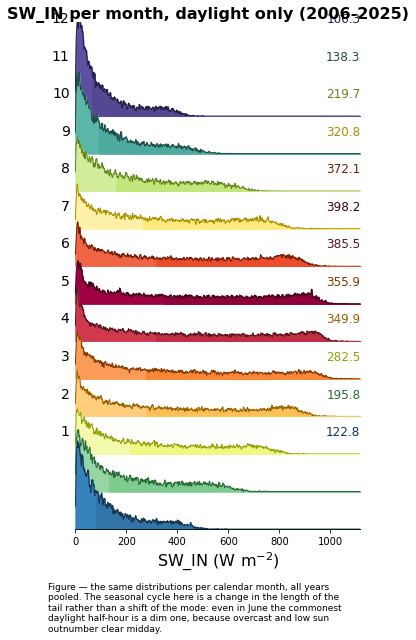

figcap(rp.fig, f"the same distributions per calendar month, all years pooled. The seasonal cycle "
               f"here is a change in the length of the tail rather than a shift of the mode: even "
               f"in June the commonest daylight half-hour is a dim one, because overcast and low "
               f"sun outnumber clear midday.")

Percentiles per year

# Quantiles of the daylight half-hourly values per year. The ridgelines above show the shape of
# each year's distribution; this shows where its edges moved. A shift of the median with unchanged
# 5th and 95th percentiles is a different signal from a tail that lengthens alone.
QUANTILES = [0.05, 0.25, 0.5, 0.75, 0.95]
_dl = daylight.dropna()
quantiles = _dl.groupby(_dl.index.year).quantile(QUANTILES).unstack()
quantiles.index.name = "YEAR"

fig, ax = plt.subplots(figsize=(14, 6), dpi=72, layout="constrained")
ax.fill_between(quantiles.index, quantiles[0.05], quantiles[0.95], color='#FFF3E0',
                label="5th to 95th percentile")
ax.fill_between(quantiles.index, quantiles[0.25], quantiles[0.75], color='#FFCC80',
                label="25th to 75th percentile")
ax.plot(quantiles.index, quantiles[0.5], color='#E65100', lw=2, marker='o', label="median")
ax.plot(quantiles.index, _dl.groupby(_dl.index.year).mean(), color='#1565C0', lw=2, marker='s',
        label="mean")
ax.set_xlabel("Year")
ax.set_ylabel(xlabel)
ax.set_title(f"Distribution of daylight half-hourly {var} per year")
ax.grid(alpha=0.3)
year_axis(ax)
ax.legend(fontsize=9)

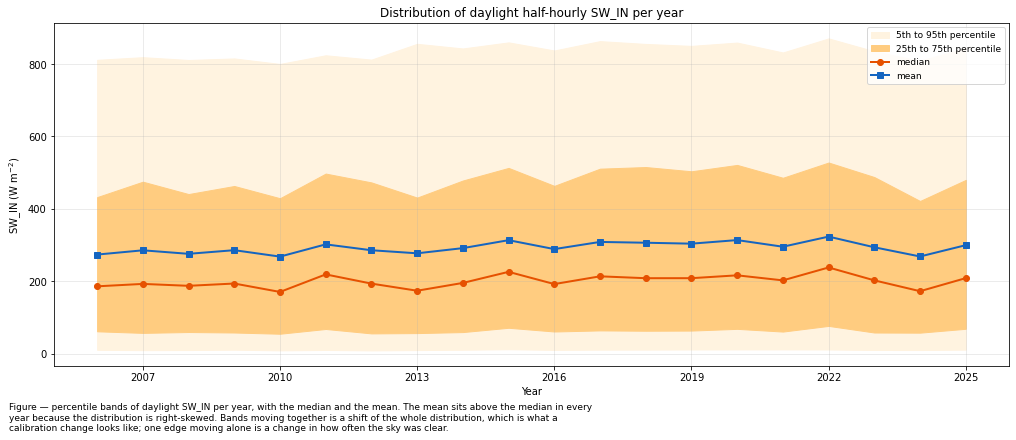

figcap(fig, f"percentile bands of daylight {var} per year, with the median and the mean. The mean "
            f"sits above the median in every year because the distribution is right-skewed. Bands "
            f"moving together is a shift of the whole distribution, which is what a calibration "
            f"change looks like; one edge moving alone is a change in how often the sky was clear.")
fig.show()

_table = quantiles.copy()
_table.columns = [f"{int(q * 100)}th percentile ({units_plain})" for q in _table.columns]
display(styled(_table,
               caption=f"percentiles of daylight half-hourly {var} per year, the numbers behind the "
                       f"bands: whether a year moved as a whole or only at one edge",
               fmt="{:.1f}", axis=None, cmap="YlOrRd"))
Table — percentiles of daylight half-hourly SW_IN per year, the numbers behind the bands: whether a
year moved as a whole or only at one edge
  5th percentile (W m-2) 25th percentile (W m-2) 50th percentile (W m-2) 75th percentile (W m-2) 95th percentile (W m-2)
YEAR
2006 10.2 61.5 185.8 432.4 811.9
2007 9.4 57.1 192.5 475.0 819.2
2008 9.7 59.5 187.2 440.8 811.4
2009 10.6 58.1 193.5 463.1 815.7
2010 8.8 54.7 170.3 429.3 800.5
2011 9.9 67.9 218.7 497.4 824.4
2012 8.7 55.7 193.3 473.0 812.4
2013 9.6 56.5 173.6 431.1 856.1
2014 10.5 59.3 195.2 478.3 843.3
2015 11.9 71.2 225.8 513.1 860.0
2016 10.0 60.9 192.0 463.5 837.7
2017 10.7 63.9 213.4 511.0 863.6
2018 10.9 63.0 208.2 515.5 855.8
2019 11.2 63.5 208.3 503.8 850.4
2020 11.3 68.2 216.2 521.3 859.5
2021 11.4 60.7 202.2 485.8 832.2
2022 11.2 76.4 237.9 528.0 871.0
2023 9.8 58.1 202.3 487.8 835.6
2024 9.7 57.7 172.3 421.7 809.3
2025 10.8 68.4 208.5 479.9 844.4


Heatmap plots

Half-hourly

fig, axs = plt.subplots(ncols=1, figsize=(6, 12), dpi=72, layout="constrained")
dv.plotting.HeatmapDateTime(series=series).plot(ax=axs, cb_digits_after_comma=0, zlabel=xlabel)

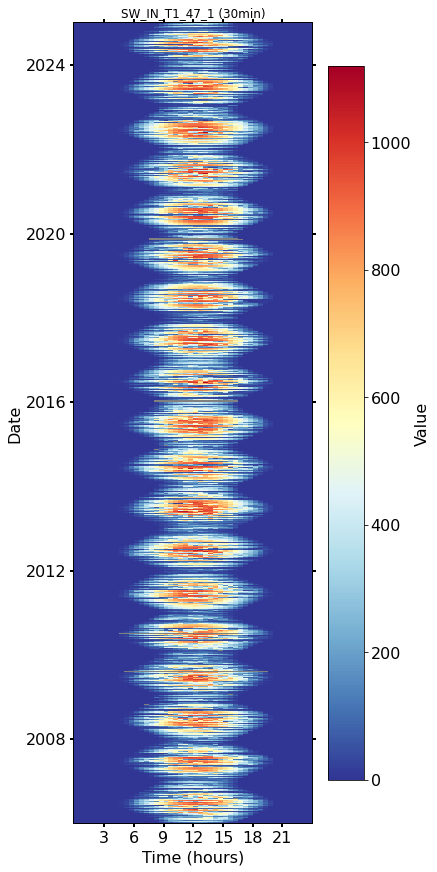

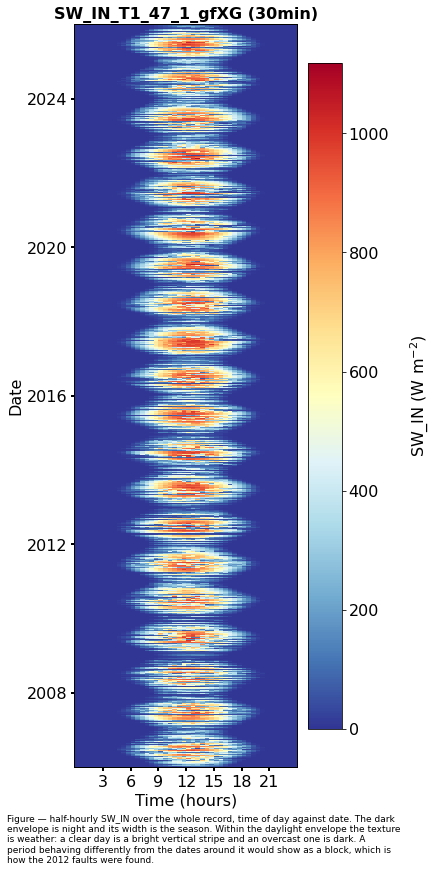

figcap(fig, f"half-hourly {var} over the whole record, time of day against date. The dark envelope "
            f"is night and its width is the season. Within the daylight envelope the texture is "
            f"weather: a clear day is a bright vertical stripe and an overcast one is dark. A "
            f"period behaving differently from the dates around it would show as a block, which "
            f"is how the 2012 faults were found.")

Monthly

fig, axs = plt.subplots(ncols=3, figsize=(17, 7), dpi=120, layout="constrained")
fig.suptitle('Per month', fontsize=28)

# HeatmapYearMonth aggregates the half-hourly series itself, so it is passed unresampled.
dv.plotting.HeatmapYearMonth(series=series, agg='mean').plot(
    ax=axs[0], cb_digits_after_comma=0, zlabel="monthly mean",
    format_style=dv.plotting.FormatStyle(title="monthly mean irradiance"))
dv.plotting.HeatmapYearMonth(series=series, agg='max').plot(
    ax=axs[1], cb_digits_after_comma=0, zlabel="monthly maximum",
    format_style=dv.plotting.FormatStyle(title="monthly peak half-hour"))

# The monthly total is not one of the available aggregations, so it is built from the daily totals
# and drawn on the same grid with HeatmapXYZ.
_tot_lf = monthly_total.copy()
_tot_lf.columns = range(1, 13)
_tot_lf = _tot_lf.stack().rename("monthly total").reset_index()
_tot_lf.columns = ['YEAR', 'MONTH', 'monthly total']
dv.plotting.HeatmapXYZ(x=_tot_lf['MONTH'], y=_tot_lf['YEAR'], z=_tot_lf['monthly total']).plot(
    ax=axs[2], cb_digits_after_comma=0, zlabel="MJ m-2",
    format_style=dv.plotting.FormatStyle(title="monthly total"))
figcap(fig, f"monthly mean, monthly peak half-hour and monthly total of {var} by year and month. "
            f"The mean and the total carry the same seasonal band, since one is close to a "
            f"rescaling of the other. The peak panel is flatter across the summer months, because "
            f"the brightest half-hour of any summer month is set by the clear-sky maximum rather "
            f"than by how often the sky was clear.")

Monthly ranks

# Monthly ranks: for each calendar month, where every year sits among the others. It removes the
# seasonal cycle entirely, which the totals panel above cannot.
_ranks = monthly_total.rank(ascending=False, axis=0)
_ranks_lf = _ranks.copy()
_ranks_lf.columns = range(1, 13)
_ranks_lf = _ranks_lf.stack().rename("rank").reset_index()
_ranks_lf.columns = ['YEAR', 'MONTH', 'rank']

fig, ax = plt.subplots(figsize=(9, 11), dpi=72, layout="constrained")
dv.plotting.HeatmapXYZ(x=_ranks_lf['MONTH'], y=_ranks_lf['YEAR'], z=_ranks_lf['rank']).plot(
    ax=ax, cmap='YlOrRd_r', cb_digits_after_comma=0, xlabel="Month", ylabel="Year",
    zlabel="rank (1 = brightest)",
    format_style=dv.plotting.FormatStyle(title=f"Rank of each month among the {len(monthly_total)} years"))

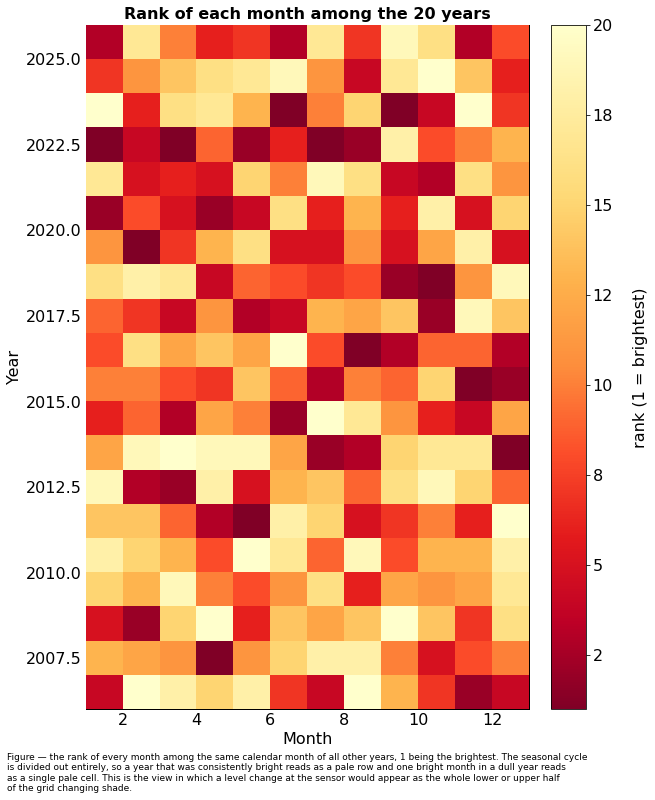

figcap(fig, f"the rank of every month among the same calendar month of all other years, 1 being "
            f"the brightest. The seasonal cycle is divided out entirely, so a year that was "
            f"consistently bright reads as a pale row and one bright month in a dull year reads "
            f"as a single pale cell. This is the view in which a level change at the sensor would "
            f"appear as the whole lower or upper half of the grid changing shade.")

display(styled(_ranks, caption=f"the ranks behind the grid above, 1 being the brightest occurrence "
                               f"of that calendar month", fmt="{:.0f}", axis=None, cmap="YlOrRd_r"))
Table — the ranks behind the grid above, 1 being the brightest occurrence of that calendar month
  Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
YEAR
2006 4 20 18 15 18 7 4 20 13 7 2 4
2007 13 12 11 1 11 15 18 18 10 5 8 10
2008 5 2 15 20 6 14 12 14 20 14 7 16
2009 15 13 19 10 8 11 16 6 12 11 12 17
2010 18 15 13 8 20 17 9 19 8 13 13 18
2011 14 14 9 3 1 18 15 5 7 10 6 20
2012 19 3 2 18 5 13 14 9 16 19 15 9
2013 12 19 20 19 19 12 2 3 15 17 17 1
2014 6 9 3 12 10 2 20 17 11 6 4 12
2015 10 10 8 7 14 9 3 10 9 15 1 2
2016 8 16 12 14 12 20 8 1 3 9 9 3
2017 9 7 4 11 3 4 13 12 14 2 19 14
2018 16 18 17 4 9 8 7 8 2 1 11 19
2019 11 1 7 13 16 5 5 11 5 12 18 5
2020 2 8 5 2 4 16 6 13 6 18 5 15
2021 17 5 6 5 15 10 19 16 4 3 16 11
2022 1 4 1 9 2 6 1 2 18 8 10 13
2023 20 6 16 17 13 1 10 15 1 4 20 7
2024 7 11 14 16 17 19 11 4 17 20 14 6
2025 3 17 10 6 7 3 17 7 19 16 3 8


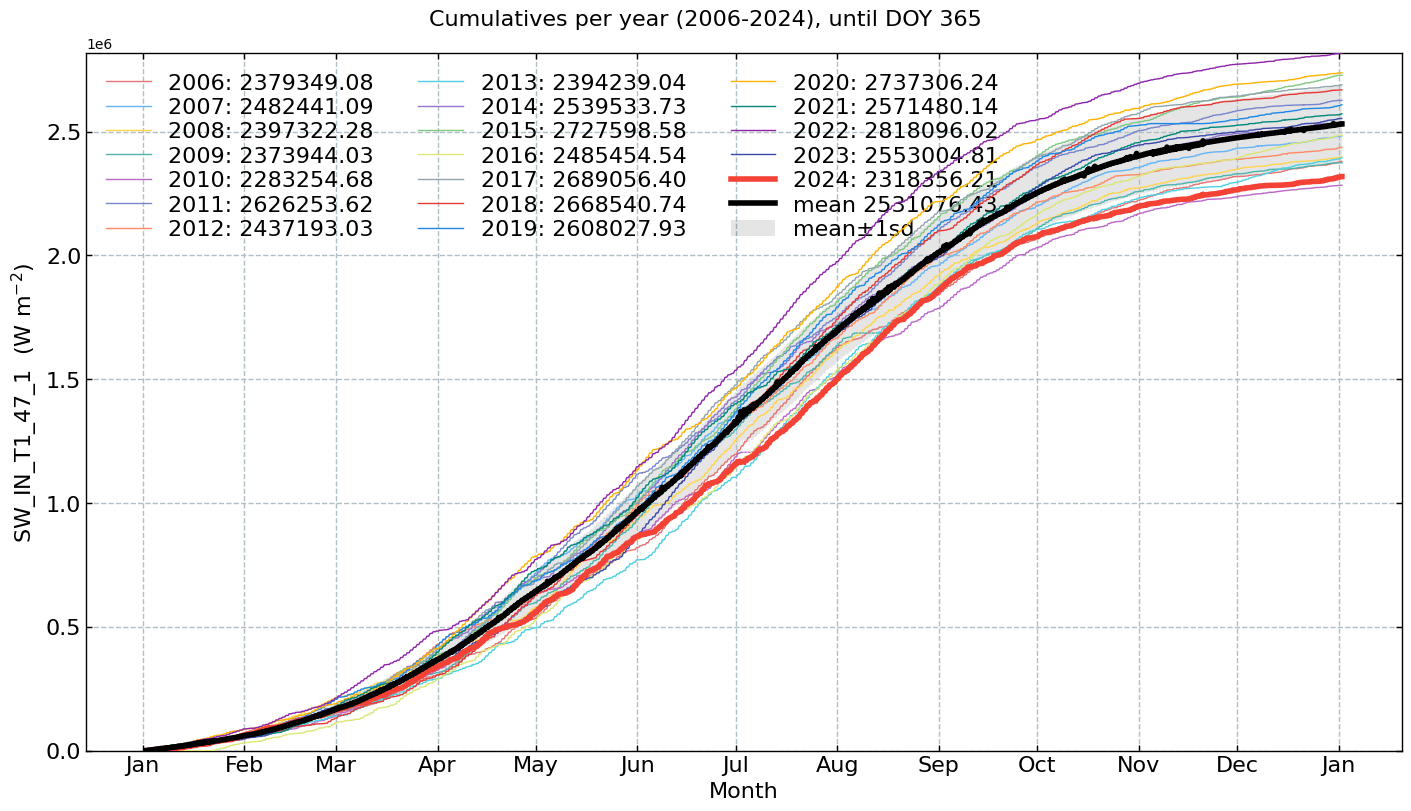

Cumulative plot

_cumulative = CumulativeYear(
    series=series,
    series_units=units,
    start_year=FIRST_YEAR,
    end_year=LAST_YEAR,
    show_reference=True,
    excl_years_from_reference=None,
    highlight_year=LAST_YEAR)
_cumulative.plot(highlight_year_color='#E65100')

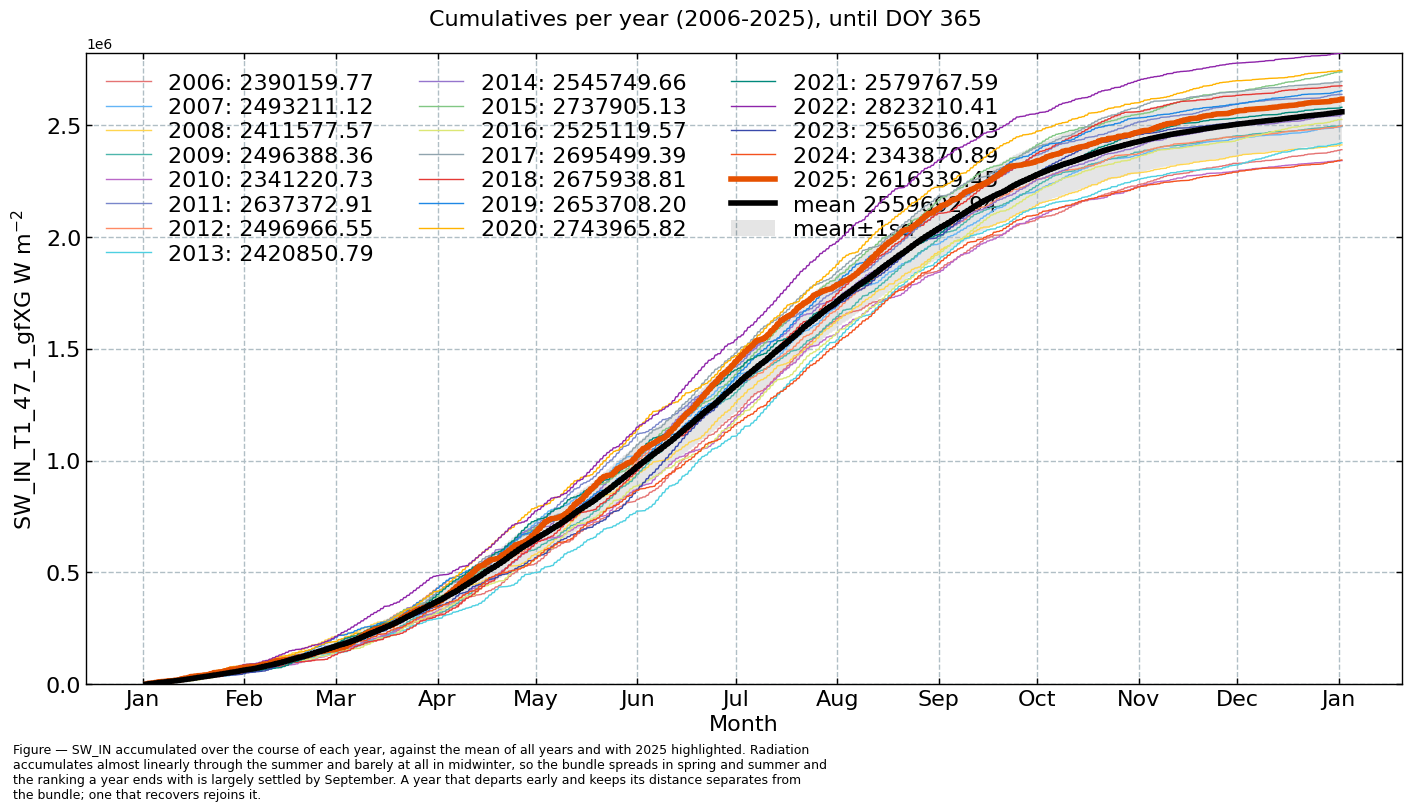

figcap(_cumulative.fig,
       f"{var} accumulated over the course of each year, against the mean of all years and with "
       f"{LAST_YEAR} highlighted. Radiation accumulates almost linearly through the summer and "
       f"barely at all in midwinter, so the bundle spreads in spring and summer and the ranking a "
       f"year ends with is largely settled by September. A year that departs early and keeps its "
       f"distance separates from the bundle; one that recovers rejoins it.")


Comparison with the MeteoSwiss reference station

MeteoSwiss Lägern is 2.5 km from the tower on the same ridge, operated by a different institution.

ImportantThe reference itself changed in October 2010

That station’s radiation instrumentation was rebuilt on 6 October 2010 — its diffuse-radiation channel begins on exactly that timestamp — and its global radiation steps by about 5 %. The change is at the reference, not at the tower: the two tower sensors and NABEL’s all step against it together and not against each other, which is established in 30_PRODUCTS/RADIATION_SENSOR_CONTINUITY.ipynb.

Everything below therefore splits at that date rather than averaging across it, and no difference between this product and MeteoSwiss Lägern may be read as evidence about the tower across it.

# The reference product is written by 10_METEO/10_REFERENCE and is stored on TIMESTAMP_END, so it
# is shifted onto the product's TIMESTAMP_MIDDLE before anything is compared.
_ref_raw = pd.read_parquet(REFPATH)[[REFCOL]]
_ref_raw.index = _ref_raw.index - pd.Timedelta(minutes=15)
_ref_raw.index.name = df.index.name

ref = pd.DataFrame({
    'tower': series_measured,       # measured records only, so no model enters the comparison
    'reference': _ref_raw[REFCOL],
    'potential': POTRAD,
}).dropna()

# The alignment is proved rather than assumed, as in the product notebooks.
_scores = {}
for _off in (-1, 0, 1):
    _j = pd.concat([ref['tower'].rename('t'), ref['reference'].shift(_off).rename('r')],
                   axis=1).dropna()
    _j = _j[_j['r'] > 20]
    _scores[_off] = _j['t'].corr(_j['r'])
assert max(_scores, key=_scores.get) == 0, f"the reference is mis-aligned: {_scores}"
print(f"reference aligned (daytime correlation at offset 0: {_scores[0]:.4f})")

# Comparisons are ratios, and only on well-lit half-hours: at low sun the ratio between two sites
# is dominated by their horizons rather than by anything about either instrument.
ref = ref[ref['potential'] > 300]
ref['ratio'] = ref['tower'] / ref['reference']
ref = ref[(ref['tower'] > 50) & (ref['reference'] > 50)]
print(f"well-lit half-hours compared: {len(ref):,}, "
      f"{ref.index[0]:%Y-%m-%d} to {ref.index[-1]:%Y-%m-%d}")
reference aligned (daytime correlation at offset 0: 0.9648)
well-lit half-hours compared: 120,720, 2006-01-01 to 2025-12-31

The ratio over the record

# The ratio over the record, with the October 2010 change at the reference station marked. The
# comparison is split there rather than averaged across it: that station's radiation
# instrumentation was rebuilt and its global radiation steps by about 5 %, which is a property of
# the reference and not of the tower (see RADIATION_SENSOR_CONTINUITY).
_monthly_ratio = ref['ratio'].resample('MS').median()
_n = ref['ratio'].resample('MS').count()
_monthly_ratio = _monthly_ratio[_n >= 50]

fig, axs = plt.subplots(ncols=2, figsize=(17, 5.5), dpi=100, layout="constrained",
                        width_ratios=[1.7, 1])
fig.suptitle("Tower against MeteoSwiss Laegern", fontsize=14)

axs[0].plot(_monthly_ratio.index, _monthly_ratio, color='#90A4AE', lw=0.8, alpha=0.8,
            label="monthly median")
axs[0].plot(_monthly_ratio.index, _monthly_ratio.rolling(12, center=True, min_periods=6).median(),
            color='#E65100', lw=2.2, label="12-month rolling median")
axs[0].axhline(1.0, color='#BDBDBD', lw=0.8)
axs[0].axvline(pd.Timestamp(f'{REF_STEP_YEAR - 1}-10-06'), color='#616161', lw=1.3, ls='--',
               label="Oct 2010: reference station re-instrumented")
axs[0].set_xlabel("Year")
axs[0].set_ylabel("tower / MeteoSwiss")
axs[0].set_title("Ratio over the record", fontsize=11)
axs[0].grid(alpha=0.3)
axs[0].legend(fontsize=8)

_hb = axs[1].hexbin(ref['reference'], ref['tower'], gridsize=60, mincnt=1, bins='log',
                    cmap='viridis')
_lim = [0, float(max(ref['tower'].max(), ref['reference'].max()))]
axs[1].plot(_lim, _lim, 'r-', lw=1.2, label='1:1')
axs[1].set_xlabel(f"MeteoSwiss Laegern ({units})")
axs[1].set_ylabel(f"tower 47 m ({units})")
axs[1].set_title(f"Half-hourly, r2 = {ref['tower'].corr(ref['reference']) ** 2:.3f}", fontsize=11)
axs[1].legend(fontsize=8)
fig.colorbar(_hb, ax=axs[1], label="half-hours (log)")

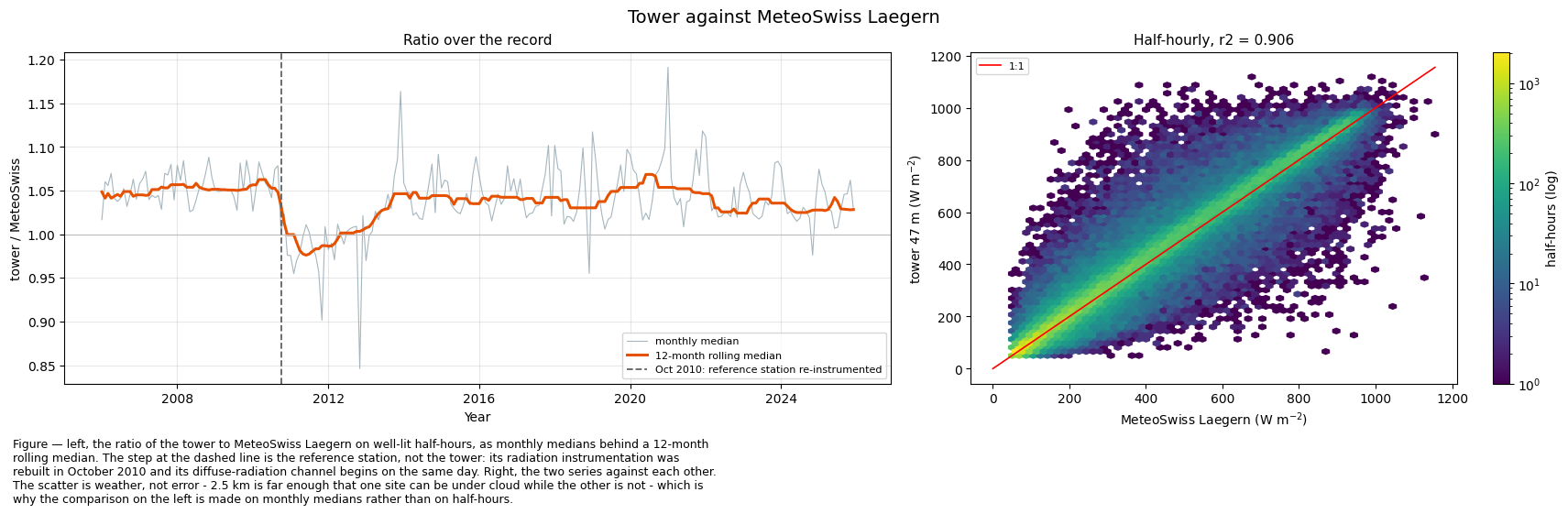

figcap(fig, f"left, the ratio of the tower to MeteoSwiss Laegern on well-lit half-hours, as "
            f"monthly medians behind a 12-month rolling median. The step at the dashed line is "
            f"the reference station, not the tower: its radiation instrumentation was rebuilt in "
            f"October 2010 and its diffuse-radiation channel begins on the same day. Right, the "
            f"two series against each other. The scatter is weather, not error - 2.5 km is far "
            f"enough that one site can be under cloud while the other is not - which is why the "
            f"comparison on the left is made on monthly medians rather than on half-hours.")

The two eras of the reference

# THREE windows, not two. The obvious split - before and after October 2010 - measures the
# reference station's step and the tower's own 2013 departure at once, and the two act in opposite
# directions on this ratio and partly cancel: taken that way the step comes out at about half its
# size, which is what a first version of this cell reported.
#
# 2011-2012 are the only two complete years that are after the reference station changed and
# before the tower sensor started drifting, so they are the window in which the reference step can
# be measured on its own. The last row carries both changes and is here for completeness.
TOWER_DRIFT_YEAR = 2013  # when the tower sensor begins departing (RADIATION_SENSOR_CONTINUITY)
WINDOWS = [
    (f'{FIRST_YEAR}-{REF_STEP_YEAR - 1}', FIRST_YEAR, REF_STEP_YEAR - 1,
     'before the reference station changed'),
    (f'{REF_STEP_YEAR}-{TOWER_DRIFT_YEAR - 1}', REF_STEP_YEAR, TOWER_DRIFT_YEAR - 1,
     'after it, before the tower sensor drifts'),
    (f'{TOWER_DRIFT_YEAR}-{LAST_YEAR}', TOWER_DRIFT_YEAR, LAST_YEAR,
     'both changes present'),
]
_rows = []
for _label, _y0, _y1, _what in WINDOWS:
    _sel = ref[(ref.index.year >= _y0) & (ref.index.year <= _y1)]
    _rows.append({'period': _label, 'what it holds': _what, 'half-hours': len(_sel),
                  'median ratio': _sel['ratio'].median(),
                  'mean tower (W m-2)': _sel['tower'].mean(),
                  'mean reference (W m-2)': _sel['reference'].mean()})
ref_eras = pd.DataFrame(_rows).set_index('period')
ref_eras['departure from 1 (%)'] = 100 * (ref_eras['median ratio'] - 1)

display(styled(ref_eras,
               caption=f"the tower against MeteoSwiss Laegern in three windows. The first two "
                       f"differ only by the reference station's October 2010 rebuild, which is "
                       f"what isolates it; the third also carries the tower's own departure from "
                       f"{TOWER_DRIFT_YEAR}, which acts the other way and partly cancels it. No "
                       f"row is a calibration statement about this product",
               fmt={'half-hours': "{:.0f}", 'median ratio': "{:.4f}",
                    'mean tower (W m-2)': "{:.1f}", 'mean reference (W m-2)': "{:.1f}",
                    'departure from 1 (%)': "{:+.2f}"}, cmap=None))

_clean = ref_eras['median ratio'].iloc[1] / ref_eras['median ratio'].iloc[0] - 1
_muddled = ref_eras['median ratio'].iloc[2] / ref_eras['median ratio'].iloc[0] - 1
print(f"Reference station's step, measured on the clean window:  {100 * _clean:+.2f} %")
print(f"The same comparison against {TOWER_DRIFT_YEAR}-{LAST_YEAR}:            "
      f"{100 * _muddled:+.2f} %  <- two changes at once, do not use")

assert abs(_clean) > 0.03, (
    "the October 2010 change at the reference station has disappeared from the window that "
    "isolates it - either the reference product was rebuilt or the split years are wrong, and the "
    "text around this cell must be re-derived rather than relaxed")
assert abs(_clean) > abs(_muddled), (
    "the two changes no longer partly cancel, which is the reason this table has three rows "
    "rather than two - re-check which years hold which change")
Table — the tower against MeteoSwiss Laegern in three windows. The first two differ only by the
reference station's October 2010 rebuild, which is what isolates it; the third also carries the
tower's own departure from 2013, which acts the other way and partly cancels it. No row is a
calibration statement about this product
  what it holds half-hours median ratio mean tower (W m-2) mean reference (W m-2) departure from 1 (%)
period
2006-2010 before the reference station changed 29826 1.0516 381.0 361.6 +5.16
2011-2012 after it, before the tower sensor drifts 11714 0.9901 398.5 399.6 -0.99
2013-2025 both changes present 79180 1.0348 407.4 392.5 +3.48
Reference station's step, measured on the clean window:  -5.85 %
The same comparison against 2013-2025:            -1.60 %  <- two changes at once, do not use


Sensor continuity

The product exports one value column and no homogenised variant. That is a claim: it says the record does not step at either of its two hardware changes — the January 2016 logger replacement and the December 2021 replacement of the radiometer itself. The claim is re-derived here and asserted, so a re-run of this notebook fails if it ever stops being true.

The 2013 departure of the sensor from its references, about 3 % and unattributed, is not corrected in the product and is not tested here; it has no date to test at. It is documented in docs/Meteo_Data_SW_IN.md and in 30_PRODUCTS/RADIATION_SENSOR_CONTINUITY.ipynb.

# The two hardware changes this product is asserted to be homogeneous across, re-derived here. The
# overview is read on its own, so it repeats the check rather than pointing at notebook 01 for it.
#
# Ratios against the reference, month-matched and on well-lit April-September half-hours only, for
# the reasons given in About. The 2016 window is taken entirely inside the reference station's
# later era, so its own October 2010 step cannot enter.
_summer = ref[ref.index.month.isin([4, 5, 6, 7, 8, 9])]
_m = _summer['ratio'].groupby([_summer.index.year, _summer.index.month]).median()
_m.index.names = ['year', 'month']
_n = _summer['ratio'].groupby([_summer.index.year, _summer.index.month]).count()
_ratio_year = _m[_n >= 100].groupby(level=0).mean()


def _change_across(year, span=3):
    """Month-matched percentage change of the ratio across `year`, `span` years either side."""
    _pre = _ratio_year.reindex(range(year - span, year)).dropna()
    _post = _ratio_year.reindex(range(year + 1, year + 1 + span)).dropna()
    if len(_pre) < 2 or len(_post) < 2:
        return float('nan')
    return 100 * (_post.mean() / _pre.mean() - 1)


CHANGES = {2016: "logger replaced, sensor unchanged (CNR1 throughout)",
           2022: "radiometer replaced, CNR1 -> CNR4, and the mst/diive screening splice"}
_rows = [{'year': _y, 'what happened': _w, 'change in the ratio (%)': _change_across(_y)}
         for _y, _w in CHANGES.items()]
continuity = pd.DataFrame(_rows).set_index('year')
_others = pd.Series({_y: _change_across(_y) for _y in _ratio_year.index
                     if _y not in CHANGES}).dropna()
continuity['median |change| elsewhere (%)'] = _others.abs().median()
continuity['largest |change| elsewhere (%)'] = _others.abs().max()

display(styled(continuity,
               caption=f"the change in the tower-to-reference ratio across each hardware change, "
                       f"against what the same measurement finds at every other year of the "
                       f"record. Both changes are smaller than an ordinary year's variation, "
                       f"which is what the single value column of this product rests on",
               fmt={'change in the ratio (%)': "{:+.2f}",
                    'median |change| elsewhere (%)': "{:.2f}",
                    'largest |change| elsewhere (%)': "{:.2f}"}, cmap=None))

# The assertion the single value column rests on. It is the overview's own copy of the guard in
# notebook 01, and it fails here too if the product ever stops being homogeneous.
EVENT_THRESHOLD = 2.0
for _year, _row in continuity.iterrows():
    _c = _row['change in the ratio (%)']
    assert abs(_c) < EVENT_THRESHOLD, (
        f"{var} changes by {_c:+.2f} % across the {_year} hardware change, past the "
        f"{EVENT_THRESHOLD} % at which this record counts an event. The product exports one value "
        f"column on the grounds that it does not step at either change; that is no longer true "
        f"and both this notebook and notebook 01 must be re-derived")
print(f"\nNeither hardware change moves the series by as much as {EVENT_THRESHOLD} %. The product "
      f"is exported as a single value column with no homogenised variant, and that is what "
      f"justifies it.")
Table — the change in the tower-to-reference ratio across each hardware change, against what the
same measurement finds at every other year of the record. Both changes are smaller than an ordinary
year's variation, which is what the single value column of this product rests on
  what happened change in the ratio (%) median |change| elsewhere (%) largest |change| elsewhere (%)
year
2016 logger replaced, sensor unchanged (CNR1 throughout) -0.27 0.84 3.63
2022 radiometer replaced, CNR1 -> CNR4, and the mst/diive screening splice -0.84 0.84 3.63

Neither hardware change moves the series by as much as 2.0 %. The product is exported as a single value column with no homogenised variant, and that is what justifies it.


Appendix: single-year detail

One figure per year, drawn only when SHOW_PER_YEAR_DETAIL is set in the Settings cell. It repeats the monthly distributions year by year and is kept at the end because it is detail, not overview.

Single years per month

if SHOW_PER_YEAR_DETAIL:
    uniq_years = daylight.dropna().index.year.unique()
    for uy in uniq_years:
        series_yr = daylight.dropna()
        series_yr = series_yr.loc[series_yr.index.year == uy].copy()
        rp = dv.plotting.RidgeLinePlot(series=series_yr)
        rp.plot(
            how='monthly',
            kd_kwargs=None,
            xlim=xlim,
            ylim=[0, 0.012],
            hspace=-0.6,
            fig_width=6,
            fig_height=7,
            shade_percentile=0.5,
            show_mean_line=False,
            format_style=dv.plotting.FormatStyle(
                xlabel=xlabel, title=f"{var} per month, daylight only ({uy})"),
            fig_dpi=72,
            showplot=True,
            ascending=False
        )

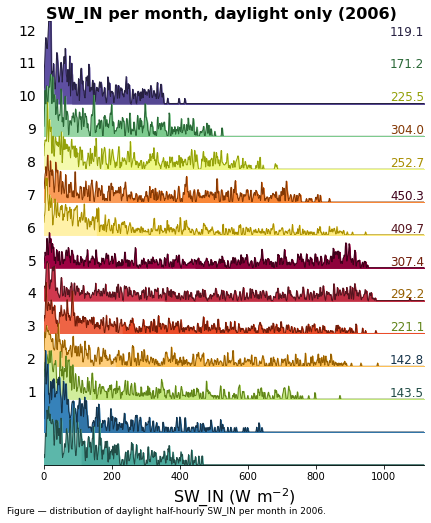

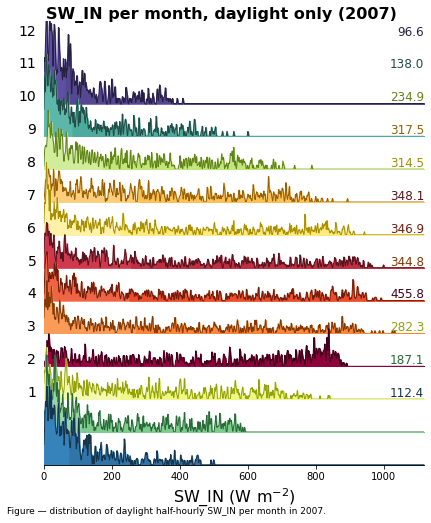

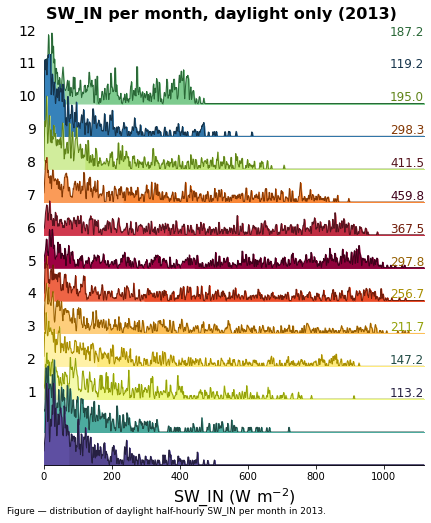

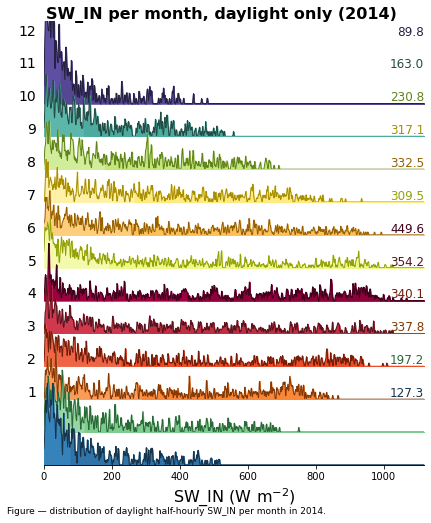

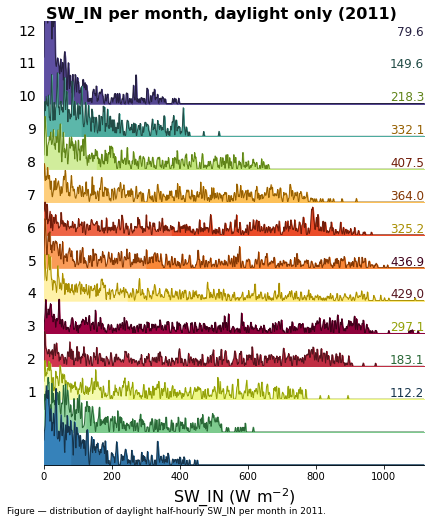

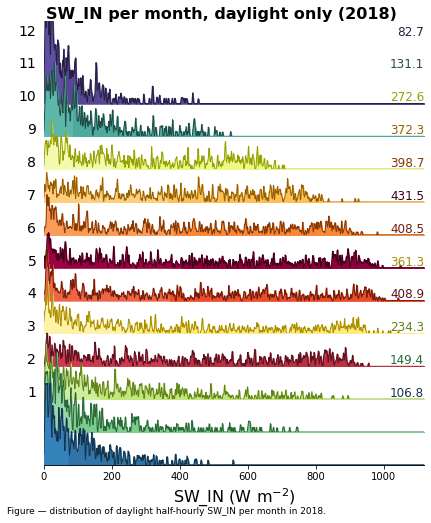

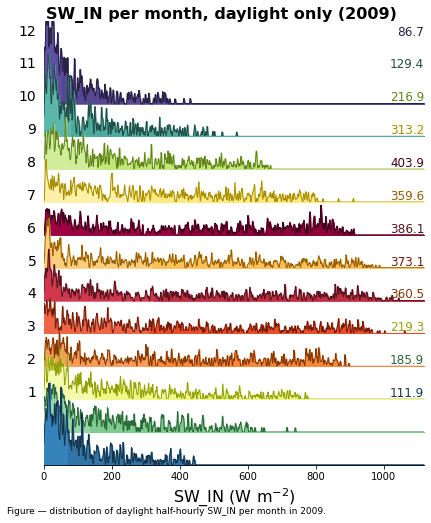

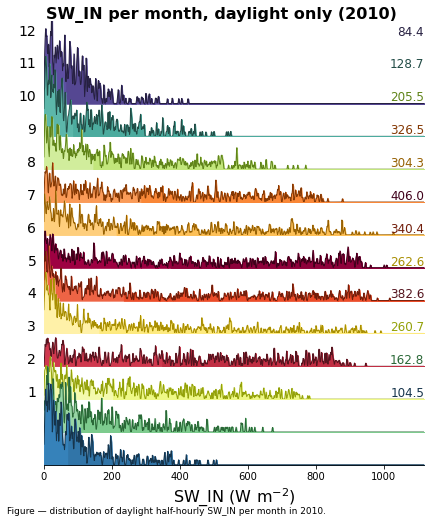

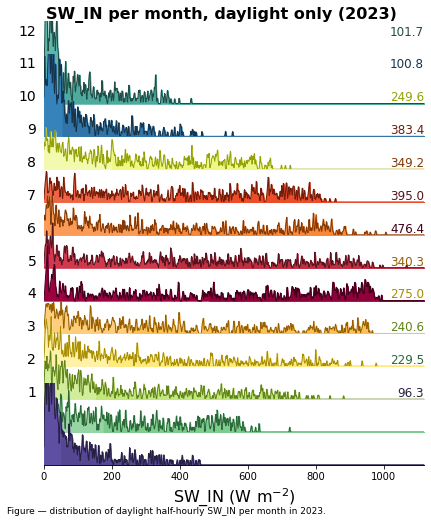

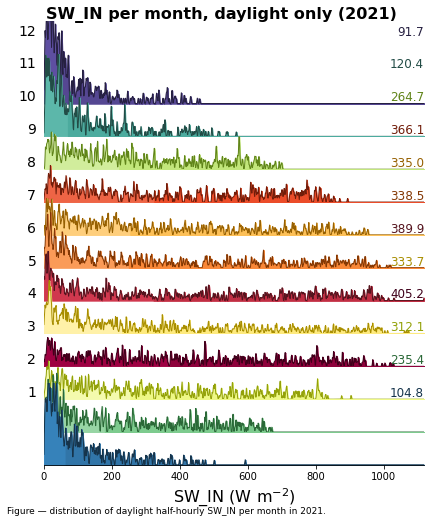

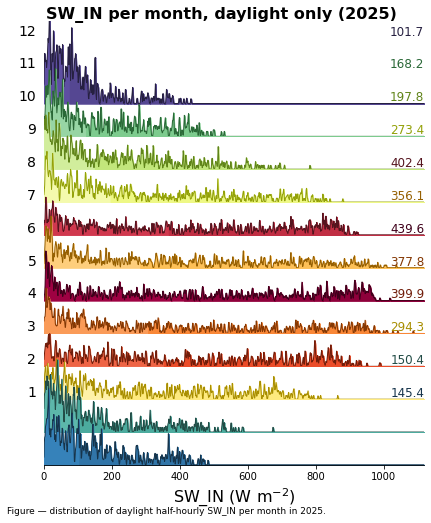

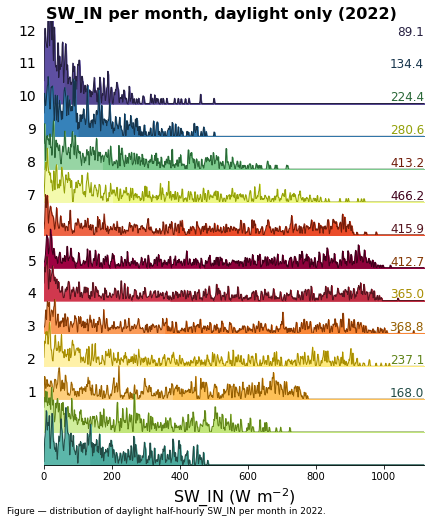

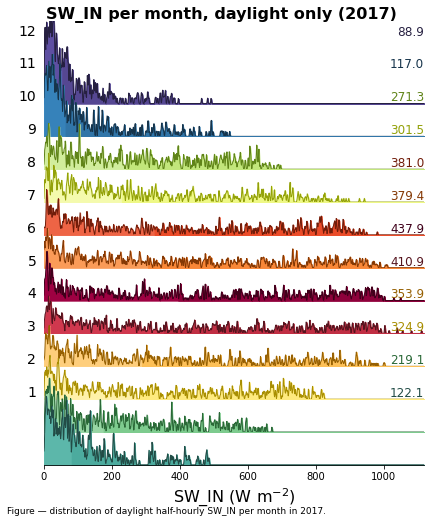

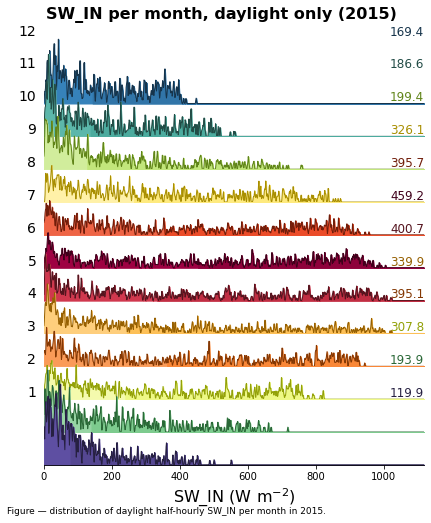

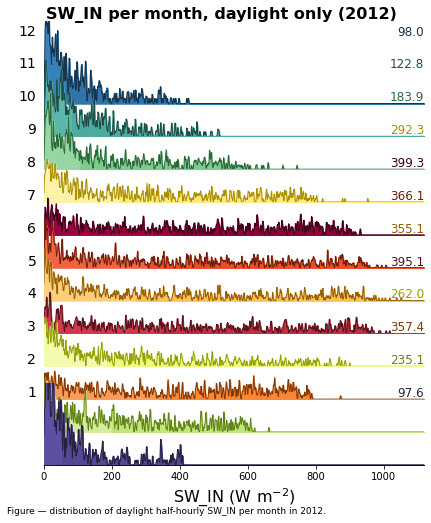

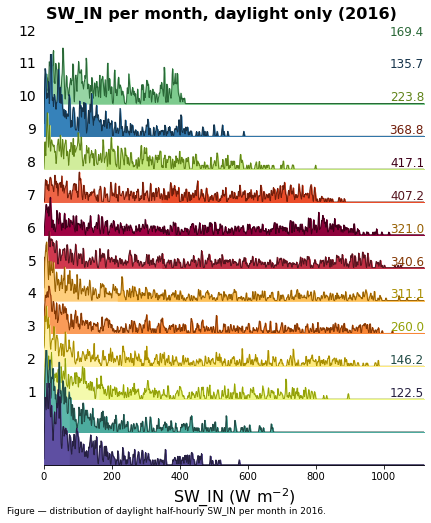

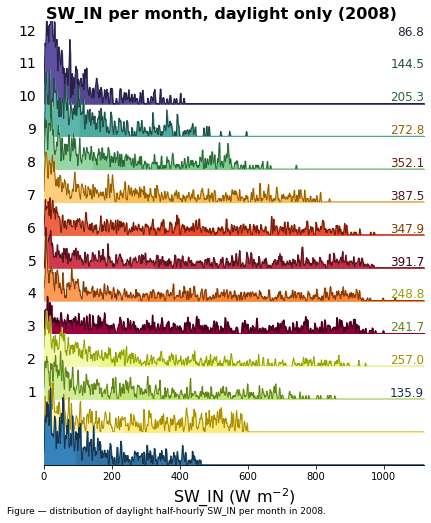

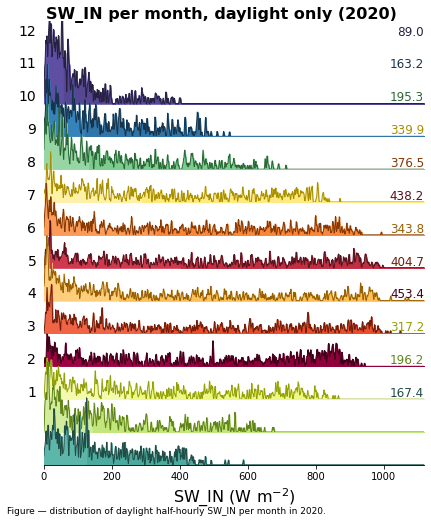

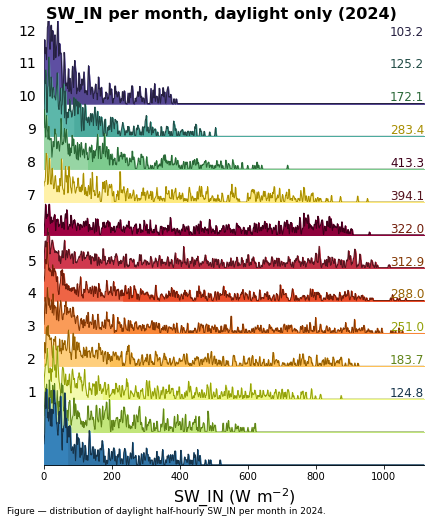

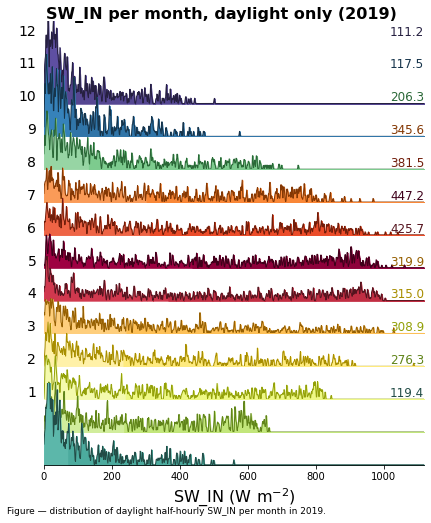

        figcap(rp.fig, f"distribution of daylight half-hourly {var} per month in {uy}.")


End of notebook

dt_string = datetime.now().strftime("%Y-%m-%d %H:%M:%S")
print(f"Finished. {dt_string}")
Finished. 2026-07-29 00:08:57
Back to top
