Time lag check on Level-0 fluxes

import matplotlib.gridspec as gridspec
import matplotlib.pyplot as plt
import matplotlib.transforms as transforms
import pandas as pd

from diive.core.plotting.plotfuncs import default_format
from diive.pkgs.analyses.histogram import Histogram
from diive.core.io.files import load_parquet

# pd.options.display.width = None
# pd.options.display.max_columns = None
pd.set_option('display.max_rows', 50)
pd.set_option('display.max_columns', 50)

# Source folders parquet
SOURCEFILE = r"..\0_data\OPENLAG-IRGA-Level-0_fluxnet_2005-2024\merged_all_years.parquet"
df = load_parquet(filepath=SOURCEFILE)

Loaded .parquet file ..\0_data\OPENLAG-IRGA-Level-0_fluxnet_2005-2024\merged_all_years.parquet (2.825 seconds).
    --> Detected time resolution of <30 * Minutes> / 30min

df

	AIR_CP	AIR_DENSITY	AIR_MV	AIR_RHO_CP	AOA_METHOD	AXES_ROTATION_METHOD	BADM_HEIGHTC	BADM_INSTPAIR_EASTWARD_SEP_GA_CH4	BADM_INSTPAIR_EASTWARD_SEP_GA_CO2	BADM_INSTPAIR_EASTWARD_SEP_GA_H2O	BADM_INSTPAIR_EASTWARD_SEP_GA_N2O	BADM_INSTPAIR_EASTWARD_SEP_GA_NONE	BADM_INSTPAIR_HEIGHT_SEP_GA_CH4	BADM_INSTPAIR_HEIGHT_SEP_GA_CO2	BADM_INSTPAIR_HEIGHT_SEP_GA_H2O	BADM_INSTPAIR_HEIGHT_SEP_GA_N2O	BADM_INSTPAIR_HEIGHT_SEP_GA_NONE	BADM_INSTPAIR_NORTHWARD_SEP_GA_CH4	BADM_INSTPAIR_NORTHWARD_SEP_GA_CO2	BADM_INSTPAIR_NORTHWARD_SEP_GA_H2O	BADM_INSTPAIR_NORTHWARD_SEP_GA_N2O	BADM_INSTPAIR_NORTHWARD_SEP_GA_NONE	BADM_INST_AVERAGING_INT	BADM_INST_GA_CP_TUBE_FLOW_RATE_GA_CH4	BADM_INST_GA_CP_TUBE_FLOW_RATE_GA_CO2	...	W_N2O_MEAS_COV	W_NONE_MEAS_COV	W_NUM_SPIKES	W_P25	W_P75	W_SIGMA	W_SKW	W_SPIKE_NREX	W_T_SONIC_COV	W_T_SONIC_COV_IBROM	W_T_SONIC_COV_IBROM_N0004	W_T_SONIC_COV_IBROM_N0008	W_T_SONIC_COV_IBROM_N0016	W_T_SONIC_COV_IBROM_N0032	W_T_SONIC_COV_IBROM_N0065	W_T_SONIC_COV_IBROM_N0133	W_T_SONIC_COV_IBROM_N0277	W_T_SONIC_COV_IBROM_N0614	W_T_SONIC_COV_IBROM_N1626	W_UNROT	W_U_COV	W_VM97_TEST	W_ZCD	ZL	ZL_UNCORR
TIMESTAMP_MIDDLE
2005-07-26 15:45:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-07-26 16:15:00	1005.85	1.10820	0.026137	1114.68	0.0	1.0	0.5	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	30.0	NaN	NaN	...	NaN	NaN	2.0	-0.102779	0.102941	0.174590	-0.032264	4.0	-0.003914	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	0.032976	-0.018731	800000001.0	101.0	0.040254	0.040012
2005-07-26 16:45:00	1005.85	1.10882	0.026122	1115.30	0.0	1.0	0.5	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	30.0	NaN	NaN	...	NaN	NaN	4.0	-0.114391	0.113579	0.194094	-0.059143	7.0	-0.006246	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	0.032289	-0.023372	800000000.0	65.0	0.045414	0.045130
2005-07-26 17:15:00	1005.84	1.10896	0.026119	1115.44	0.0	1.0	0.5	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	30.0	NaN	NaN	...	NaN	NaN	2.0	-0.132907	0.131552	0.215548	-0.005733	4.0	-0.008900	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	0.045077	-0.029726	800000001.0	32.0	0.046117	0.045808
2005-07-26 17:45:00	1005.85	1.10853	0.026129	1115.01	0.0	1.0	0.5	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	30.0	NaN	NaN	...	NaN	NaN	0.0	-0.133468	0.127750	0.212234	0.153462	0.0	-0.003965	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	0.047853	-0.031755	800000000.0	27.0	0.018531	0.018420
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
2024-12-31 22:45:00	1004.41	1.25419	0.023084	1259.72	0.0	1.0	0.5	NaN	34.0	34.0	NaN	NaN	NaN	0.0	0.0	NaN	NaN	NaN	-6.7	-6.7	NaN	NaN	30.0	NaN	NaN	...	NaN	NaN	3.0	-0.111392	0.114492	0.190033	-0.176250	4.0	0.005537	0.005025	0.000763	0.001235	0.001807	0.002463	0.003140	0.003740	0.004241	0.004626	0.004886	0.042161	-0.018129	800000001.0	62.0	-0.065476	-0.067415
2024-12-31 23:15:00	1004.47	1.25527	0.023064	1260.88	0.0	1.0	0.5	NaN	34.0	34.0	NaN	NaN	NaN	0.0	0.0	NaN	NaN	NaN	-6.7	-6.7	NaN	NaN	30.0	NaN	NaN	...	NaN	NaN	0.0	-0.113588	0.119482	0.183822	-0.110979	0.0	0.006780	0.006917	0.001333	0.002168	0.003103	0.004044	0.004919	0.005626	0.006149	0.006531	0.006785	0.048551	-0.020766	800000000.0	98.0	-0.062634	-0.064302
2024-12-31 23:45:00	1004.53	1.25646	0.023042	1262.15	0.0	1.0	0.5	NaN	34.0	34.0	NaN	NaN	NaN	0.0	0.0	NaN	NaN	NaN	-6.7	-6.7	NaN	NaN	30.0	NaN	NaN	...	NaN	NaN	0.0	-0.124939	0.126689	0.204007	-0.169266	0.0	0.009057	0.008272	0.001705	0.002606	0.003697	0.004808	0.005782	0.006554	0.007178	0.007689	0.008067	0.049272	-0.031205	800000000.0	56.0	-0.047652	-0.048824
2025-01-01 00:15:00	1004.57	1.25718	0.023029	1262.92	0.0	1.0	0.5	NaN	34.0	34.0	NaN	NaN	NaN	0.0	0.0	NaN	NaN	NaN	-6.7	-6.7	NaN	NaN	30.0	NaN	NaN	...	NaN	NaN	1.0	-0.089363	0.098554	0.156947	-0.450816	1.0	0.006265	0.006161	0.001511	0.002259	0.003114	0.003939	0.004635	0.005175	0.005586	0.005880	0.006068	0.021029	-0.014072	800000001.0	227.0	-0.109298	-0.111425
2025-01-01 00:45:00	1004.50	1.25592	0.023052	1261.57	0.0	1.0	0.5	NaN	34.0	34.0	NaN	NaN	NaN	0.0	0.0	NaN	NaN	NaN	-6.7	-6.7	NaN	NaN	30.0	NaN	NaN	...	NaN	NaN	0.0	-0.062098	0.062002	0.099869	0.106096	0.0	0.003648	0.003497	0.000915	0.001418	0.001958	0.002442	0.002822	0.003093	0.003278	0.003398	0.003466	0.012351	-0.005107	800000011.0	620.0	-0.255549	-0.262868

340723 rows × 551 columns

tlag_cols = [c for c in df.columns if "TLAG" in c]
tlag_cols

['CH4_TLAG_ACTUAL',
 'CH4_TLAG_MAX',
 'CH4_TLAG_MIN',
 'CH4_TLAG_NOMINAL',
 'CH4_TLAG_USED',
 'CO2_TLAG_ACTUAL',
 'CO2_TLAG_MAX',
 'CO2_TLAG_MIN',
 'CO2_TLAG_NOMINAL',
 'CO2_TLAG_USED',
 'H2O_TLAG_ACTUAL',
 'H2O_TLAG_MAX',
 'H2O_TLAG_MIN',
 'H2O_TLAG_NOMINAL',
 'H2O_TLAG_USED',
 'N2O_TLAG_ACTUAL',
 'N2O_TLAG_MAX',
 'N2O_TLAG_MIN',
 'N2O_TLAG_NOMINAL',
 'N2O_TLAG_USED',
 'NONE_TLAG_ACTUAL',
 'NONE_TLAG_MAX',
 'NONE_TLAG_MIN',
 'NONE_TLAG_NOMINAL',
 'NONE_TLAG_USED',
 'VM97_TLAG_HF',
 'VM97_TLAG_SF']

# # Check min lags CO2
# tlag_min_cols = [c for c in tlag_cols if c.endswith("_MIN")]
# tlag_min_cols = [c for c in tlag_cols if "CO2" in c]
# tlag_min = df[tlag_min_cols].copy()
# for c in tlag_min.columns:
#     tlag_min[c].plot(x_compat=True, title=c)
#     plt.show()

# # Check max lags
# tlag_max_cols = [c for c in tlag_cols if c.endswith("_MAX")]
# tlag_max_cols = [c for c in tlag_cols if "CO2" in c]
# tlag_max = df[tlag_max_cols].copy()
# for c in tlag_max.columns:
#     tlag_max[c].plot(x_compat=True, title=c)
#     plt.show()

tlag_actual_cols = [c for c in tlag_cols if c.endswith("_ACTUAL")]
# locs = (df.index.year == 2019) & (df.index.month >= 5)
locs = df.index.year == 2021
# locs = (df.index.year == 2017) | (df.index.year == 2018)
# locs = (df.index.year == 2017) & (df.index < "2017-03-15 23:59:00")
# locs = (df.index.year == 2019) & ((df.index > "2019-02-17 23:59:00") & (df.index <= "2019-04-30 23:59:00"))
# locs = (
#         ((df.index > "2019-01-01 23:59:00") & (df.index < "2019-02-18 07:00:00")) |
#         ((df.index > "2019-05-01 07:00:00") & (df.index < "2019-05-22 07:00:00"))
# )
# locs = (df.index > "2020-02-28 23:59:00") & (df.index < "2020-05-13 07:00:00")
# locs = (df.index > "2021-07-23 23:59:00")
tlag_actual = df[tlag_actual_cols][locs].copy()
first_date = tlag_actual.index[0].date()
last_date = tlag_actual.index[-1].date()

# for c in tlag_actual.columns:
#     tlag_actual[c].plot(x_compat=True, title=c)
#     plt.show()

# # gases = ['CO2']
# gases = ['CO2', 'H2O']
# vline1 = 0.05
# vline2 = 0.50
gases = ['CH4', 'N2O']
gases = ['CH4', 'N2O', 'H2O']
vline1 = 0.70
vline2 = 1.50
startbin = 0
endbin = 10

for gas in gases:
    gascol = f'{gas}_TLAG_ACTUAL'
    series = tlag_actual[gascol].copy()

    hist = Histogram(
        s=series,
        method='uniques',
        # n_bins=10,
        # ignore_fringe_bins=None
        ignore_fringe_bins=[5, 10]
    )

    results = hist.results
    peakbins = hist.peakbins

    locs = (results['BIN_START_INCL'] >= startbin) & (results['BIN_START_INCL'] <= endbin)
    results = results[locs].copy()

    gs = gridspec.GridSpec(1, 1)  # rows, cols
    gs.update(wspace=0.3, hspace=0.3, left=0.03, right=0.97, top=0.97, bottom=0.03)

    fig = plt.figure(layout="constrained", facecolor='white', figsize=(16, 9))
    gs = gridspec.GridSpec(2, 1, figure=fig)  # rows, cols
    ax = fig.add_subplot(gs[0, :])
    ax2 = fig.add_subplot(gs[1, :])

    hist_bins = results['BIN_START_INCL'].copy()
    hist_counts = results['COUNTS'].copy()
    bar_width = .05
    # bar_width = (hist_bins[1] - hist_bins[0]) * 1  # Calculate bar width
    args = dict(width=bar_width, align='edge')
    ax.bar(x=hist_bins, height=hist_counts, label='counts', zorder=90, color='#78909c', **args)
    # ax.set_xlim(hist_bins[0], hist_bins[-1])

    ax2.plot(series.index, series, alpha=0.5, c='#5f87ae', marker='.', ms=5, ls='none')

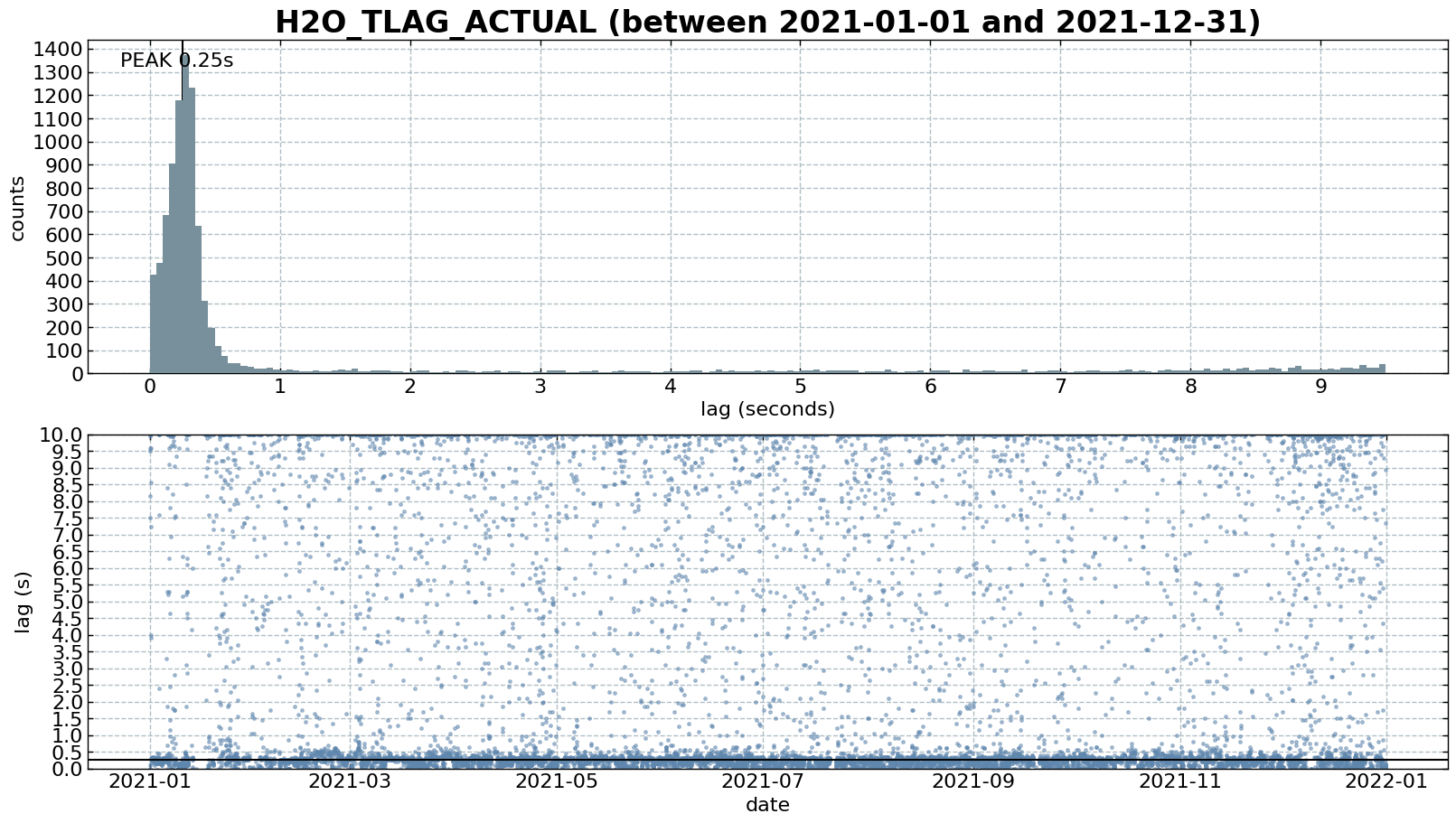

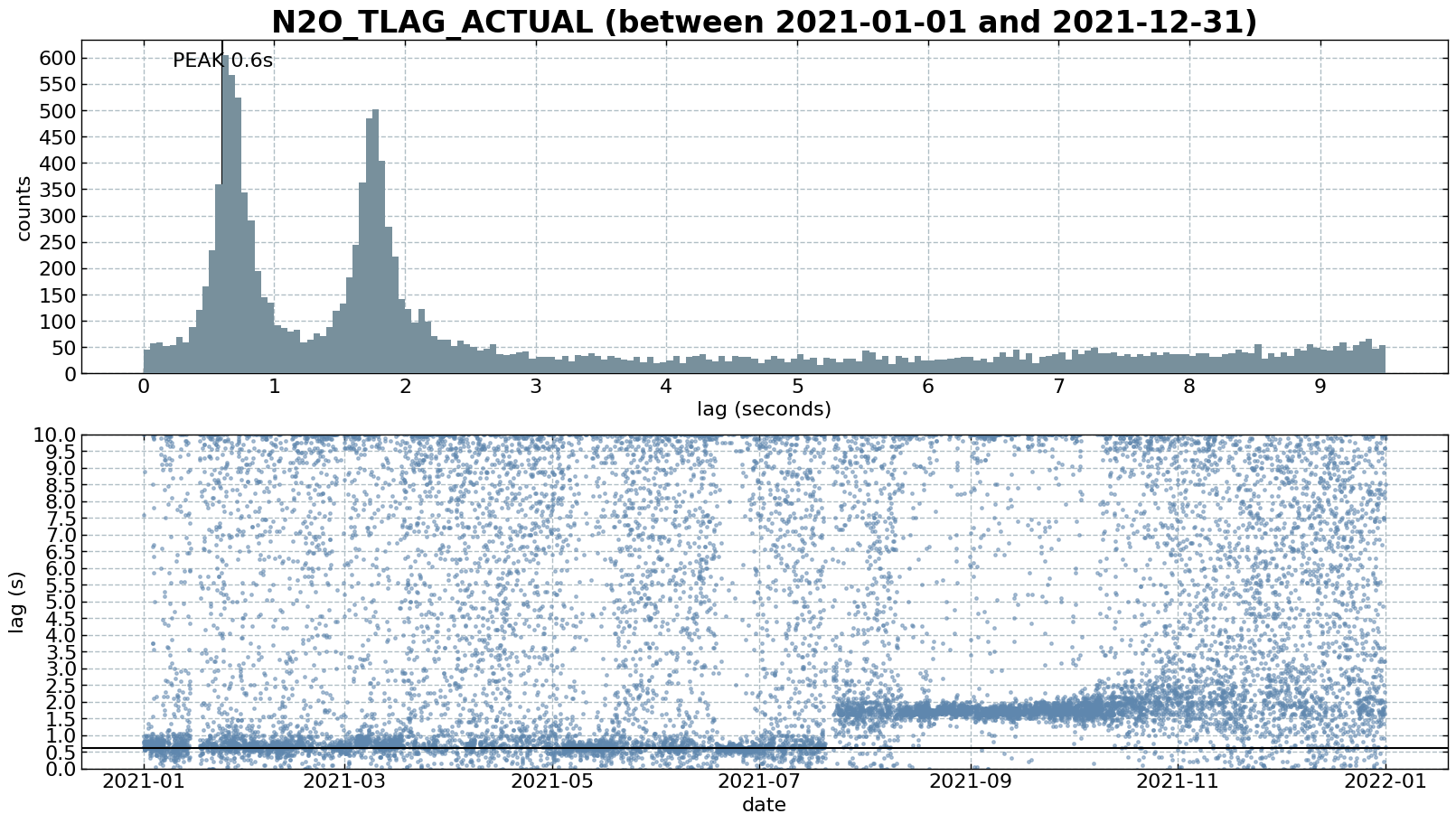

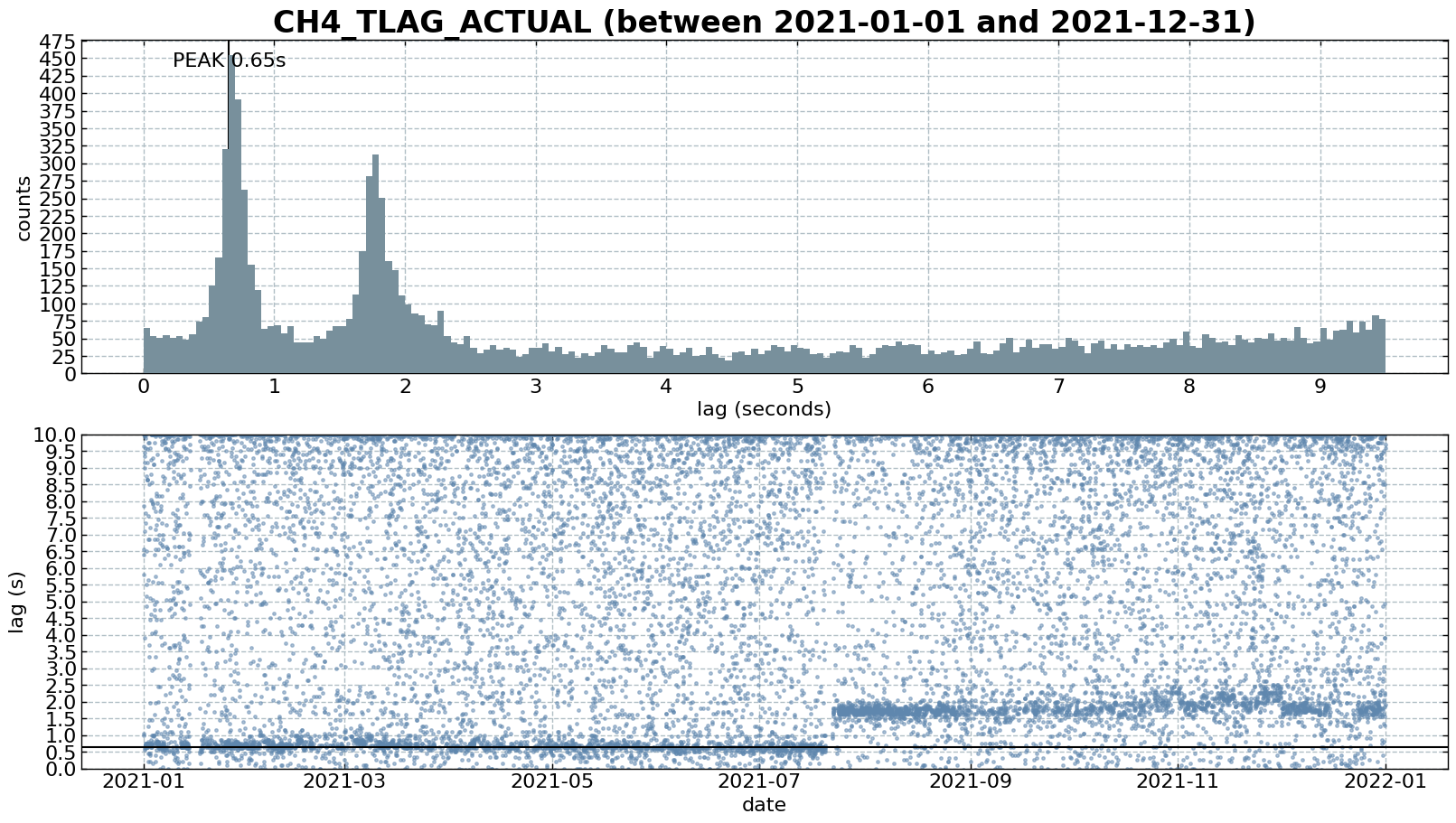

    title = f"{gascol} (between {first_date} and {last_date})"
