Problematic sonic periods 2021-2023

Author: Lukas Hörtnagl (holukas@ethz.ch)


IMPORTS#

  • This notebook uses diive (source code) to check eddy covariance fluxes for quality

import importlib.metadata
import warnings
from datetime import datetime
from pathlib import Path

import matplotlib.pyplot as plt
import pandas as pd
import scipy.stats
import seaborn as sns

from diive.core.dfun.stats import sstats  # Time series stats
from diive.core.io.files import save_parquet, load_parquet
from diive.core.plotting.timeseries import TimeSeries  # For simple (interactive) time series plotting
from diive.pkgs.flux.hqflux import analyze_highest_quality_flux
from diive.pkgs.fluxprocessingchain.fluxprocessingchain import FluxProcessingChain
from diive.pkgs.fluxprocessingchain.fluxprocessingchain import LoadEddyProOutputFiles

warnings.filterwarnings(action='ignore', category=FutureWarning)
warnings.filterwarnings(action='ignore', category=UserWarning)
version_diive = importlib.metadata.version("diive")
print(f"diive version: v{version_diive}")

diive version: v0.86.0


LOAD DATA (2 options)#

Option 2: Load data from parquet file#

  • Can be used to continue a previous session where another flux variable was already post-processed

  • For example, if you have already post-processed CO2 flux and now want to post-process H2O flux

  • Also detects time resolution of time series, this info was lost when saving to the parquet file

If you want to load data directly from a specific parquet file, you can specify its name and location here:

SOURCEDIR = r"../30_MERGE_DATA"
FILENAME = r"33.3_CH-CHA_IRGA+QCL+LGR+M10+MGMT_Level-1_eddypro_fluxnet_2005-2024.parquet"
FILEPATH = Path(SOURCEDIR) / FILENAME
print(f"Data will be loaded from the following file:\n{FILEPATH}")

Data will be loaded from the following file:
..\30_MERGE_DATA\33.3_CH-CHA_IRGA+QCL+LGR+M10+MGMT_Level-1_eddypro_fluxnet_2005-2024.parquet

maindf = load_parquet(filepath=FILEPATH)

Loaded .parquet file ..\30_MERGE_DATA\33.3_CH-CHA_IRGA+QCL+LGR+M10+MGMT_Level-1_eddypro_fluxnet_2005-2024.parquet (3.631 seconds).
    --> Detected time resolution of <30 * Minutes> / 30min

maindf
AIR_CP AIR_DENSITY AIR_MV AIR_RHO_CP AOA_METHOD AXES_ROTATION_METHOD ... ZL_UNCORR SWC_GF1_0.15_1_gfXG_MEAN3H TS_GF1_0.04_1_gfXG_MEAN3H TS_GF1_0.15_1_gfXG_MEAN3H TS_GF1_0.4_1_gfXG_MEAN3H PREC_RAIN_TOT_GF1_0.5_1_MEAN3H
TIMESTAMP_MIDDLE
2005-01-01 00:15:00 NaN NaN NaN NaN NaN NaN ... NaN NaN NaN NaN NaN NaN
2005-01-01 00:45:00 NaN NaN NaN NaN NaN NaN ... NaN NaN NaN NaN NaN NaN
2005-01-01 01:15:00 NaN NaN NaN NaN NaN NaN ... NaN NaN NaN NaN NaN NaN
2005-01-01 01:45:00 NaN NaN NaN NaN NaN NaN ... NaN NaN NaN NaN NaN NaN
2005-01-01 02:15:00 NaN NaN NaN NaN NaN NaN ... NaN NaN NaN NaN NaN NaN
... ... ... ... ... ... ... ... ... ... ... ... ... ...
2024-12-31 21:45:00 1008.04 1.26052 0.022931 1270.66 0.0 1.0 ... -0.060054 52.381843 3.543930 4.427296 5.526472 0.0
2024-12-31 22:15:00 1008.00 1.26101 0.022923 1271.10 0.0 1.0 ... -0.066556 52.423854 3.526228 4.431297 5.526472 0.0
2024-12-31 22:45:00 1008.00 1.26068 0.022929 1270.77 0.0 1.0 ... -0.067016 52.496681 3.502270 4.434965 5.525231 0.0
2024-12-31 23:15:00 1007.94 1.26203 0.022906 1272.05 0.0 1.0 ... -0.063931 52.495739 3.474913 4.437634 5.525231 0.0
2024-12-31 23:45:00 1007.89 1.26306 0.022888 1273.02 0.0 1.0 ... -0.048536 52.476295 3.443940 4.438413 5.525344 0.0

350640 rows × 517 columns

Accurate time periods of problematic sonic measurements (W_UNROT offsets)#

[print(c) for c in maindf.columns if "AOA" in c]

AOA_METHOD
VM97_AOA_HF

[None, None]

# maindf.loc[maindf.index.year == 2009, 'W_UNROT'].plot(x_compat=True)
# maindf.loc[maindf.index.year == 2023, 'VM97_AOA_HF'].resample('D').median().plot(x_compat=True)

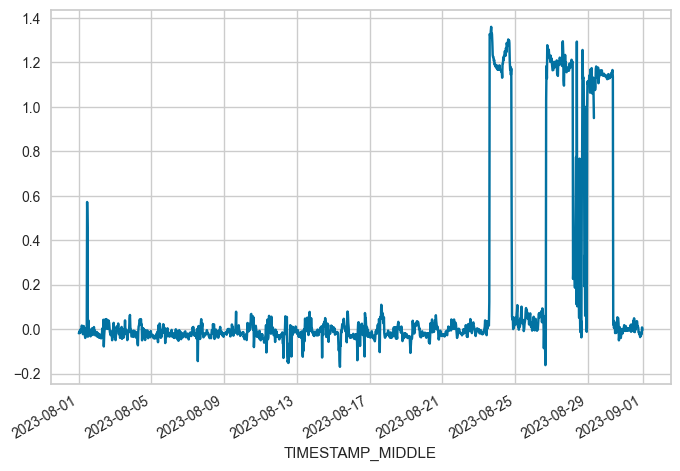

maindf.loc[(maindf.index.year == 2023) & (maindf.index.month == 8), 'W_UNROT'].plot(x_compat=True);
../../_images/51766422576fd34e33913794419ca723b00b4ba09ba078aaaf4a5785975e4417.png
Problematic time periods originally from documentation by YW:
REMOVE_DATES = [
    1  ['2021-12-10', '2021-12-23'], # sonic problem
    2  ['2022-11-18 00:00', '2022-11-22 00:00'], # sonic w offsets
    3  ['2022-12-16 00:00', '2022-12-17 12:00'], # sonic w offsets
    4  ['2023-04-17 00:00', '2023-04-20 09:00'], # sonic w offsets
    5  ['2023-07-21 16:00', '2023-07-21 21:00'], # sonic w offsets
    6  ['2023-08-23 15:00', '2023-08-24 22:00'], # sonic w offsets
    7  ['2023-08-26 14:00', '2023-08-30 12:00'], # sonic w offsets
    8  ['2023-09-14 00:00', '2023-09-18 19:00'], # sonic w offsets
    9  ['2023-09-22 02:00', '2023-09-26 18:00'], # sonic w offsets
    10 ['2023-09-28 10:00', '2023-09-29 16:00'] # sonic w offsets
]

2021: not offset issue, use AoA flag#

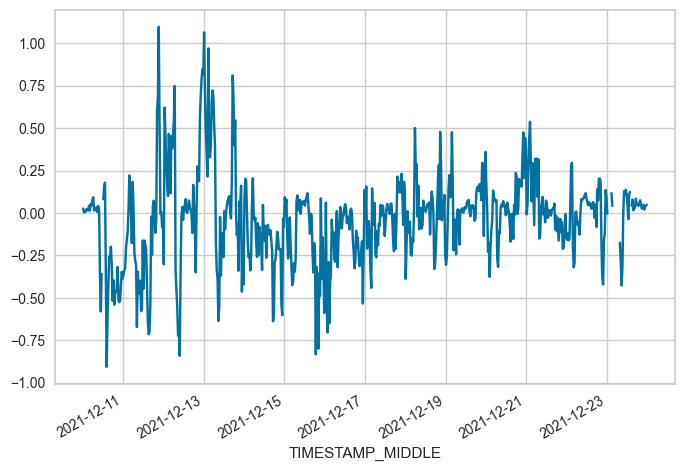

# Phase 1
FROM = "2021-12-10 00:15"
TO = "2021-12-23 23:45"
locs = (maindf.index >= FROM) & (maindf.index <= TO)
subset = maindf.loc[locs, 'W_UNROT'].copy()
subset.plot(x_compat=True)
print(f"OFFSET betwenn {FROM} and {TO}: {subset.mean()}")

OFFSET betwenn 2021-12-10 00:15 and 2021-12-23 23:45: -0.0359148000680851
../../_images/00cd7d60dd6a0d656e2b61ebcc166c24a5719f6d112a12ddf37198462eb12be1.png

2022: short periods, use with other data#

# Phase 2

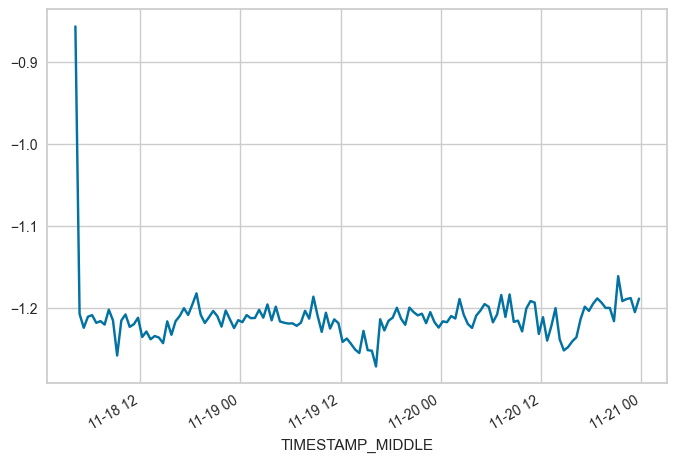

FROM = "2022-11-18 04:15"
TO = "2022-11-20 23:45"
locs = (maindf.index >= FROM) & (maindf.index <= TO)
subset = maindf.loc[locs, 'W_UNROT'].copy()
subset.plot(x_compat=True)
print(f"OFFSET betwenn {FROM} and {TO}: {subset.mean()}")

OFFSET betwenn 2022-11-18 04:15 and 2022-11-20 23:45: -1.212554544117647
../../_images/e17102de9efe786611bfbc7377994ce1e0d904ea31873ca4f002c723139352f9.png

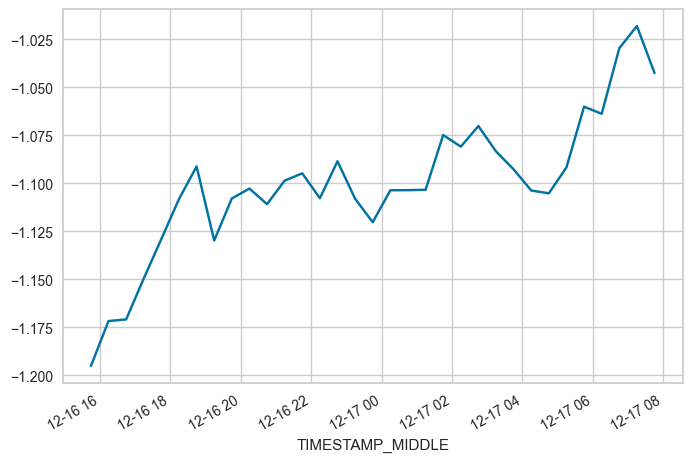

# Phase 3
FROM = "2022-12-16 15:45"
TO = "2022-12-17 07:45"
locs = (maindf.index >= FROM) & (maindf.index <= TO)
subset = maindf.loc[locs, 'W_UNROT'].copy()
subset.plot(x_compat=True)
print(f"OFFSET betwenn {FROM} and {TO}: {subset.mean()}")

OFFSET betwenn 2022-12-16 15:45 and 2022-12-17 07:45: -1.1005000000000003
../../_images/97b734c364907a45446b27bd4fe22a6dfc73bd29141c8e53e56ee8eaec76ccf5.png

2023: recalculate fluxes using wind speed measurement offset for W in EddyPro#

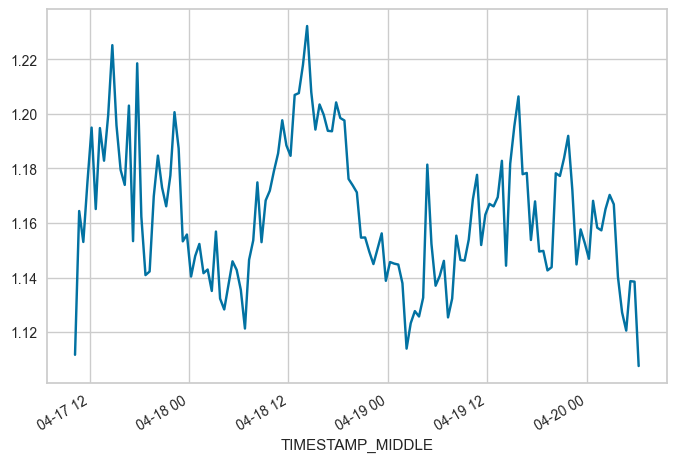

# Phase 4
FROM = "2023-04-17 10:15"
TO = "2023-04-20 06:15"
locs = (maindf.index >= FROM) & (maindf.index <= TO)
subset = maindf.loc[locs, 'W_UNROT'].copy()
subset.plot(x_compat=True)
print(f"OFFSET between {FROM} and {TO}: {subset.mean()}")

OFFSET between 2023-04-17 10:15 and 2023-04-20 06:15: 1.163599708029197
../../_images/16b413e68caf1b71ed84e5f98666c06f9d26f132877fbd3eb9e02f3d389e19f2.png

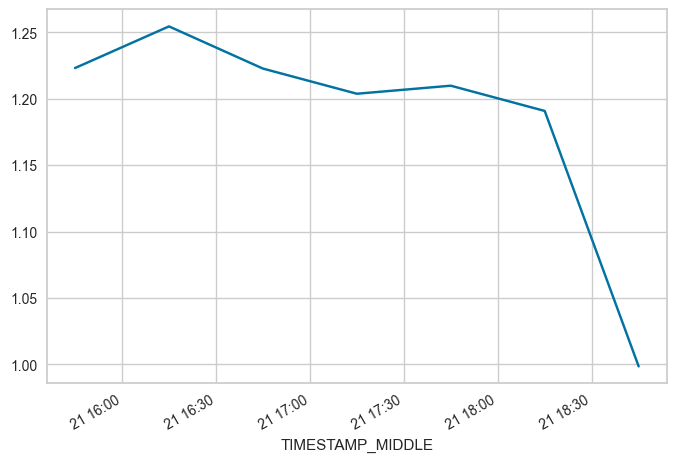

# Phase 5
FROM = "2023-07-21 15:45"
TO = "2023-07-21 18:45"
locs = (maindf.index >= FROM) & (maindf.index <= TO)
subset = maindf.loc[locs, 'W_UNROT'].copy()
subset.plot(x_compat=True)
print(f"OFFSET between {FROM} and {TO}: {subset.mean()}")

OFFSET between 2023-07-21 15:45 and 2023-07-21 18:45: 1.1862112857142857
../../_images/e17cf454f1d44bafecb88ce37531ba8072a22fc3248750f37488dd083e0627c0.png

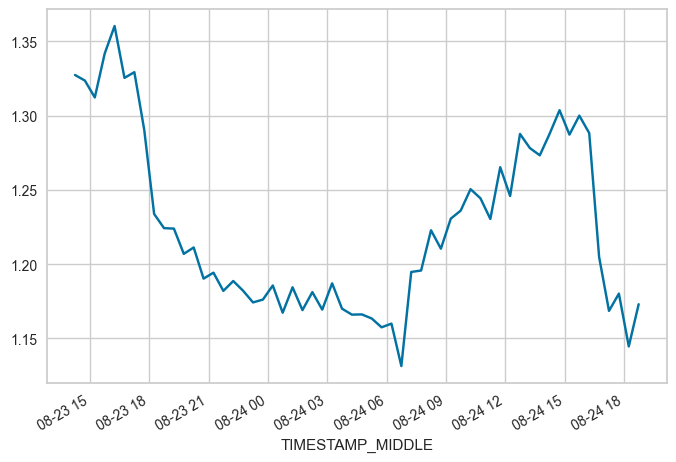

# Phase 6
FROM = "2023-08-23 14:15"
TO = "2023-08-24 18:45"
locs = (maindf.index >= FROM) & (maindf.index <= TO)
subset = maindf.loc[locs, 'W_UNROT'].copy()
subset.plot(x_compat=True)
print(f"OFFSET between {FROM} and {TO}: {subset.mean()}")

OFFSET between 2023-08-23 14:15 and 2023-08-24 18:45: 1.2251075862068965
../../_images/dac28f84f03e160144e39e34a481b042af2c4db16b2dfe01c1e4c4ee38f86cde.png

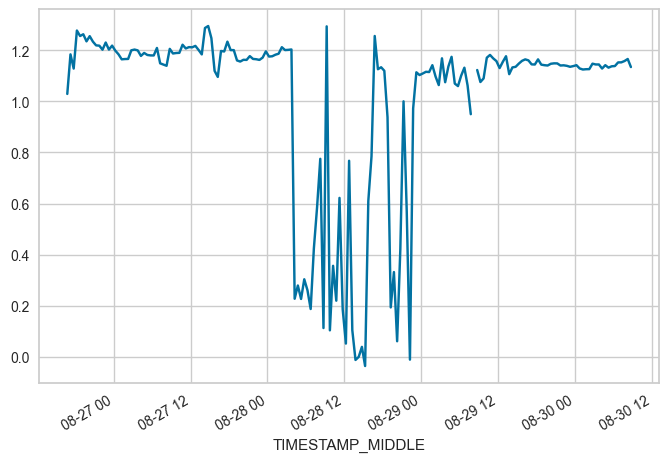

# Phase 7
FROM = "2023-08-26 16:45"
TO = "2023-08-30 08:45"
locs = (maindf.index >= FROM) & (maindf.index <= TO)
subset = maindf.loc[locs, 'W_UNROT'].copy()
subset.plot(x_compat=True)
print(f"OFFSET between {FROM} and {TO}: {subset.mean()}")

OFFSET between 2023-08-26 16:45 and 2023-08-30 08:45: 1.0117830873920455
../../_images/7d35072e5c7514c614a36d2f7d4dbaf8b0f4b9b7e8acb7b1c91639f2b2d6ce21.png

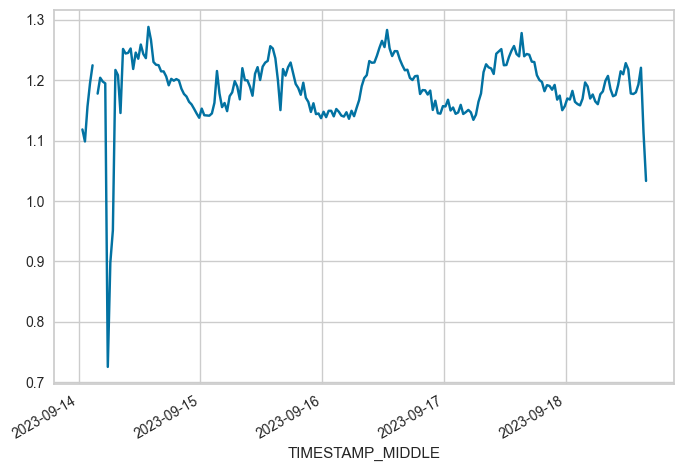

# Phase 8
FROM = "2023-09-14 00:45"
TO = "2023-09-18 15:45"
locs = (maindf.index >= FROM) & (maindf.index <= TO)
subset = maindf.loc[locs, 'W_UNROT'].copy()
subset.plot(x_compat=True)
print(f"OFFSET between {FROM} and {TO}: {subset.mean()}")

OFFSET between 2023-09-14 00:45 and 2023-09-18 15:45: 1.187201864864865
../../_images/bed17cc064e751c6607af46f3bca7c1323e0ca0919214680f11e8c687b0e9b55.png

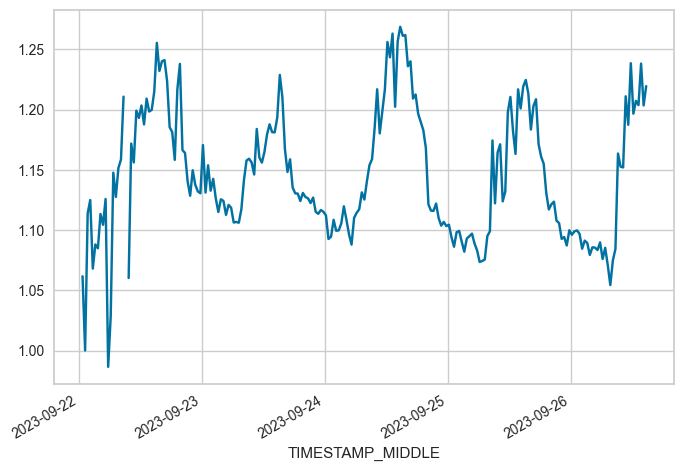

# Phase 9
FROM = "2023-09-22 00:45"
TO = "2023-09-26 14:45"
locs = (maindf.index >= FROM) & (maindf.index <= TO)
subset = maindf.loc[locs, 'W_UNROT'].copy()
subset.plot(x_compat=True)
print(f"OFFSET between {FROM} and {TO}: {subset.mean()}")

OFFSET between 2023-09-22 00:45 and 2023-09-26 14:45: 1.1451817454545454
../../_images/dbc16a8c54a99841b86c1192f909fb50a7f89c45c3149aa3059c2e4a459a75b7.png

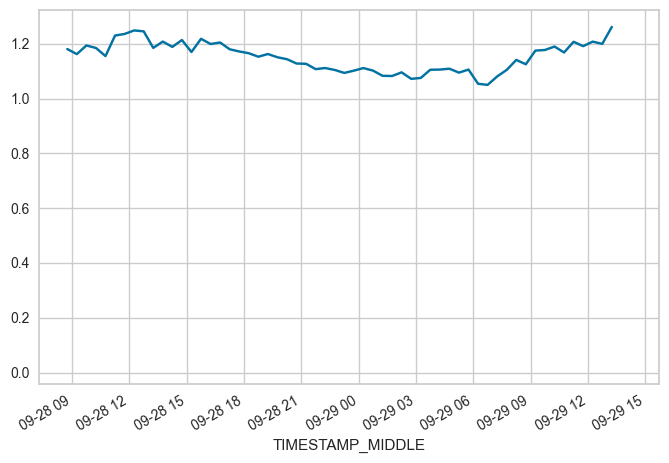

# Phase 10
FROM = "2023-09-28 08:45"
TO = "2023-09-29 14:15"
locs = (maindf.index >= FROM) & (maindf.index <= TO)
subset = maindf.loc[locs, 'W_UNROT'].copy()
subset.plot(x_compat=True)
print(f"OFFSET between {FROM} and {TO}: {subset.mean()}")

OFFSET between 2023-09-28 08:45 and 2023-09-29 14:15: 1.132388540677966
../../_images/b1fcb19d596ec59591e88abbb36f8ce58be7d838157adc041a870b49d7f8aae6.png

End of notebook#

Congratulations, you reached the end of this notebook! Before you go let’s store your finish time.

dt_string = datetime.now().strftime("%Y-%m-%d %H:%M:%S")
print(f"Finished. {dt_string}")

Finished. 2025-03-01 18:58:19
