Flux: Monthly heatmaps of NEE (2005-2024) and FN2O (2012-2022)

Author: Lukas Hörtnagl (holukas@ethz.ch)

Imports

import importlib.metadata
import warnings
from datetime import datetime
from pathlib import Path
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec
from matplotlib.colors import LinearSegmentedColormap
import diive as dv
from diive.core.io.files import load_parquet
warnings.filterwarnings(action='ignore', category=FutureWarning)
warnings.filterwarnings(action='ignore', category=UserWarning)
version_diive = importlib.metadata.version("diive")
print(f"diive version: v{version_diive}")

diive version: v0.87.0

Load data

SOURCEDIR = r"../80_FINALIZE"
FILENAME = r"81.1_FLUXES_M15_MGMT_L4.2_NEE_GPP_RECO_LE_H_FN2O_FCH4.parquet"
FILEPATH = Path(SOURCEDIR) / FILENAME
df = load_parquet(filepath=FILEPATH)
df

Loaded .parquet file ..\80_FINALIZE\81.1_FLUXES_M15_MGMT_L4.2_NEE_GPP_RECO_LE_H_FN2O_FCH4.parquet (3.557 seconds).
    --> Detected time resolution of <30 * Minutes> / 30min

	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-12	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-18	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-24	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-6	.SWC_GF1_0.15_1_gfXG_MEAN3H-12	.SWC_GF1_0.15_1_gfXG_MEAN3H-18	.SWC_GF1_0.15_1_gfXG_MEAN3H-24	.SWC_GF1_0.15_1_gfXG_MEAN3H-6	.TS_GF1_0.04_1_gfXG_MEAN3H-12	.TS_GF1_0.04_1_gfXG_MEAN3H-18	.TS_GF1_0.04_1_gfXG_MEAN3H-24	.TS_GF1_0.04_1_gfXG_MEAN3H-6	.TS_GF1_0.15_1_gfXG_MEAN3H-12	.TS_GF1_0.15_1_gfXG_MEAN3H-18	.TS_GF1_0.15_1_gfXG_MEAN3H-24	...	GPP_NT_CUT_50_gfRF	RECO_DT_CUT_50_gfRF	GPP_DT_CUT_50_gfRF	RECO_DT_CUT_50_gfRF_SD	GPP_DT_CUT_50_gfRF_SD	G_GF1_0.03_1	G_GF1_0.03_2	G_GF1_0.05_1	G_GF1_0.05_2	G_GF4_0.02_1	G_GF5_0.02_1	LW_OUT_T1_2_1	NETRAD_T1_2_1	PPFD_OUT_T1_2_2	SW_OUT_T1_2_1
TIMESTAMP_MIDDLE
2005-01-01 00:15:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.918553	0.093071	0.0	0.080016	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 00:45:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.917972	0.092682	0.0	0.079688	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 01:15:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.163001	0.093071	0.0	0.080016	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 01:45:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.190890	0.093071	0.0	0.080016	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 02:15:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.167042	0.092295	0.0	0.079361	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
2024-12-31 21:45:00	0.0	0.0	0.0	0.0	52.229004	52.226300	52.226689	52.216796	3.458828	3.150402	3.115260	3.660897	4.335667	4.347764	4.385967	...	-0.334996	1.091028	0.0	0.265808	0.0	NaN	NaN	-9.097370	-7.880106	NaN	NaN	311.167160	-5.883538	0.0	0.0
2024-12-31 22:15:00	0.0	0.0	0.0	0.0	52.227858	52.227986	52.224528	52.214211	3.522570	3.187638	3.103440	3.643396	4.338551	4.342880	4.379524	...	-0.310533	1.078751	0.0	0.264327	0.0	NaN	NaN	-9.561669	-8.172388	NaN	NaN	310.079817	-6.269816	0.0	0.0
2024-12-31 22:45:00	0.0	0.0	0.0	0.0	52.226640	52.229837	52.222456	52.209876	3.578745	3.230037	3.095339	3.624025	4.343767	4.339440	4.372636	...	-0.225651	1.079759	0.0	0.264447	0.0	NaN	NaN	-10.138718	-8.527732	NaN	NaN	309.604987	-6.934394	0.0	0.0
2024-12-31 23:15:00	0.0	0.0	0.0	0.0	52.224375	52.231151	52.221324	52.238293	3.624160	3.278488	3.093806	3.601135	4.350872	4.336333	4.366082	...	-0.558285	1.062164	0.0	0.262373	0.0	NaN	NaN	-10.649611	-8.871628	NaN	NaN	308.812117	-5.696729	0.0	0.0
2024-12-31 23:45:00	0.0	0.0	0.0	0.0	52.222007	52.230632	52.222701	52.273511	3.656167	3.331678	3.103003	3.579020	4.360311	4.334225	4.359530	...	-0.317543	1.047483	0.0	0.260688	0.0	NaN	NaN	-10.944774	-9.138224	NaN	NaN	307.372117	-8.102484	0.0	0.0

350640 rows × 812 columns

# [print(c) for c in df.columns if "FN2O" in c];

NEE

nee = df['NEE_L3.1_L3.3_CUT_50_QCF_gfRF'].copy()
nee_var = "NEE"
nee_units = r"$\mathrm{\mu mol\ CO_{2}\ m^{-2}\ s^{-1}}$"
nee_zlabel = f"{nee_var} ({nee_units})"
nee

TIMESTAMP_MIDDLE
2005-01-01 00:15:00    0.911990
2005-01-01 00:45:00    0.910926
2005-01-01 01:15:00    1.667542
2005-01-01 01:45:00    1.639653
2005-01-01 02:15:00    1.660211
                         ...
2024-12-31 21:45:00    1.160720
2024-12-31 22:15:00    1.131454
2024-12-31 22:45:00    1.046967
2024-12-31 23:15:00    1.372674
2024-12-31 23:45:00    1.126110
Freq: 30min, Name: NEE_L3.1_L3.3_CUT_50_QCF_gfRF, Length: 350640, dtype: float64

FN2O

Flux

fluxcol = 'FN2O_L3.1_L3.3_CUT_50_QCF_gfRF'
fn2o = df[[fluxcol]].copy()
fn2o['YEARMONTH'] = fn2o.index.year.astype(str) + "-" + fn2o.index.month.astype(str).str.zfill(2)
fn2o_var = r"$\mathrm{N_{2}O\ flux}$"
fn2o_units = r"$\mathrm{nmol\ N_{2}O\ m^{-2}\ s^{-1}}$"
fn2o_zlabel = f"{fn2o_var} ({fn2o_units})"
fn2o

	FN2O_L3.1_L3.3_CUT_50_QCF_gfRF	YEARMONTH
TIMESTAMP_MIDDLE
2005-01-01 00:15:00	NaN	2005-01
2005-01-01 00:45:00	NaN	2005-01
2005-01-01 01:15:00	NaN	2005-01
2005-01-01 01:45:00	NaN	2005-01
2005-01-01 02:15:00	NaN	2005-01
...	...	...
2024-12-31 21:45:00	NaN	2024-12
2024-12-31 22:15:00	NaN	2024-12
2024-12-31 22:45:00	NaN	2024-12
2024-12-31 23:15:00	NaN	2024-12
2024-12-31 23:45:00	NaN	2024-12

350640 rows × 2 columns

Flag

flagcol = 'FLAG_FN2O_L3.1_L3.3_CUT_50_QCF_gfRF_ISFILLED'
flag_fn2o = df[flagcol].copy()
flag_fn2o = flag_fn2o.fillna(1)
flag_fn2o.loc[flag_fn2o > 1] = 1  # Some locations have flag values > 1 due to MDS gap-filling
flag_fn2o = pd.DataFrame(flag_fn2o)
flag_fn2o['YEARMONTH'] = flag_fn2o.index.year.astype(str) + "-" + flag_fn2o.index.month.astype(str).str.zfill(2)
flag_fn2o = flag_fn2o.groupby('YEARMONTH').sum()

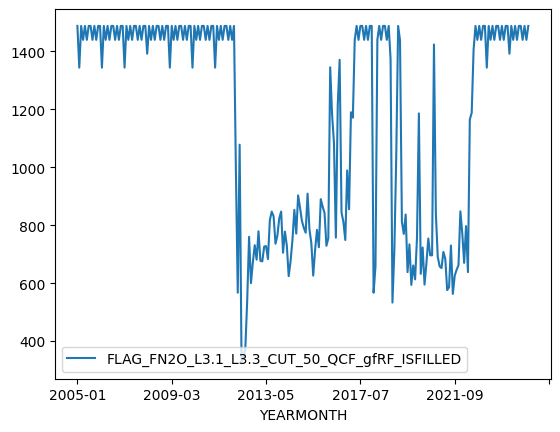

flag_fn2o.plot(x_compat=True);
flag_fn2o

	FLAG_FN2O_L3.1_L3.3_CUT_50_QCF_gfRF_ISFILLED
YEARMONTH
2005-01	1488.0
2005-02	1344.0
2005-03	1488.0
2005-04	1440.0
2005-05	1488.0
...	...
2024-08	1488.0
2024-09	1440.0
2024-10	1488.0
2024-11	1440.0
2024-12	1488.0

240 rows × 1 columns

Merge gap-fill counts

# Rename the flag column in _df for clarity after merging
flag_fn2o = flag_fn2o.rename(columns={'FLAG_FN2O_L3.1_L3.3_CUT_50_QCF_gfRF_ISFILLED': 'GapFillCount'})

# Merge fn2o with flag_fn2o to bring the monthly gap-fill counts into fn2o's DataFrame
# We'll merge on 'YEARMONTH'
fn2o_merged = pd.merge(fn2o, flag_fn2o, on='YEARMONTH', how='left')

# Restore the original TIMESTAMP_MIDDLE as index and drop the helper YEARMONTH column
fn2o_merged = fn2o_merged.set_index(fn2o.index)
fn2o_merged = fn2o_merged.drop(columns=['YEARMONTH'])

# Filter the flux data based on the 'GapFillCount'
# Keep flux data only where 'GapFillCount' is less than 1000
fn2o_filtered = fn2o_merged[fn2o_merged['GapFillCount'] < 1300]
fn2o_final = fn2o_filtered[fluxcol] # Use fn2o.name to get the original column name

fn2o_final = fn2o_final.reindex(fn2o.index)
fn2o_final

TIMESTAMP_MIDDLE
2005-01-01 00:15:00   NaN
2005-01-01 00:45:00   NaN
2005-01-01 01:15:00   NaN
2005-01-01 01:45:00   NaN
2005-01-01 02:15:00   NaN
                       ..
2024-12-31 21:45:00   NaN
2024-12-31 22:15:00   NaN
2024-12-31 22:45:00   NaN
2024-12-31 23:15:00   NaN
2024-12-31 23:45:00   NaN
Freq: 30min, Name: FN2O_L3.1_L3.3_CUT_50_QCF_gfRF, Length: 350640, dtype: float64

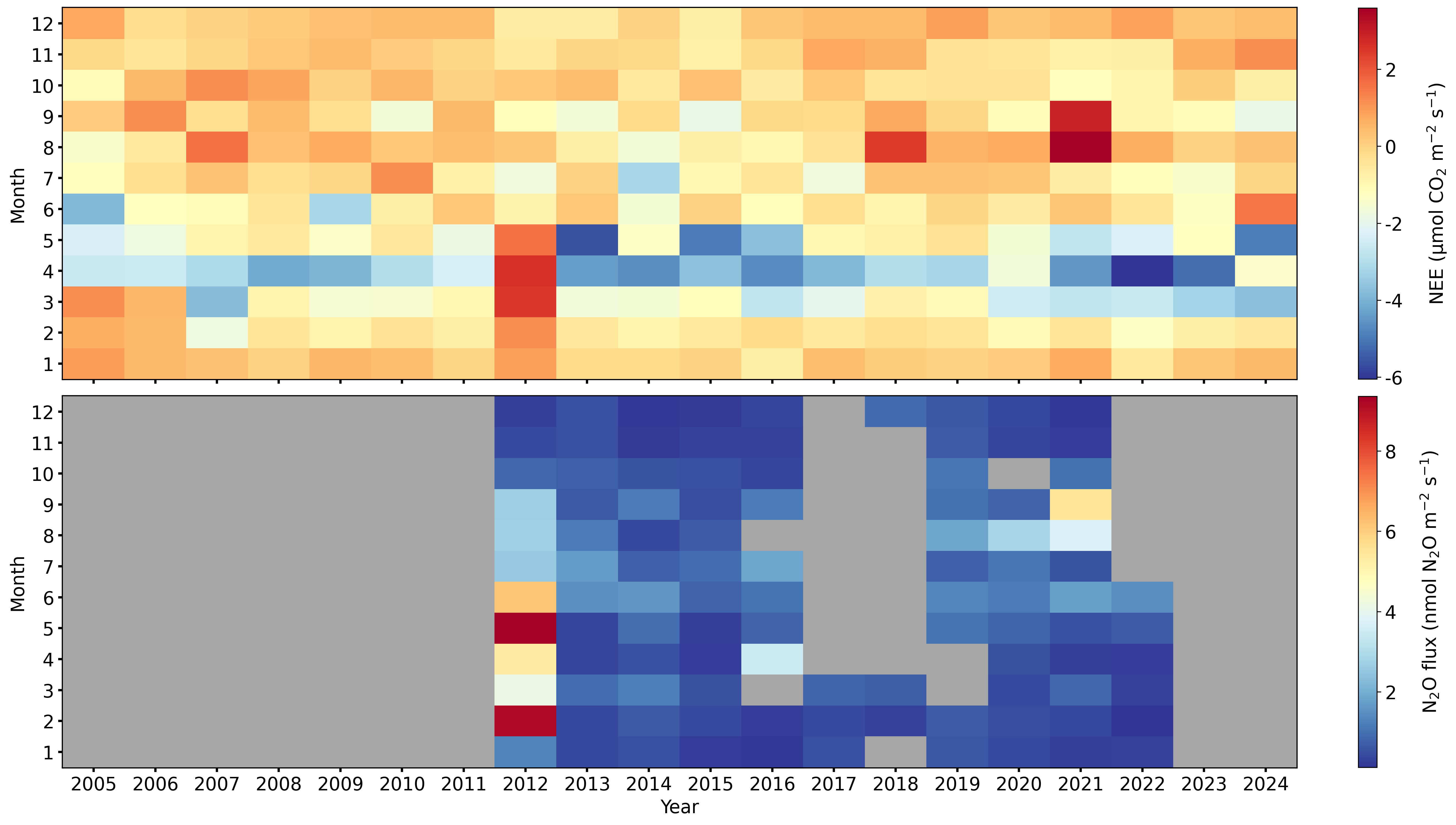

Heatmap

fig = plt.figure(facecolor='white', figsize=(17.6, 9.9), layout="constrained", dpi=300)
gs = gridspec.GridSpec(2, 1, figure=fig)  # rows, cols
# gs.update(wspace=0.5, hspace=0.3, left=0.03, right=0.97, top=0.97, bottom=0.03)
ax1 = fig.add_subplot(gs[0, 0])
ax2 = fig.add_subplot(gs[1, 0])
settings = dict(ax_orientation='horizontal', cb_digits_after_comma=0, show_values=False)
dv.heatmapyearmonth(ax=ax1, series=nee, agg='mean', zlabel=nee_zlabel, **settings).plot()
dv.heatmapyearmonth(ax=ax2, series=fn2o_final, agg='mean', zlabel=fn2o_zlabel, color_bad='#a6a6a6', **settings).plot()
ax1.set_xlabel("")
ax1.set_xticklabels("")
ax1.set_title("")
ax2.set_title("")
fig.show()

Save figure to file

fig.savefig('FLUX_NEE_FN2O_MonthlyHeatmaps_Figure1.png', dpi=300)

End of notebook

dt_string = datetime.now().strftime("%Y-%m-%d %H:%M:%S")
print(f"Finished. {dt_string}")

Finished. 2025-07-01 16:43:59
