Meteo: Shot-wave incoming radiation (SW_IN) (2005-2024)

Author: Lukas Hörtnagl (holukas@ethz.ch)

Variable

varname = 'SW_IN_T1_2_1'
var = "SW_IN"  # Name shown in plots
units = r"($\mathrm{W\ m^{-2}}$)"

Imports

import importlib.metadata
import warnings
from datetime import datetime
from pathlib import Path
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec

import diive as dv
from diive.core.io.files import save_parquet, load_parquet
from diive.core.plotting.cumulative import CumulativeYear
from diive.core.plotting.bar import LongtermAnomaliesYear

warnings.filterwarnings(action='ignore', category=FutureWarning)
warnings.filterwarnings(action='ignore', category=UserWarning)
version_diive = importlib.metadata.version("diive")
print(f"diive version: v{version_diive}")

diive version: v0.87.0

Load data

SOURCEDIR = r"../80_FINALIZE"
FILENAME = r"81.1_FLUXES_M15_MGMT_L4.2_NEE_GPP_RECO_LE_H_FN2O_FCH4.parquet"
FILEPATH = Path(SOURCEDIR) / FILENAME
df = load_parquet(filepath=FILEPATH)
df

Loaded .parquet file ..\80_FINALIZE\81.1_FLUXES_M15_MGMT_L4.2_NEE_GPP_RECO_LE_H_FN2O_FCH4.parquet (4.571 seconds).
    --> Detected time resolution of <30 * Minutes> / 30min

	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-12	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-18	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-24	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-6	.SWC_GF1_0.15_1_gfXG_MEAN3H-12	.SWC_GF1_0.15_1_gfXG_MEAN3H-18	.SWC_GF1_0.15_1_gfXG_MEAN3H-24	.SWC_GF1_0.15_1_gfXG_MEAN3H-6	.TS_GF1_0.04_1_gfXG_MEAN3H-12	.TS_GF1_0.04_1_gfXG_MEAN3H-18	.TS_GF1_0.04_1_gfXG_MEAN3H-24	.TS_GF1_0.04_1_gfXG_MEAN3H-6	.TS_GF1_0.15_1_gfXG_MEAN3H-12	.TS_GF1_0.15_1_gfXG_MEAN3H-18	.TS_GF1_0.15_1_gfXG_MEAN3H-24	...	GPP_NT_CUT_50_gfRF	RECO_DT_CUT_50_gfRF	GPP_DT_CUT_50_gfRF	RECO_DT_CUT_50_gfRF_SD	GPP_DT_CUT_50_gfRF_SD	G_GF1_0.03_1	G_GF1_0.03_2	G_GF1_0.05_1	G_GF1_0.05_2	G_GF4_0.02_1	G_GF5_0.02_1	LW_OUT_T1_2_1	NETRAD_T1_2_1	PPFD_OUT_T1_2_2	SW_OUT_T1_2_1
TIMESTAMP_MIDDLE
2005-01-01 00:15:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.918553	0.093071	0.0	0.080016	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 00:45:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.917972	0.092682	0.0	0.079688	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 01:15:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.163001	0.093071	0.0	0.080016	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 01:45:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.190890	0.093071	0.0	0.080016	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 02:15:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.167042	0.092295	0.0	0.079361	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
2024-12-31 21:45:00	0.0	0.0	0.0	0.0	52.229004	52.226300	52.226689	52.216796	3.458828	3.150402	3.115260	3.660897	4.335667	4.347764	4.385967	...	-0.334996	1.091028	0.0	0.265808	0.0	NaN	NaN	-9.097370	-7.880106	NaN	NaN	311.167160	-5.883538	0.0	0.0
2024-12-31 22:15:00	0.0	0.0	0.0	0.0	52.227858	52.227986	52.224528	52.214211	3.522570	3.187638	3.103440	3.643396	4.338551	4.342880	4.379524	...	-0.310533	1.078751	0.0	0.264327	0.0	NaN	NaN	-9.561669	-8.172388	NaN	NaN	310.079817	-6.269816	0.0	0.0
2024-12-31 22:45:00	0.0	0.0	0.0	0.0	52.226640	52.229837	52.222456	52.209876	3.578745	3.230037	3.095339	3.624025	4.343767	4.339440	4.372636	...	-0.225651	1.079759	0.0	0.264447	0.0	NaN	NaN	-10.138718	-8.527732	NaN	NaN	309.604987	-6.934394	0.0	0.0
2024-12-31 23:15:00	0.0	0.0	0.0	0.0	52.224375	52.231151	52.221324	52.238293	3.624160	3.278488	3.093806	3.601135	4.350872	4.336333	4.366082	...	-0.558285	1.062164	0.0	0.262373	0.0	NaN	NaN	-10.649611	-8.871628	NaN	NaN	308.812117	-5.696729	0.0	0.0
2024-12-31 23:45:00	0.0	0.0	0.0	0.0	52.222007	52.230632	52.222701	52.273511	3.656167	3.331678	3.103003	3.579020	4.360311	4.334225	4.359530	...	-0.317543	1.047483	0.0	0.260688	0.0	NaN	NaN	-10.944774	-9.138224	NaN	NaN	307.372117	-8.102484	0.0	0.0

350640 rows × 812 columns

series = df[varname].copy()
series

TIMESTAMP_MIDDLE
2005-01-01 00:15:00    0.0
2005-01-01 00:45:00    0.0
2005-01-01 01:15:00    0.0
2005-01-01 01:45:00    0.0
2005-01-01 02:15:00    0.0
                      ...
2024-12-31 21:45:00    0.0
2024-12-31 22:15:00    0.0
2024-12-31 22:45:00    0.0
2024-12-31 23:15:00    0.0
2024-12-31 23:45:00    0.0
Freq: 30min, Name: SW_IN_T1_2_1, Length: 350640, dtype: float64

xlabel = f"{var} ({units})"
xlim = [series.min(), series.max()]

Stats

Overall mean

_yearly_avg = series.resample('YE').mean()
_overall_mean = _yearly_avg.mean()
_overall_sd = _yearly_avg.std()
print(f"Overall mean: {_overall_mean} +/- {_overall_sd}")

Overall mean: 142.26910305225957 +/- 7.808229266372441

Yearly means

series.resample('YE').mean()

TIMESTAMP_MIDDLE
2005-12-31    134.355814
2006-12-31    135.666212
2007-12-31    141.067281
2008-12-31    137.163616
2009-12-31    141.385800
2010-12-31    131.517953
2011-12-31    144.907574
2012-12-31    142.896565
2013-12-31    135.253588
2014-12-31    140.598788
2015-12-31    146.086643
2016-12-31    134.401040
2017-12-31    145.192251
2018-12-31    149.279495
2019-12-31    147.125672
2020-12-31    153.846174
2021-12-31    146.021649
2022-12-31    161.463670
2023-12-31    147.160061
2024-12-31    129.992216
Freq: YE-DEC, Name: SW_IN_T1_2_1, dtype: float64

Monthly averages

seriesdf = pd.DataFrame(series)
seriesdf['MONTH'] = seriesdf.index.month
seriesdf['YEAR'] = seriesdf.index.year
monthly_avg = seriesdf.groupby(['YEAR', 'MONTH'])[varname].mean().unstack()
monthly_avg

MONTH	1	2	3	4	5	6	7	8	9	10	11	12
YEAR
2005	49.786290	80.487103	147.603943	169.844213	207.320116	267.234259	206.605063	168.406810	149.684341	83.978029	50.427216	28.897572
2006	41.368657	53.663377	124.637048	165.518261	193.451108	274.536643	280.006797	158.426413	149.527674	96.050795	54.316725	31.820919
2007	43.158046	75.131413	141.239700	247.140637	224.268807	230.481517	227.602793	180.012133	162.536687	89.089943	41.925751	27.639557
2008	51.156328	96.721799	130.864679	153.624506	238.389338	231.397902	241.488335	197.968448	130.336162	91.777790	51.266992	28.941676
2009	34.916571	77.407979	119.077912	208.811299	234.584434	248.263890	228.103889	224.333001	150.505691	91.399366	46.572884	29.319686
2010	37.782288	77.886631	128.393283	209.639992	162.501512	215.707829	247.335335	175.822384	156.474499	79.776834	50.595668	34.539569
2011	42.926370	76.388086	132.588952	240.700872	263.236178	207.338394	224.806449	229.281393	156.705108	90.845693	40.791743	28.776724
2012	38.304772	87.847401	173.175992	163.488935	246.859886	230.533297	222.306829	234.708784	140.542598	84.355612	48.579555	40.876400
2013	44.709167	74.858826	106.902927	150.719549	181.798196	228.230506	275.676735	227.173503	150.513363	85.428740	47.462954	44.882390
2014	41.510355	84.270235	153.327885	192.870338	212.066205	282.403085	200.790773	185.848990	157.149566	99.783304	45.293994	30.139630
2015	43.997591	71.277607	135.705616	208.262935	210.642199	256.876860	272.871473	224.404857	145.275831	84.709190	57.985756	36.501663
2016	43.556143	59.579096	122.862206	172.403800	206.077426	213.000109	246.623742	221.854413	169.562597	79.721918	45.379396	29.388341
2017	37.395985	78.666490	154.676476	197.541310	243.918255	270.003710	225.565650	207.410052	140.722341	105.311702	44.821129	32.168826
2018	45.001708	60.089136	113.942453	222.094828	219.537955	277.345600	271.727764	221.895436	182.148234	104.871818	39.617402	28.453118
2019	52.327428	112.372418	149.103748	174.400815	199.172305	276.997023	258.235055	205.226459	162.974236	94.101485	45.075798	34.446633
2020	53.844613	93.409828	145.778073	248.126893	250.103162	231.840138	269.251948	216.902238	171.179325	86.935109	47.267541	30.294460
2021	47.962721	88.032365	150.606054	228.309574	210.722125	266.655546	209.946431	190.728001	174.832052	109.283156	39.731332	33.885071
2022	53.570054	101.340688	180.353813	209.109673	249.196528	261.494711	300.208004	236.039569	156.933282	103.138659	50.767965	30.639543
2023	40.689071	89.336347	123.473670	162.673454	204.750119	308.865340	244.968892	204.737263	190.321221	112.228047	47.060808	35.100678
2024	45.702037	74.383818	118.997371	168.066079	199.140729	207.031729	238.992807	226.479307	136.335710	68.056881	43.791908	30.477883

Heatmap plots

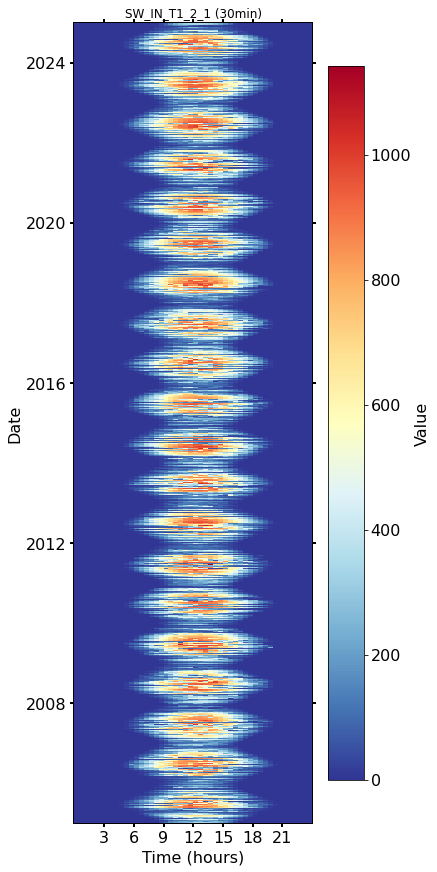

Half-hourly

fig, axs = plt.subplots(ncols=1, figsize=(6, 12), dpi=72, layout="constrained")
dv.heatmapdatetime(series=series, ax=axs, cb_digits_after_comma=0).plot()

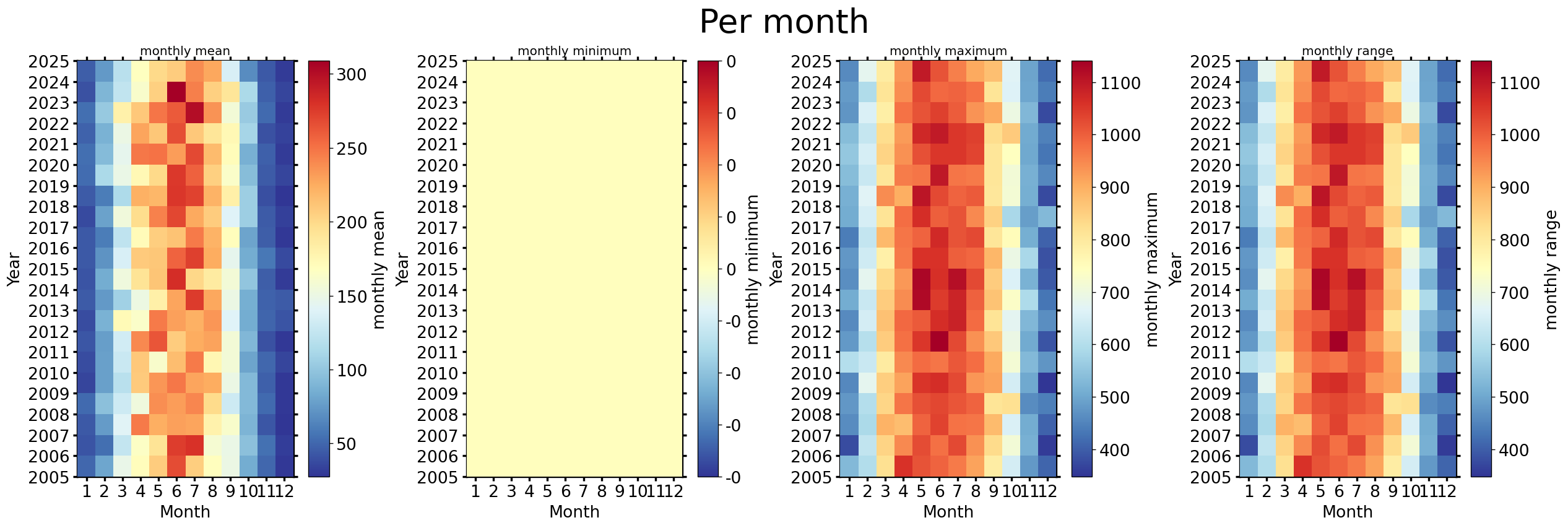

Monthly

fig, axs = plt.subplots(ncols=4, figsize=(21, 7), dpi=120, layout="constrained")
fig.suptitle(f'Per month', fontsize=32)
dv.heatmapyearmonth(series_monthly=series.resample('M').mean(), title="monthly mean", ax=axs[0], cb_digits_after_comma=0, zlabel="monthly mean").plot()
dv.heatmapyearmonth(series_monthly=series.resample('M').min(), title="monthly minimum", ax=axs[1], cb_digits_after_comma=0, zlabel="monthly minimum").plot()
dv.heatmapyearmonth(series_monthly=series.resample('M').max(), title="monthly maximum", ax=axs[2], cb_digits_after_comma=0, zlabel="monthly maximum").plot()
_range = series.resample('M').max().sub(series.resample('M').min())
dv.heatmapyearmonth(series_monthly=_range, title="monthly range", ax=axs[3], cb_digits_after_comma=0, zlabel="monthly range").plot()

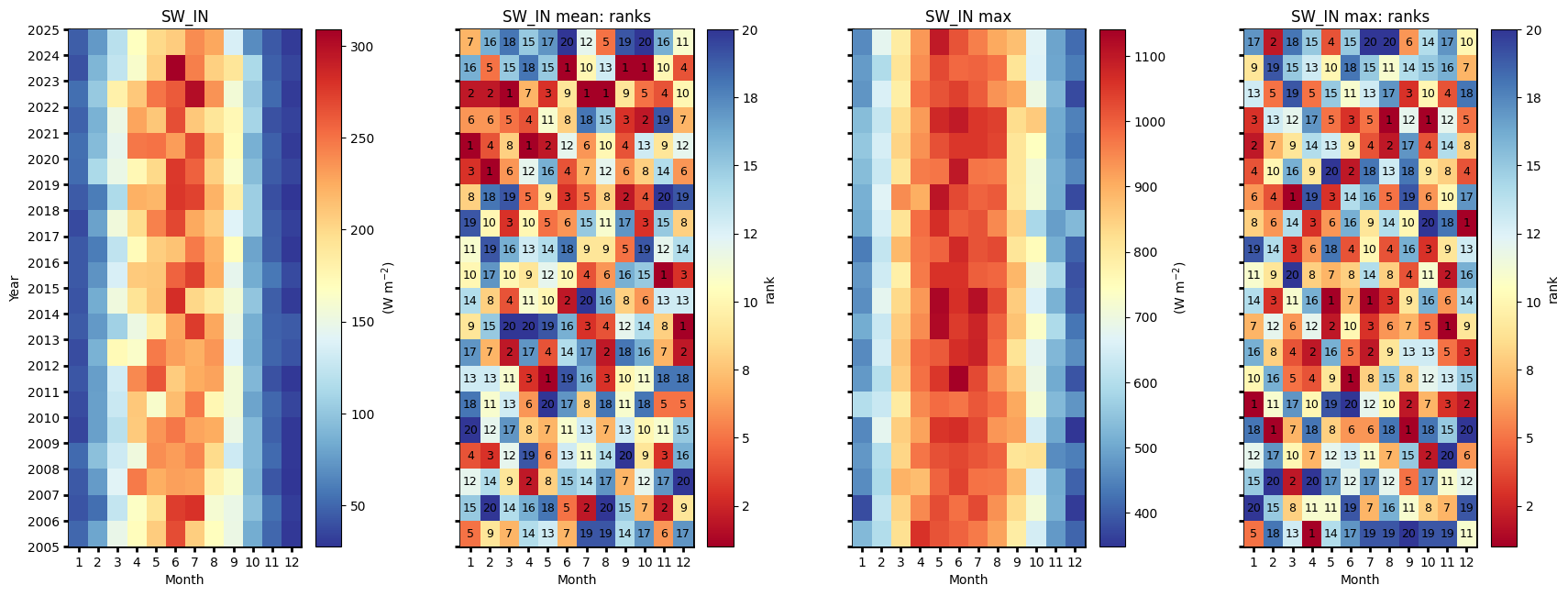

Monthly ranks

# Figure
fig = plt.figure(facecolor='white', figsize=(17, 6))

# Gridspec for layout
gs = gridspec.GridSpec(1, 4)  # rows, cols
gs.update(wspace=0.35, hspace=0.3, left=0.03, right=0.97, top=0.97, bottom=0.03)
ax_mean = fig.add_subplot(gs[0, 0])
ax_mean_ranks = fig.add_subplot(gs[0, 1])
ax_max = fig.add_subplot(gs[0, 2])
ax_max_ranks = fig.add_subplot(gs[0, 3])
params = {'axlabels_fontsize': 10, 'ticks_labelsize': 10, 'cb_labelsize': 10}
dv.heatmapyearmonth_ranks(ax=ax_mean, series=series, agg='mean', ranks=False, zlabel=f"{units}", cmap="RdYlBu_r", show_values=False, **params).plot()

hm_mean_ranks = dv.heatmapyearmonth_ranks(ax=ax_mean_ranks, series=series, agg='mean', **params)
hm_mean_ranks.plot()

dv.heatmapyearmonth_ranks(ax=ax_max, series=series, agg='max', ranks=False, zlabel=f"{units}", cmap="RdYlBu_r", show_values=False, **params).plot()
dv.heatmapyearmonth_ranks(ax=ax_max_ranks, series=series, agg='max', **params).plot()

ax_mean.set_title(f"{var}", color='black')
ax_mean_ranks.set_title(f"{var} mean: ranks", color='black')
ax_max.set_title(f"{var} max", color='black')
ax_max_ranks.set_title(f"{var} max: ranks", color='black')

ax_mean.tick_params(left=True, right=False, top=False, bottom=True,
                    labelleft=True, labelright=False, labeltop=False, labelbottom=True)
ax_mean_ranks.tick_params(left=True, right=False, top=False, bottom=True,
                   labelleft=False, labelright=False, labeltop=False, labelbottom=True)
ax_max.tick_params(left=True, right=False, top=False, bottom=True,
                     labelleft=False, labelright=False, labeltop=False, labelbottom=True)
ax_max_ranks.tick_params(left=True, right=False, top=False, bottom=True,
                     labelleft=False, labelright=False, labeltop=False, labelbottom=True)

ax_mean_ranks.set_ylabel("")
ax_max.set_ylabel("")
ax_max_ranks.set_ylabel("")

fig.show()

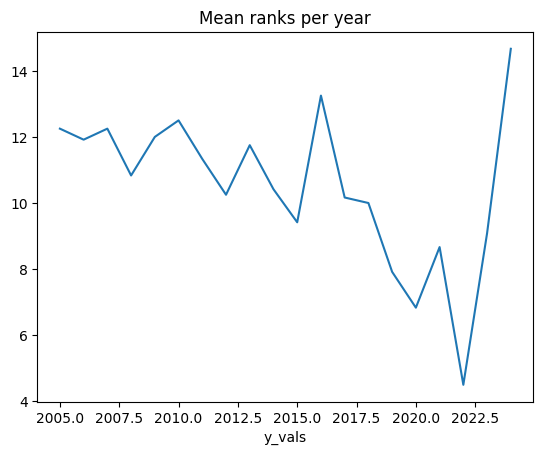

Mean ranks per year

hm_mean_ranks.hm.get_plot_data().mean(axis=1).plot(title="Mean ranks per year");

Ridgeline plots

Yearly

# rp = dv.ridgeline(series=series)
# rp.plot(
#     how='yearly',
#     kd_kwargs=None,  # params from scikit KernelDensity as dict
#     xlim=xlim,  # min/max as list
#     ylim=[0, 0.01],  # min/max as list
#     hspace=-0.8,  # overlap between months
#     xlabel=f"{var} ({units})",
#     fig_width=5,
#     fig_height=9,
#     shade_percentile=0.5,
#     show_mean_line=False,
#     fig_title=f"{var} per year (2005-2024)",
#     fig_dpi=72,
#     showplot=True,
#     ascending=False
# )

Monthly

# rp.plot(
#     how='monthly',
#     kd_kwargs=None,  # params from scikit KernelDensity as dict
#     xlim=xlim,  # min/max as list
#     ylim=[0, 0.01],  # min/max as list
#     hspace=-0.6,  # overlap between months
#     xlabel=f"{var} ({units})",
#     fig_width=4.5,
#     fig_height=8,
#     shade_percentile=0.5,
#     show_mean_line=False,
#     fig_title=f"{var} per month (2005-2024)",
#     fig_dpi=72,
#     showplot=True,
#     ascending=False
# )

Weekly

# rp.plot(
#     how='weekly',
#     kd_kwargs=None,  # params from scikit KernelDensity as dict
#     xlim=xlim,  # min/max as list
#     ylim=[0, 0.15],  # min/max as list
#     hspace=-0.6,  # overlap
#     xlabel=f"{var} ({units})",
#     fig_width=6,
#     fig_height=16,
#     shade_percentile=0.5,
#     show_mean_line=False,
#     fig_title=f"{var} per week (2005-2024)",
#     fig_dpi=72,
#     showplot=True,
#     ascending=False
# )

Single years per month

# uniq_years = series.index.year.unique()
# for uy in uniq_years:
#     series_yr = series.loc[series.index.year == uy].copy()
#     rp = dv.ridgeline(series=series_yr)
#     rp.plot(
#         how='monthly',
#         kd_kwargs=None,  # params from scikit KernelDensity as dict
#         xlim=xlim,  # min/max as list
#         ylim=[0, 0.18],  # min/max as list
#         hspace=-0.6,  # overlap
#         xlabel=f"{var} ({units})",
#         fig_width=6,
#         fig_height=7,
#         shade_percentile=0.5,
#         show_mean_line=False,
#         fig_title=f"{var} per month ({uy})",
#         fig_dpi=72,
#         showplot=True,
#         ascending=False
#     )

Single years per week

# uniq_years = series.index.year.unique()
# for uy in uniq_years:
#     series_yr = series.loc[series.index.year == uy].copy()
#     rp = dv.ridgeline(series=series_yr)
#     rp.plot(
#         how='weekly',
#         kd_kwargs=None,  # params from scikit KernelDensity as dict
#         xlim=xlim,  # min/max as list
#         ylim=[0, 0.3],  # min/max as list
#         hspace=-0.8,  # overlap
#         xlabel=f"{var} ({units})",
#         fig_width=9,
#         fig_height=18,
#         shade_percentile=0.5,
#         show_mean_line=False,
#         fig_title=f"{var} per week ({uy})",
#         fig_dpi=72,
#         showplot=True,
#         ascending=False
#     )

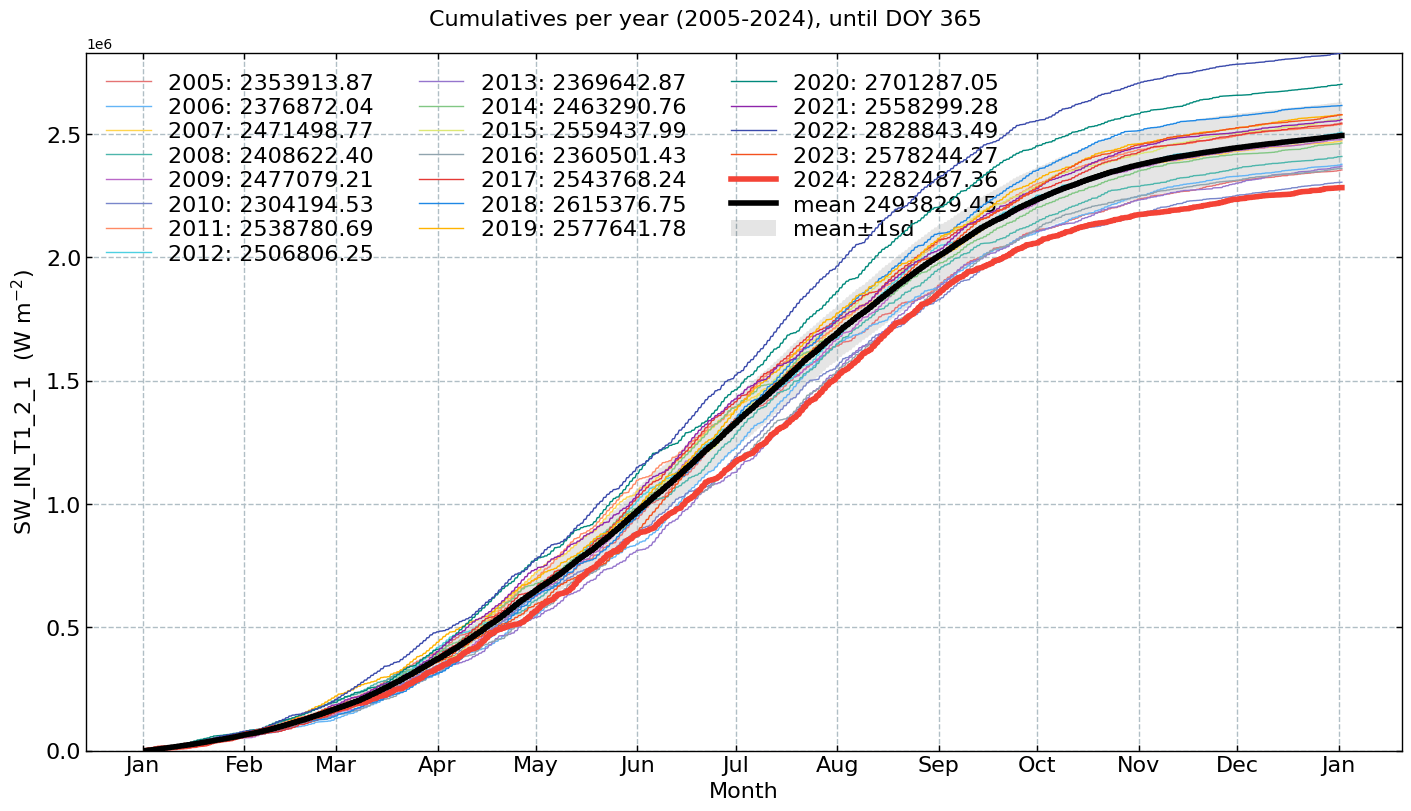

Cumulative plot

CumulativeYear(
    series=series,
    series_units=units,
    start_year=2005,
    end_year=2024,
    show_reference=True,
    excl_years_from_reference=None,
    highlight_year=2024,
    highlight_year_color='#F44336').plot();

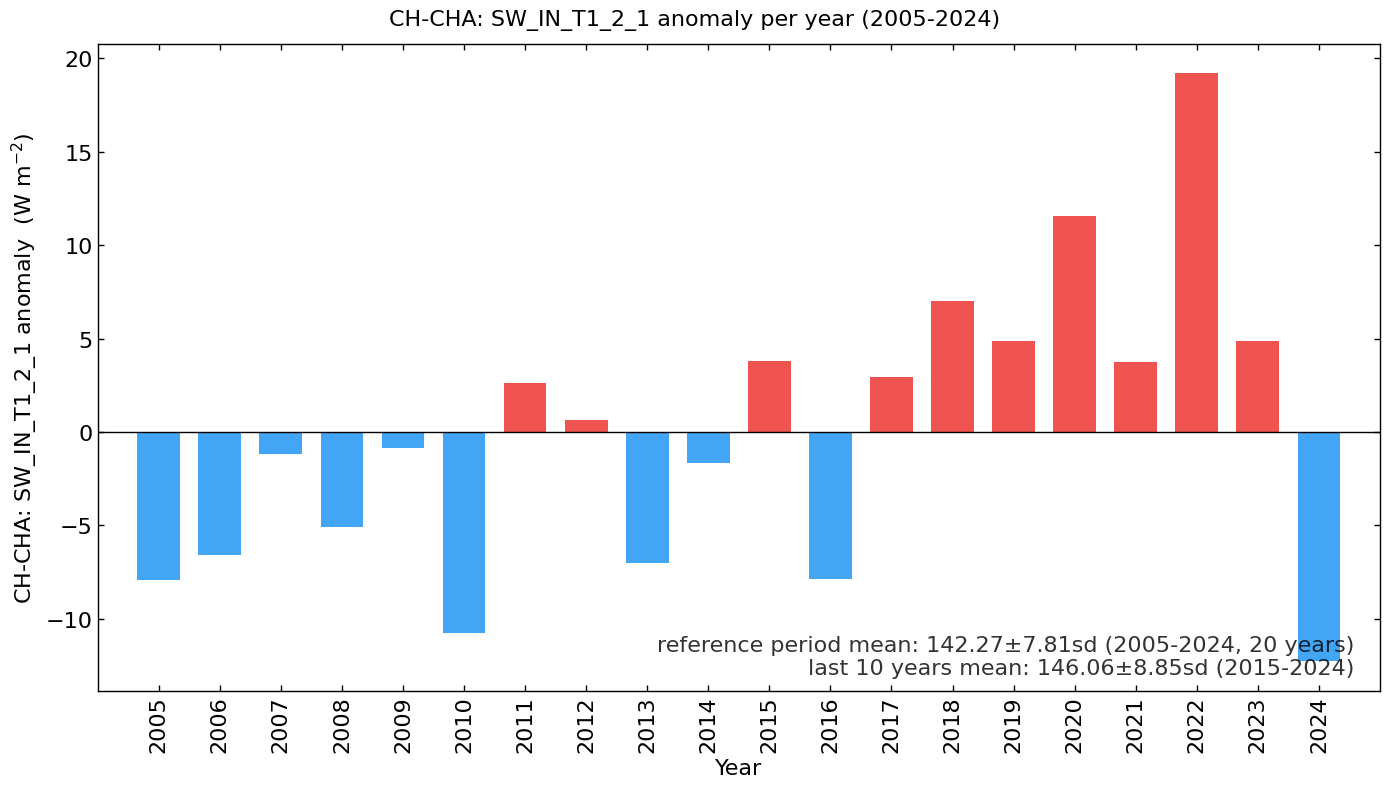

Long-term anomalies

series_yearly_mean = series.resample('YE').mean()
series_yearly_mean.index = series_yearly_mean.index.year
series_label = f"CH-CHA: {varname}"
LongtermAnomaliesYear(series=series_yearly_mean,
                      series_label=series_label,
                      series_units=units,
                      reference_start_year=2005,
                      reference_end_year=2024).plot()

End of notebook

dt_string = datetime.now().strftime("%Y-%m-%d %H:%M:%S")
print(f"Finished. {dt_string}")

Finished. 2025-05-16 12:49:51
