Download multiple meteoscreening variables

Download multiple meteoscreening variables#

notebook version: 3 (4 Jul 2024)
new in this version: added check if downloaded data is indeed in 30MIN time resolution

This notebook can be used to download data from the database InfluxDB
Data are stored to a .csv file in this folder

Info about data sources of variables#

TA: NABEL (2004-2018), mst (2019-2021), diive (2022-2024)
SW_IN: NABEL (2004-2018), mst (2019-2021), diive (2022-2024)
RH: NABEL (2004-2018), mst (2019-2021), diive (2022-2024)
PPFD_IN: mst (2004-2021), diive (2022-2024)
LW_IN: mst (2004-2021), diive (2022-2024)
PA: NABEL (2004-2005), mst (2005-2021), diive (2022-2024)

Legend:

NABEL … Data from NABEL, meteoscreening with diive
mst … Data from ETH, meteoscreening with the now deprecated MeteoscreeningTool
diive … Data from ETH, meteoscreening with diive

Settings#

Data settings#

DIRCONF = r'F:\Sync\luhk_work\20 - CODING\22 - POET\configs'
# DIRCONF = r'P:\Flux\RDS_calculations\_scripts\_configs\configs'  # Folder with configuration files: needed e.g. for connection to database
TIMEZONE_OFFSET_TO_UTC_HOURS = 1  # Timezone, e.g. "1" is translated to timezone "UTC+01:00" (CET, winter time)
REQUIRED_TIME_RESOLUTION = '30min'  # 30MIN time resolution
SITE_LAT = 47.478333   # CH-LAE
SITE_LON = 8.364389  # CH-LAE

Imports#

from datetime import datetime
from pathlib import Path
import importlib.metadata
import matplotlib
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec
%matplotlib inline
import numpy as np
import pandas as pd
import seaborn as sns
sns.set_theme('notebook')
from diive.core.plotting.timeseries import TimeSeries
from dbc_influxdb import dbcInflux
import diive as dv
from diive.core.plotting.heatmap_datetime import HeatmapDateTime
from diive.core.times.times import DetectFrequency
from diive.core.times.times import TimestampSanitizer
from diive.core.io.files import save_parquet
from diive.pkgs.createvar.potentialradiation import potrad
from diive.pkgs.gapfilling.xgboost_ts import XGBoostTS
from diive.pkgs.corrections.offsetcorrection import remove_relativehumidity_offset, remove_radiation_zero_offset
import warnings
from influxdb_client.client.warnings import MissingPivotFunction
warnings.filterwarnings(action='ignore', category=FutureWarning)
warnings.filterwarnings(action='ignore', category=UserWarning)
dt_string = datetime.now().strftime("%Y-%m-%d %H:%M:%S")
version_diive = importlib.metadata.version("diive")
print(f"diive version: v{version_diive}")
version_dbc = importlib.metadata.version("dbc_influxdb")
print(f"dbc-influxdb version: v{version_dbc}")
dbc = dbcInflux(dirconf=DIRCONF)  # Connect to database

diive version: v0.87.1
dbc-influxdb version: v0.13.1
Reading configuration files was successful.
Connection to database works.

TA, SW_IN and RH#

`NABEL` data from `diive` meteoscreening (2004-2018)#

Download#

%%time

BUCKET = f'ch-lae_processed'
FIELDS = ['TA_NABEL_T1_49_1', 'RH_NABEL_T1_49_1', 'SW_IN_NABEL_T1_49_1']
MEASUREMENTS = ['TA', 'RH', 'SW']
START = '2004-01-01 00:00:01'
STOP = '2019-01-01 00:00:01'
DATA_VERSION = 'meteoscreening_diive'

nabel_diive_ta_rh_swin_2004_2018, _, _ = dbc.download(
    bucket=BUCKET,
    measurements=MEASUREMENTS,
    fields=FIELDS,
    start=START,  # Download data starting with this date (the start date itself IS included),
    stop=STOP,  # Download data before this date (the stop date itself IS NOT included),
    timezone_offset_to_utc_hours=TIMEZONE_OFFSET_TO_UTC_HOURS,
    data_version=DATA_VERSION
)

DOWNLOADING
    from bucket ch-lae_processed
    variables ['TA_NABEL_T1_49_1', 'RH_NABEL_T1_49_1', 'SW_IN_NABEL_T1_49_1']
    from measurements ['TA', 'RH', 'SW']
    from data version ['meteoscreening_diive']
    between 2004-01-01 00:00:01 and 2019-01-01 00:00:01
    with timezone offset to UTC of 1
Using querystring:
from(bucket: "ch-lae_processed") |> range(start: 2004-01-01T00:00:01+01:00, stop: 2019-01-01T00:00:01+01:00) |> filter(fn: (r) => r["_measurement"] == "TA" or r["_measurement"] == "RH" or r["_measurement"] == "SW") |> filter(fn: (r) => r["data_version"] == "meteoscreening_diive") |> filter(fn: (r) => r["_field"] == "TA_NABEL_T1_49_1" or r["_field"] == "RH_NABEL_T1_49_1" or r["_field"] == "SW_IN_NABEL_T1_49_1") |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
Used querystring: from(bucket: "ch-lae_processed") |> range(start: 2004-01-01T00:00:01+01:00, stop: 2019-01-01T00:00:01+01:00) |> filter(fn: (r) => r["_measurement"] == "TA" or r["_measurement"] == "RH" or r["_measurement"] == "SW") |> filter(fn: (r) => r["data_version"] == "meteoscreening_diive") |> filter(fn: (r) => r["_field"] == "TA_NABEL_T1_49_1" or r["_field"] == "RH_NABEL_T1_49_1" or r["_field"] == "SW_IN_NABEL_T1_49_1") |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
querystring was constructed from:
    bucketstring: from(bucket: "ch-lae_processed")
    rangestring: |> range(start: 2004-01-01T00:00:01+01:00, stop: 2019-01-01T00:00:01+01:00)
    measurementstring: |> filter(fn: (r) => r["_measurement"] == "TA" or r["_measurement"] == "RH" or r["_measurement"] == "SW")
    dataversionstring: |> filter(fn: (r) => r["data_version"] == "meteoscreening_diive")
    fieldstring: |> filter(fn: (r) => r["_field"] == "TA_NABEL_T1_49_1" or r["_field"] == "RH_NABEL_T1_49_1" or r["_field"] == "SW_IN_NABEL_T1_49_1")
    pivotstring: |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
Download finished.
Downloaded data for 3 variables:
<-- RH_NABEL_T1_49_1  (262314 records)  first date: 2004-01-01 00:30:00  last date: 2019-01-01 00:00:00
<-- SW_IN_NABEL_T1_49_1  (262774 records)  first date: 2004-01-01 00:30:00  last date: 2019-01-01 00:00:00
<-- TA_NABEL_T1_49_1  (262403 records)  first date: 2004-01-01 00:30:00  last date: 2019-01-01 00:00:00
========================================
Fields in measurement TA of bucket ch-lae_processed:
#1  ch-lae_processed  TA  TA_EP
#2  ch-lae_processed  TA  TA_ERA
#3  ch-lae_processed  TA  TA_F
#4  ch-lae_processed  TA  TA_FF1_2_1
#5  ch-lae_processed  TA  TA_F_MDS
#6  ch-lae_processed  TA  TA_F_MDS_QC
#7  ch-lae_processed  TA  TA_F_QC
#8  ch-lae_processed  TA  TA_H1_0_1
#9  ch-lae_processed  TA  TA_IRGA70_PRF_M1_0.1_1
#10  ch-lae_processed  TA  TA_IRGA70_PRF_M1_1_1
#11  ch-lae_processed  TA  TA_IRGA70_PRF_M2_0.1_1
#12  ch-lae_processed  TA  TA_IRGA70_PRF_M2_1_1
#13  ch-lae_processed  TA  TA_IRGA70_PRF_T1_0.1_1
#14  ch-lae_processed  TA  TA_IRGA70_PRF_T1_1_1
#15  ch-lae_processed  TA  TA_IRGA70_PRF_T1_27_1
#16  ch-lae_processed  TA  TA_IRGA70_PRF_T1_3_1
#17  ch-lae_processed  TA  TA_IRGA70_PRF_T1_44_1
#18  ch-lae_processed  TA  TA_IRGA70_PRF_T1_54_1
#19  ch-lae_processed  TA  TA_IRGA70_PRF_T1_5_1
#20  ch-lae_processed  TA  TA_IRGA70_PRF_T1_9_1
#21  ch-lae_processed  TA  TA_NABEL_T1_49_1
#22  ch-lae_processed  TA  TA_PRF_T1_0.1_1
#23  ch-lae_processed  TA  TA_PRF_T1_0.4_1
#24  ch-lae_processed  TA  TA_PRF_T1_10_1
#25  ch-lae_processed  TA  TA_PRF_T1_27_1
#26  ch-lae_processed  TA  TA_PRF_T1_44_1
#27  ch-lae_processed  TA  TA_PRF_T1_54_1
#28  ch-lae_processed  TA  TA_T1_47_1
#29  ch-lae_processed  TA  T_SONIC
Found 29 fields in measurement TA of bucket ch-lae_processed.
========================================
========================================
Fields in measurement RH of bucket ch-lae_processed:
#1  ch-lae_processed  RH  RH
#2  ch-lae_processed  RH  RH_1_1_1
#3  ch-lae_processed  RH  RH_EP
#4  ch-lae_processed  RH  RH_FF1_2_1
#5  ch-lae_processed  RH  RH_NABEL_T1_49_1
#6  ch-lae_processed  RH  RH_PRF_T1_0.1_1
#7  ch-lae_processed  RH  RH_PRF_T1_0.4_1
#8  ch-lae_processed  RH  RH_PRF_T1_10_1
#9  ch-lae_processed  RH  RH_PRF_T1_27_1
#10  ch-lae_processed  RH  RH_PRF_T1_44_1
#11  ch-lae_processed  RH  RH_PRF_T1_54_1
#12  ch-lae_processed  RH  RH_T1_47_1
Found 12 fields in measurement RH of bucket ch-lae_processed.
========================================
========================================
Fields in measurement SW of bucket ch-lae_processed:
#1  ch-lae_processed  SW  NIGHT
#2  ch-lae_processed  SW  SW_IN_CORRECTED_T1_47_1
#3  ch-lae_processed  SW  SW_IN_ERA
#4  ch-lae_processed  SW  SW_IN_F
#5  ch-lae_processed  SW  SW_IN_F_MDS
#6  ch-lae_processed  SW  SW_IN_F_MDS_QC
#7  ch-lae_processed  SW  SW_IN_F_QC
#8  ch-lae_processed  SW  SW_IN_NABEL_T1_49_1
#9  ch-lae_processed  SW  SW_IN_POT
#10  ch-lae_processed  SW  SW_IN_T1_47_1
#11  ch-lae_processed  SW  SW_OUT_CORRECTED_T1_47_1
#12  ch-lae_processed  SW  SW_OUT_T1_47_1
Found 12 fields in measurement SW of bucket ch-lae_processed.
========================================
CPU times: total: 16.4 s
Wall time: 22.8 s

nabel_diive_ta_rh_swin_2004_2018

	RH_NABEL_T1_49_1	SW_IN_NABEL_T1_49_1	TA_NABEL_T1_49_1
TIMESTAMP_END
2004-01-01 00:30:00	96.366667	0.0	-2.666667
2004-01-01 01:00:00	95.566667	0.0	-2.566667
2004-01-01 01:30:00	92.200000	0.0	-2.533333
2004-01-01 02:00:00	91.300000	0.0	-2.633333
2004-01-01 02:30:00	92.633333	0.0	-2.800000
...	...	...	...
2018-12-31 22:00:00	99.998000	0.0	3.193900
2018-12-31 22:30:00	99.998000	0.0	3.021733
2018-12-31 23:00:00	99.998000	0.0	2.934467
2018-12-31 23:30:00	99.998000	0.0	2.836867
2019-01-01 00:00:00	99.998000	0.0	2.749933

262794 rows × 3 columns

Sanitize timestamp#

nabel_diive_ta_rh_swin_2004_2018 = TimestampSanitizer(data=nabel_diive_ta_rh_swin_2004_2018, output_middle_timestamp=False).get()
nabel_diive_ta_rh_swin_2004_2018

	RH_NABEL_T1_49_1	SW_IN_NABEL_T1_49_1	TA_NABEL_T1_49_1
TIMESTAMP_END
2004-01-01 00:30:00	96.366667	0.0	-2.666667
2004-01-01 01:00:00	95.566667	0.0	-2.566667
2004-01-01 01:30:00	92.200000	0.0	-2.533333
2004-01-01 02:00:00	91.300000	0.0	-2.633333
2004-01-01 02:30:00	92.633333	0.0	-2.800000
...	...	...	...
2018-12-31 22:00:00	99.998000	0.0	3.193900
2018-12-31 22:30:00	99.998000	0.0	3.021733
2018-12-31 23:00:00	99.998000	0.0	2.934467
2018-12-31 23:30:00	99.998000	0.0	2.836867
2019-01-01 00:00:00	99.998000	0.0	2.749933

262992 rows × 3 columns

Rename variables for merging#

renaming_dict = {
    'RH_NABEL_T1_49_1': 'RH_T1_47_1',
    'SW_IN_NABEL_T1_49_1': 'SW_IN_T1_47_1',
    'TA_NABEL_T1_49_1': 'TA_T1_47_1'
}
nabel_diive_ta_rh_swin_2004_2018 = nabel_diive_ta_rh_swin_2004_2018.rename(columns=renaming_dict)
nabel_diive_ta_rh_swin_2004_2018

	RH_T1_47_1	SW_IN_T1_47_1	TA_T1_47_1
TIMESTAMP_END
2004-01-01 00:30:00	96.366667	0.0	-2.666667
2004-01-01 01:00:00	95.566667	0.0	-2.566667
2004-01-01 01:30:00	92.200000	0.0	-2.533333
2004-01-01 02:00:00	91.300000	0.0	-2.633333
2004-01-01 02:30:00	92.633333	0.0	-2.800000
...	...	...	...
2018-12-31 22:00:00	99.998000	0.0	3.193900
2018-12-31 22:30:00	99.998000	0.0	3.021733
2018-12-31 23:00:00	99.998000	0.0	2.934467
2018-12-31 23:30:00	99.998000	0.0	2.836867
2019-01-01 00:00:00	99.998000	0.0	2.749933

262992 rows × 3 columns

Data from `mst` meteoscreening (2019-2021)#

Download#

%%time

BUCKET = f'ch-lae_processed'
FIELDS = ['TA_T1_47_1', 'RH_T1_47_1', 'SW_IN_T1_47_1']
MEASUREMENTS = ['TA', 'RH', 'SW']
START = '2019-01-01 00:00:01'
STOP = '2022-01-01 00:00:01'
DATA_VERSION = 'meteoscreening_mst'

mst_ta_rh_swin_2019_2021, _, _ = dbc.download(
    bucket=BUCKET,
    measurements=MEASUREMENTS,
    fields=FIELDS,
    start=START,  # Download data starting with this date (the start date itself IS included),
    stop=STOP,  # Download data before this date (the stop date itself IS NOT included),
    timezone_offset_to_utc_hours=TIMEZONE_OFFSET_TO_UTC_HOURS,
    data_version=DATA_VERSION
)

DOWNLOADING
    from bucket ch-lae_processed
    variables ['TA_T1_47_1', 'RH_T1_47_1', 'SW_IN_T1_47_1']
    from measurements ['TA', 'RH', 'SW']
    from data version ['meteoscreening_mst']
    between 2019-01-01 00:00:01 and 2022-01-01 00:00:01
    with timezone offset to UTC of 1
Using querystring:
from(bucket: "ch-lae_processed") |> range(start: 2019-01-01T00:00:01+01:00, stop: 2022-01-01T00:00:01+01:00) |> filter(fn: (r) => r["_measurement"] == "TA" or r["_measurement"] == "RH" or r["_measurement"] == "SW") |> filter(fn: (r) => r["data_version"] == "meteoscreening_mst") |> filter(fn: (r) => r["_field"] == "TA_T1_47_1" or r["_field"] == "RH_T1_47_1" or r["_field"] == "SW_IN_T1_47_1") |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
Used querystring: from(bucket: "ch-lae_processed") |> range(start: 2019-01-01T00:00:01+01:00, stop: 2022-01-01T00:00:01+01:00) |> filter(fn: (r) => r["_measurement"] == "TA" or r["_measurement"] == "RH" or r["_measurement"] == "SW") |> filter(fn: (r) => r["data_version"] == "meteoscreening_mst") |> filter(fn: (r) => r["_field"] == "TA_T1_47_1" or r["_field"] == "RH_T1_47_1" or r["_field"] == "SW_IN_T1_47_1") |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
querystring was constructed from:
    bucketstring: from(bucket: "ch-lae_processed")
    rangestring: |> range(start: 2019-01-01T00:00:01+01:00, stop: 2022-01-01T00:00:01+01:00)
    measurementstring: |> filter(fn: (r) => r["_measurement"] == "TA" or r["_measurement"] == "RH" or r["_measurement"] == "SW")
    dataversionstring: |> filter(fn: (r) => r["data_version"] == "meteoscreening_mst")
    fieldstring: |> filter(fn: (r) => r["_field"] == "TA_T1_47_1" or r["_field"] == "RH_T1_47_1" or r["_field"] == "SW_IN_T1_47_1")
    pivotstring: |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
Download finished.
Downloaded data for 3 variables:
<-- RH_T1_47_1  (51849 records)  first date: 2019-01-01 00:30:00  last date: 2022-01-01 00:00:00
<-- SW_IN_T1_47_1  (51843 records)  first date: 2019-01-01 00:30:00  last date: 2022-01-01 00:00:00
<-- TA_T1_47_1  (51849 records)  first date: 2019-01-01 00:30:00  last date: 2022-01-01 00:00:00
========================================
Fields in measurement TA of bucket ch-lae_processed:
#1  ch-lae_processed  TA  TA_EP
#2  ch-lae_processed  TA  TA_ERA
#3  ch-lae_processed  TA  TA_F
#4  ch-lae_processed  TA  TA_FF1_2_1
#5  ch-lae_processed  TA  TA_F_MDS
#6  ch-lae_processed  TA  TA_F_MDS_QC
#7  ch-lae_processed  TA  TA_F_QC
#8  ch-lae_processed  TA  TA_H1_0_1
#9  ch-lae_processed  TA  TA_IRGA70_PRF_M1_0.1_1
#10  ch-lae_processed  TA  TA_IRGA70_PRF_M1_1_1
#11  ch-lae_processed  TA  TA_IRGA70_PRF_M2_0.1_1
#12  ch-lae_processed  TA  TA_IRGA70_PRF_M2_1_1
#13  ch-lae_processed  TA  TA_IRGA70_PRF_T1_0.1_1
#14  ch-lae_processed  TA  TA_IRGA70_PRF_T1_1_1
#15  ch-lae_processed  TA  TA_IRGA70_PRF_T1_27_1
#16  ch-lae_processed  TA  TA_IRGA70_PRF_T1_3_1
#17  ch-lae_processed  TA  TA_IRGA70_PRF_T1_44_1
#18  ch-lae_processed  TA  TA_IRGA70_PRF_T1_54_1
#19  ch-lae_processed  TA  TA_IRGA70_PRF_T1_5_1
#20  ch-lae_processed  TA  TA_IRGA70_PRF_T1_9_1
#21  ch-lae_processed  TA  TA_NABEL_T1_49_1
#22  ch-lae_processed  TA  TA_PRF_T1_0.1_1
#23  ch-lae_processed  TA  TA_PRF_T1_0.4_1
#24  ch-lae_processed  TA  TA_PRF_T1_10_1
#25  ch-lae_processed  TA  TA_PRF_T1_27_1
#26  ch-lae_processed  TA  TA_PRF_T1_44_1
#27  ch-lae_processed  TA  TA_PRF_T1_54_1
#28  ch-lae_processed  TA  TA_T1_47_1
#29  ch-lae_processed  TA  T_SONIC
Found 29 fields in measurement TA of bucket ch-lae_processed.
========================================
========================================
Fields in measurement RH of bucket ch-lae_processed:
#1  ch-lae_processed  RH  RH
#2  ch-lae_processed  RH  RH_1_1_1
#3  ch-lae_processed  RH  RH_EP
#4  ch-lae_processed  RH  RH_FF1_2_1
#5  ch-lae_processed  RH  RH_NABEL_T1_49_1
#6  ch-lae_processed  RH  RH_PRF_T1_0.1_1
#7  ch-lae_processed  RH  RH_PRF_T1_0.4_1
#8  ch-lae_processed  RH  RH_PRF_T1_10_1
#9  ch-lae_processed  RH  RH_PRF_T1_27_1
#10  ch-lae_processed  RH  RH_PRF_T1_44_1
#11  ch-lae_processed  RH  RH_PRF_T1_54_1
#12  ch-lae_processed  RH  RH_T1_47_1
Found 12 fields in measurement RH of bucket ch-lae_processed.
========================================
========================================
Fields in measurement SW of bucket ch-lae_processed:
#1  ch-lae_processed  SW  NIGHT
#2  ch-lae_processed  SW  SW_IN_CORRECTED_T1_47_1
#3  ch-lae_processed  SW  SW_IN_ERA
#4  ch-lae_processed  SW  SW_IN_F
#5  ch-lae_processed  SW  SW_IN_F_MDS
#6  ch-lae_processed  SW  SW_IN_F_MDS_QC
#7  ch-lae_processed  SW  SW_IN_F_QC
#8  ch-lae_processed  SW  SW_IN_NABEL_T1_49_1
#9  ch-lae_processed  SW  SW_IN_POT
#10  ch-lae_processed  SW  SW_IN_T1_47_1
#11  ch-lae_processed  SW  SW_OUT_CORRECTED_T1_47_1
#12  ch-lae_processed  SW  SW_OUT_T1_47_1
Found 12 fields in measurement SW of bucket ch-lae_processed.
========================================
CPU times: total: 3.12 s
Wall time: 4.28 s

mst_ta_rh_swin_2019_2021

	RH_T1_47_1	SW_IN_T1_47_1	TA_T1_47_1
TIMESTAMP_END
2019-01-01 00:30:00	99.997990	-2.149965	2.666350
2019-01-01 01:00:00	99.997990	-2.722333	2.475211
2019-01-01 01:30:00	99.997990	-3.087591	2.278222
2019-01-01 02:00:00	99.997990	-2.410228	2.280883
2019-01-01 02:30:00	99.997990	-2.400173	2.138061
...	...	...	...
2021-12-31 22:00:00	94.843261	-9.935194	7.933211
2021-12-31 22:30:00	93.992424	-10.250348	8.022416
2021-12-31 23:00:00	95.821067	-9.810373	7.719400
2021-12-31 23:30:00	95.077413	-9.814824	7.805116
2022-01-01 00:00:00	92.241917	-9.565127	8.226333

51849 rows × 3 columns

Sanitize timestamp#

mst_ta_rh_swin_2019_2021 = TimestampSanitizer(data=mst_ta_rh_swin_2019_2021, output_middle_timestamp=False).get()
mst_ta_rh_swin_2019_2021

	RH_T1_47_1	SW_IN_T1_47_1	TA_T1_47_1
TIMESTAMP_END
2019-01-01 00:30:00	99.997990	-2.149965	2.666350
2019-01-01 01:00:00	99.997990	-2.722333	2.475211
2019-01-01 01:30:00	99.997990	-3.087591	2.278222
2019-01-01 02:00:00	99.997990	-2.410228	2.280883
2019-01-01 02:30:00	99.997990	-2.400173	2.138061
...	...	...	...
2021-12-31 22:00:00	94.843261	-9.935194	7.933211
2021-12-31 22:30:00	93.992424	-10.250348	8.022416
2021-12-31 23:00:00	95.821067	-9.810373	7.719400
2021-12-31 23:30:00	95.077413	-9.814824	7.805116
2022-01-01 00:00:00	92.241917	-9.565127	8.226333

52608 rows × 3 columns

Rename variables for merging#

renaming_dict = {
    'RH_T1_47_1': 'RH_T1_47_1',
    'SW_IN_T1_47_1': 'SW_IN_T1_47_1',
    'TA_T1_47_1': 'TA_T1_47_1'
}
mst_ta_rh_swin_2019_2021 = mst_ta_rh_swin_2019_2021.rename(columns=renaming_dict)
mst_ta_rh_swin_2019_2021

	RH_T1_47_1	SW_IN_T1_47_1	TA_T1_47_1
TIMESTAMP_END
2019-01-01 00:30:00	99.997990	-2.149965	2.666350
2019-01-01 01:00:00	99.997990	-2.722333	2.475211
2019-01-01 01:30:00	99.997990	-3.087591	2.278222
2019-01-01 02:00:00	99.997990	-2.410228	2.280883
2019-01-01 02:30:00	99.997990	-2.400173	2.138061
...	...	...	...
2021-12-31 22:00:00	94.843261	-9.935194	7.933211
2021-12-31 22:30:00	93.992424	-10.250348	8.022416
2021-12-31 23:00:00	95.821067	-9.810373	7.719400
2021-12-31 23:30:00	95.077413	-9.814824	7.805116
2022-01-01 00:00:00	92.241917	-9.565127	8.226333

52608 rows × 3 columns

Data from `diive` meteoscreening (2022-2024)#

Download#

%%time

BUCKET = f'ch-lae_processed'
FIELDS = ['TA_T1_47_1', 'RH_T1_47_1', 'SW_IN_T1_47_1']
MEASUREMENTS = ['TA', 'RH', 'SW']
START = '2022-01-01 00:00:01'
STOP = '2025-01-01 00:00:01'
DATA_VERSION = 'meteoscreening_diive'

diive_ta_rh_swin_2022_2024, _, _ = dbc.download(
    bucket=BUCKET,
    measurements=MEASUREMENTS,
    fields=FIELDS,
    start=START,  # Download data starting with this date (the start date itself IS included),
    stop=STOP,  # Download data before this date (the stop date itself IS NOT included),
    timezone_offset_to_utc_hours=TIMEZONE_OFFSET_TO_UTC_HOURS,
    data_version=DATA_VERSION
)

DOWNLOADING
    from bucket ch-lae_processed
    variables ['TA_T1_47_1', 'RH_T1_47_1', 'SW_IN_T1_47_1']
    from measurements ['TA', 'RH', 'SW']
    from data version ['meteoscreening_diive']
    between 2022-01-01 00:00:01 and 2025-01-01 00:00:01
    with timezone offset to UTC of 1
Using querystring:
from(bucket: "ch-lae_processed") |> range(start: 2022-01-01T00:00:01+01:00, stop: 2025-01-01T00:00:01+01:00) |> filter(fn: (r) => r["_measurement"] == "TA" or r["_measurement"] == "RH" or r["_measurement"] == "SW") |> filter(fn: (r) => r["data_version"] == "meteoscreening_diive") |> filter(fn: (r) => r["_field"] == "TA_T1_47_1" or r["_field"] == "RH_T1_47_1" or r["_field"] == "SW_IN_T1_47_1") |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
Used querystring: from(bucket: "ch-lae_processed") |> range(start: 2022-01-01T00:00:01+01:00, stop: 2025-01-01T00:00:01+01:00) |> filter(fn: (r) => r["_measurement"] == "TA" or r["_measurement"] == "RH" or r["_measurement"] == "SW") |> filter(fn: (r) => r["data_version"] == "meteoscreening_diive") |> filter(fn: (r) => r["_field"] == "TA_T1_47_1" or r["_field"] == "RH_T1_47_1" or r["_field"] == "SW_IN_T1_47_1") |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
querystring was constructed from:
    bucketstring: from(bucket: "ch-lae_processed")
    rangestring: |> range(start: 2022-01-01T00:00:01+01:00, stop: 2025-01-01T00:00:01+01:00)
    measurementstring: |> filter(fn: (r) => r["_measurement"] == "TA" or r["_measurement"] == "RH" or r["_measurement"] == "SW")
    dataversionstring: |> filter(fn: (r) => r["data_version"] == "meteoscreening_diive")
    fieldstring: |> filter(fn: (r) => r["_field"] == "TA_T1_47_1" or r["_field"] == "RH_T1_47_1" or r["_field"] == "SW_IN_T1_47_1")
    pivotstring: |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
Download finished.
Downloaded data for 3 variables:
<-- RH_T1_47_1  (52492 records)  first date: 2022-01-01 00:30:00  last date: 2025-01-01 00:00:00
<-- SW_IN_T1_47_1  (52526 records)  first date: 2022-01-01 00:30:00  last date: 2025-01-01 00:00:00
<-- TA_T1_47_1  (52492 records)  first date: 2022-01-01 00:30:00  last date: 2025-01-01 00:00:00
========================================
Fields in measurement TA of bucket ch-lae_processed:
#1  ch-lae_processed  TA  TA_EP
#2  ch-lae_processed  TA  TA_ERA
#3  ch-lae_processed  TA  TA_F
#4  ch-lae_processed  TA  TA_FF1_2_1
#5  ch-lae_processed  TA  TA_F_MDS
#6  ch-lae_processed  TA  TA_F_MDS_QC
#7  ch-lae_processed  TA  TA_F_QC
#8  ch-lae_processed  TA  TA_H1_0_1
#9  ch-lae_processed  TA  TA_IRGA70_PRF_M1_0.1_1
#10  ch-lae_processed  TA  TA_IRGA70_PRF_M1_1_1
#11  ch-lae_processed  TA  TA_IRGA70_PRF_M2_0.1_1
#12  ch-lae_processed  TA  TA_IRGA70_PRF_M2_1_1
#13  ch-lae_processed  TA  TA_IRGA70_PRF_T1_0.1_1
#14  ch-lae_processed  TA  TA_IRGA70_PRF_T1_1_1
#15  ch-lae_processed  TA  TA_IRGA70_PRF_T1_27_1
#16  ch-lae_processed  TA  TA_IRGA70_PRF_T1_3_1
#17  ch-lae_processed  TA  TA_IRGA70_PRF_T1_44_1
#18  ch-lae_processed  TA  TA_IRGA70_PRF_T1_54_1
#19  ch-lae_processed  TA  TA_IRGA70_PRF_T1_5_1
#20  ch-lae_processed  TA  TA_IRGA70_PRF_T1_9_1
#21  ch-lae_processed  TA  TA_NABEL_T1_49_1
#22  ch-lae_processed  TA  TA_PRF_T1_0.1_1
#23  ch-lae_processed  TA  TA_PRF_T1_0.4_1
#24  ch-lae_processed  TA  TA_PRF_T1_10_1
#25  ch-lae_processed  TA  TA_PRF_T1_27_1
#26  ch-lae_processed  TA  TA_PRF_T1_44_1
#27  ch-lae_processed  TA  TA_PRF_T1_54_1
#28  ch-lae_processed  TA  TA_T1_47_1
#29  ch-lae_processed  TA  T_SONIC
Found 29 fields in measurement TA of bucket ch-lae_processed.
========================================
========================================
Fields in measurement RH of bucket ch-lae_processed:
#1  ch-lae_processed  RH  RH
#2  ch-lae_processed  RH  RH_1_1_1
#3  ch-lae_processed  RH  RH_EP
#4  ch-lae_processed  RH  RH_FF1_2_1
#5  ch-lae_processed  RH  RH_NABEL_T1_49_1
#6  ch-lae_processed  RH  RH_PRF_T1_0.1_1
#7  ch-lae_processed  RH  RH_PRF_T1_0.4_1
#8  ch-lae_processed  RH  RH_PRF_T1_10_1
#9  ch-lae_processed  RH  RH_PRF_T1_27_1
#10  ch-lae_processed  RH  RH_PRF_T1_44_1
#11  ch-lae_processed  RH  RH_PRF_T1_54_1
#12  ch-lae_processed  RH  RH_T1_47_1
Found 12 fields in measurement RH of bucket ch-lae_processed.
========================================
========================================
Fields in measurement SW of bucket ch-lae_processed:
#1  ch-lae_processed  SW  NIGHT
#2  ch-lae_processed  SW  SW_IN_CORRECTED_T1_47_1
#3  ch-lae_processed  SW  SW_IN_ERA
#4  ch-lae_processed  SW  SW_IN_F
#5  ch-lae_processed  SW  SW_IN_F_MDS
#6  ch-lae_processed  SW  SW_IN_F_MDS_QC
#7  ch-lae_processed  SW  SW_IN_F_QC
#8  ch-lae_processed  SW  SW_IN_NABEL_T1_49_1
#9  ch-lae_processed  SW  SW_IN_POT
#10  ch-lae_processed  SW  SW_IN_T1_47_1
#11  ch-lae_processed  SW  SW_OUT_CORRECTED_T1_47_1
#12  ch-lae_processed  SW  SW_OUT_T1_47_1
Found 12 fields in measurement SW of bucket ch-lae_processed.
========================================
CPU times: total: 2.92 s
Wall time: 4.36 s

diive_ta_rh_swin_2022_2024

	RH_T1_47_1	SW_IN_T1_47_1	TA_T1_47_1
TIMESTAMP_END
2022-01-01 00:30:00	89.611768	0.0	8.437600
2022-01-01 01:00:00	89.877390	0.0	8.238294
2022-01-01 01:30:00	90.451803	0.0	8.044655
2022-01-01 02:00:00	89.879497	0.0	8.111550
2022-01-01 02:30:00	89.994291	0.0	7.972055
...	...	...	...
2024-12-31 22:00:00	87.387340	0.0	-0.504794
2024-12-31 22:30:00	87.563567	0.0	-0.296828
2024-12-31 23:00:00	89.921251	0.0	-0.392922
2024-12-31 23:30:00	81.942686	0.0	0.792661
2025-01-01 00:00:00	88.444646	0.0	-0.422600

52526 rows × 3 columns

Sanitize timestamp#

diive_ta_rh_swin_2022_2024 = TimestampSanitizer(data=diive_ta_rh_swin_2022_2024, output_middle_timestamp=False).get()
diive_ta_rh_swin_2022_2024

	RH_T1_47_1	SW_IN_T1_47_1	TA_T1_47_1
TIMESTAMP_END
2022-01-01 00:30:00	89.611768	0.0	8.437600
2022-01-01 01:00:00	89.877390	0.0	8.238294
2022-01-01 01:30:00	90.451803	0.0	8.044655
2022-01-01 02:00:00	89.879497	0.0	8.111550
2022-01-01 02:30:00	89.994291	0.0	7.972055
...	...	...	...
2024-12-31 22:00:00	87.387340	0.0	-0.504794
2024-12-31 22:30:00	87.563567	0.0	-0.296828
2024-12-31 23:00:00	89.921251	0.0	-0.392922
2024-12-31 23:30:00	81.942686	0.0	0.792661
2025-01-01 00:00:00	88.444646	0.0	-0.422600

52608 rows × 3 columns

Rename variables for merging#

renaming_dict = {
    'RH_T1_47_1': 'RH_T1_47_1',
    'SW_IN_T1_47_1': 'SW_IN_T1_47_1',
    'TA_T1_47_1': 'TA_T1_47_1'
}
diive_ta_rh_swin_2022_2024 = diive_ta_rh_swin_2022_2024.rename(columns=renaming_dict)
diive_ta_rh_swin_2022_2024

	RH_T1_47_1	SW_IN_T1_47_1	TA_T1_47_1
TIMESTAMP_END
2022-01-01 00:30:00	89.611768	0.0	8.437600
2022-01-01 01:00:00	89.877390	0.0	8.238294
2022-01-01 01:30:00	90.451803	0.0	8.044655
2022-01-01 02:00:00	89.879497	0.0	8.111550
2022-01-01 02:30:00	89.994291	0.0	7.972055
...	...	...	...
2024-12-31 22:00:00	87.387340	0.0	-0.504794
2024-12-31 22:30:00	87.563567	0.0	-0.296828
2024-12-31 23:00:00	89.921251	0.0	-0.392922
2024-12-31 23:30:00	81.942686	0.0	0.792661
2025-01-01 00:00:00	88.444646	0.0	-0.422600

52608 rows × 3 columns

Merge data#

# Merge data on index
ta_rh_swin_2004_2024 = pd.concat([nabel_diive_ta_rh_swin_2004_2018, mst_ta_rh_swin_2019_2021, diive_ta_rh_swin_2022_2024], axis=0)
ta_rh_swin_2004_2024 = ta_rh_swin_2004_2024.sort_index()
ta_rh_swin_2004_2024

	RH_T1_47_1	SW_IN_T1_47_1	TA_T1_47_1
TIMESTAMP_END
2004-01-01 00:30:00	96.366667	0.0	-2.666667
2004-01-01 01:00:00	95.566667	0.0	-2.566667
2004-01-01 01:30:00	92.200000	0.0	-2.533333
2004-01-01 02:00:00	91.300000	0.0	-2.633333
2004-01-01 02:30:00	92.633333	0.0	-2.800000
...	...	...	...
2024-12-31 22:00:00	87.387340	0.0	-0.504794
2024-12-31 22:30:00	87.563567	0.0	-0.296828
2024-12-31 23:00:00	89.921251	0.0	-0.392922
2024-12-31 23:30:00	81.942686	0.0	0.792661
2025-01-01 00:00:00	88.444646	0.0	-0.422600

368208 rows × 3 columns

Sanitize timestamp#

ta_rh_swin_2004_2024 = TimestampSanitizer(data=ta_rh_swin_2004_2024, output_middle_timestamp=False).get()
ta_rh_swin_2004_2024

	RH_T1_47_1	SW_IN_T1_47_1	TA_T1_47_1
TIMESTAMP_END
2004-01-01 00:30:00	96.366667	0.0	-2.666667
2004-01-01 01:00:00	95.566667	0.0	-2.566667
2004-01-01 01:30:00	92.200000	0.0	-2.533333
2004-01-01 02:00:00	91.300000	0.0	-2.633333
2004-01-01 02:30:00	92.633333	0.0	-2.800000
...	...	...	...
2024-12-31 22:00:00	87.387340	0.0	-0.504794
2024-12-31 22:30:00	87.563567	0.0	-0.296828
2024-12-31 23:00:00	89.921251	0.0	-0.392922
2024-12-31 23:30:00	81.942686	0.0	0.792661
2025-01-01 00:00:00	88.444646	0.0	-0.422600

368208 rows × 3 columns

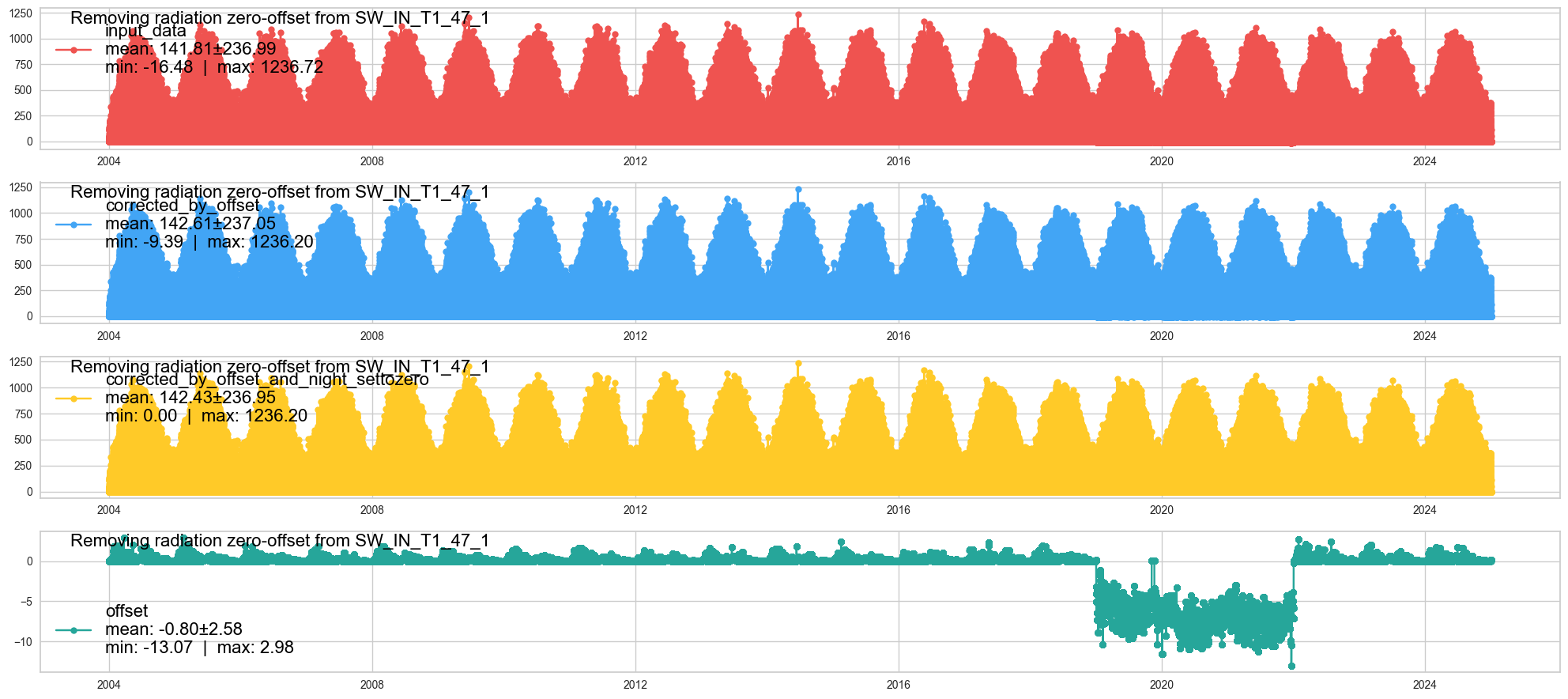

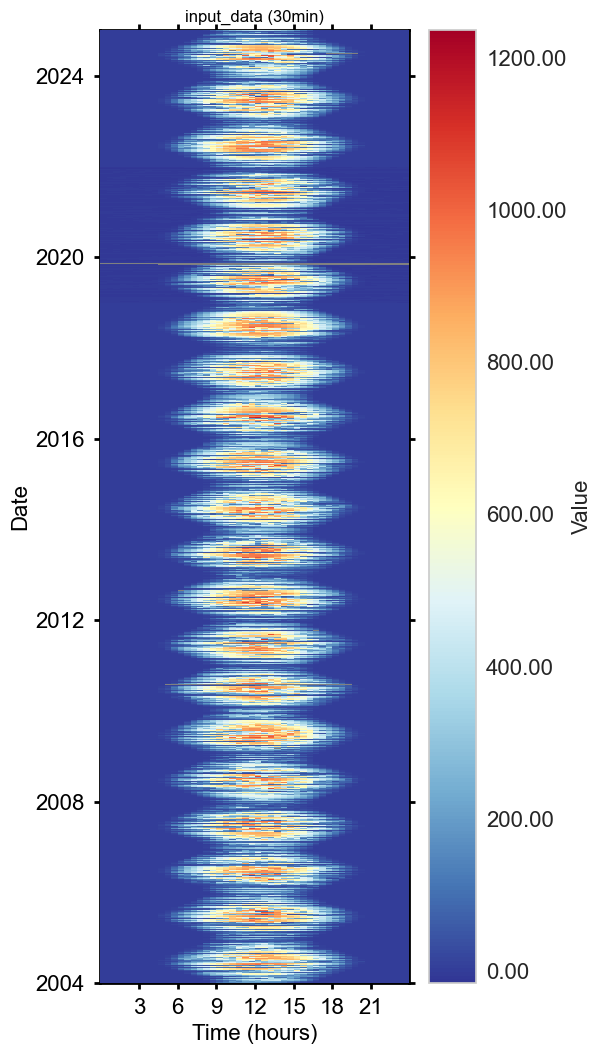

Correction: Remove zero offset < 0 from `SW_IN`#

_swin = ta_rh_swin_2004_2024['SW_IN_T1_47_1'].copy()
_swin_corrected = remove_radiation_zero_offset(series=_swin, lat=SITE_LAT, lon=SITE_LON, utc_offset=1, showplot=True)
ta_rh_swin_2004_2024['SW_IN_T1_47_1'] = np.nan
ta_rh_swin_2004_2024['SW_IN_T1_47_1'] = _swin_corrected

[remove_radiation_zero_offset]  running remove_radiation_zero_offset ...

../../_images/a9fc5c3ad703146ea5bbaa1c091de1e3ad0bb381439073ed352bc4aa3607823e.png

../../_images/b53eb6dd8af3317f72f83fe744f04180f38cbfa8a01d0d422e93c943aa692f51.png

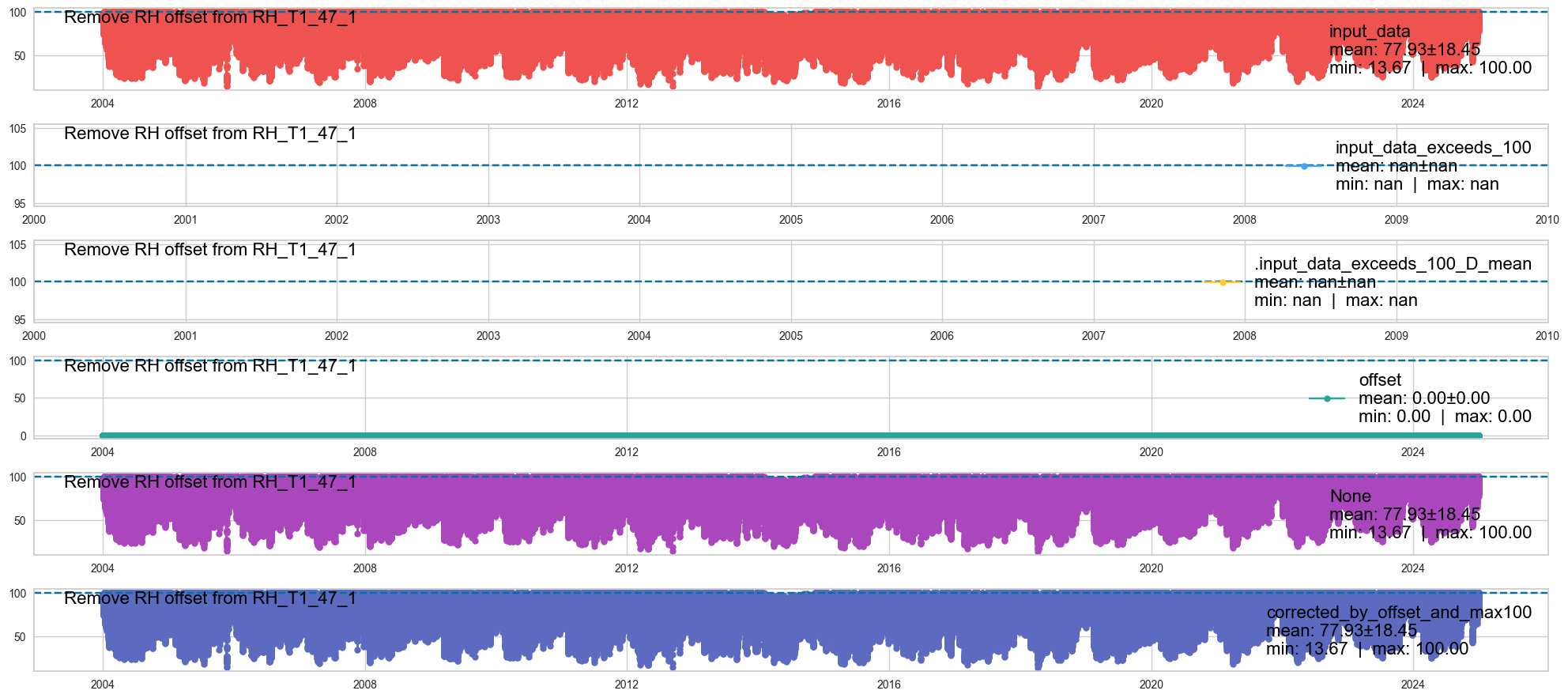

Correction: Remove offset >100% from `RH`#

_rh = ta_rh_swin_2004_2024['RH_T1_47_1'].copy()
_rh_corrected = remove_relativehumidity_offset(series=_rh, showplot=True)
ta_rh_swin_2004_2024['RH_T1_47_1'] = np.nan
ta_rh_swin_2004_2024['RH_T1_47_1'] = _rh_corrected

[remove_relativehumidity_offset]  running remove_relativehumidity_offset ...

../../_images/59b189f370f60976a885cafb920737ec137a78f598c278b5888671f3df0037a0.png

Dataframe#

ta_rh_swin_2004_2024

	RH_T1_47_1	SW_IN_T1_47_1	TA_T1_47_1
TIMESTAMP_END
2004-01-01 00:30:00	96.366667	0.0	-2.666667
2004-01-01 01:00:00	95.566667	0.0	-2.566667
2004-01-01 01:30:00	92.200000	0.0	-2.533333
2004-01-01 02:00:00	91.300000	0.0	-2.633333
2004-01-01 02:30:00	92.633333	0.0	-2.800000
...	...	...	...
2024-12-31 22:00:00	87.387340	0.0	-0.504794
2024-12-31 22:30:00	87.563567	0.0	-0.296828
2024-12-31 23:00:00	89.921251	0.0	-0.392922
2024-12-31 23:30:00	81.942686	0.0	0.792661
2025-01-01 00:00:00	88.444646	0.0	-0.422600

368208 rows × 3 columns

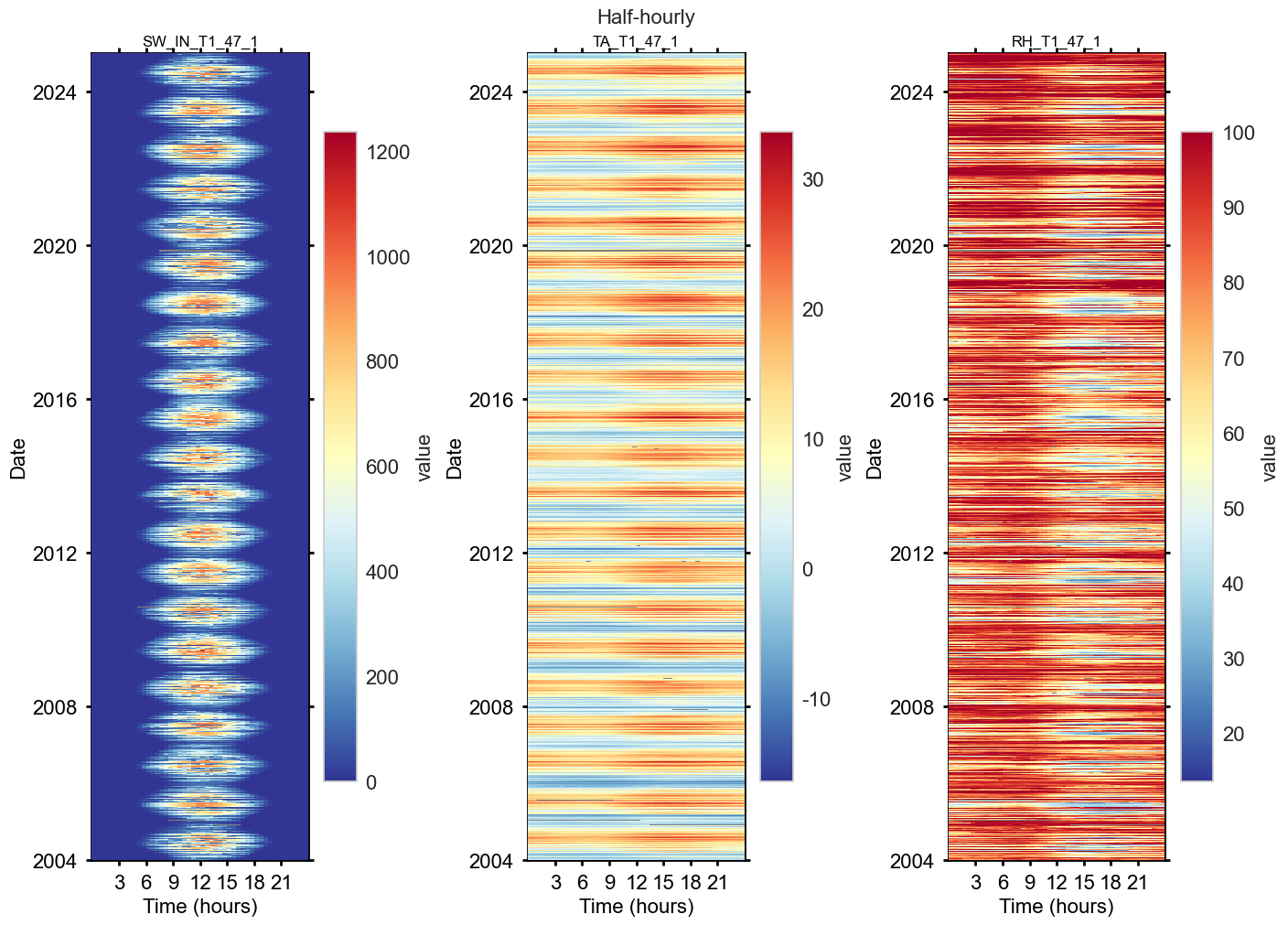

Plot heatmaps#

fig, axs = plt.subplots(ncols=3, figsize=(14, 10), dpi=100, layout="constrained")
fig.suptitle(f'Half-hourly', fontsize=16)
dv.heatmapdatetime(series=ta_rh_swin_2004_2024['SW_IN_T1_47_1'], title="SW_IN_T1_47_1", ax=axs[0], cb_digits_after_comma=0, zlabel="value").plot()
dv.heatmapdatetime(series=ta_rh_swin_2004_2024['TA_T1_47_1'], title="TA_T1_47_1", ax=axs[1], cb_digits_after_comma=0, zlabel="value").plot()
dv.heatmapdatetime(series=ta_rh_swin_2004_2024['RH_T1_47_1'], title="RH_T1_47_1", ax=axs[2], cb_digits_after_comma=0, zlabel="value").plot()

../../_images/ee01725ddc358fae4f63c51dfcc2594d06372fbd2b3d8d0148618026bc0a9330.png

—#

PPFD_IN, LW_IN#

Data from `mst` meteoscreening (2004-2021)#

Download#

%%time

BUCKET = f'ch-lae_processed'
FIELDS = ['LW_IN_T1_47_1', 'PPFD_IN_T1_47_1']
MEASUREMENTS = ['LW', 'PPFD']
START = '2004-01-01 00:00:01'
STOP = '2022-01-01 00:00:01'
DATA_VERSION = 'meteoscreening_mst'

mst_lwin_ppfdin_2004_2021, _, _ = dbc.download(
    bucket=BUCKET,
    measurements=MEASUREMENTS,
    fields=FIELDS,
    start=START,  # Download data starting with this date (the start date itself IS included),
    stop=STOP,  # Download data before this date (the stop date itself IS NOT included),
    timezone_offset_to_utc_hours=TIMEZONE_OFFSET_TO_UTC_HOURS,
    data_version=DATA_VERSION
)

DOWNLOADING
    from bucket ch-lae_processed
    variables ['LW_IN_T1_47_1', 'PPFD_IN_T1_47_1']
    from measurements ['LW', 'PPFD']
    from data version ['meteoscreening_mst']
    between 2004-01-01 00:00:01 and 2022-01-01 00:00:01
    with timezone offset to UTC of 1
Using querystring:
from(bucket: "ch-lae_processed") |> range(start: 2004-01-01T00:00:01+01:00, stop: 2022-01-01T00:00:01+01:00) |> filter(fn: (r) => r["_measurement"] == "LW" or r["_measurement"] == "PPFD") |> filter(fn: (r) => r["data_version"] == "meteoscreening_mst") |> filter(fn: (r) => r["_field"] == "LW_IN_T1_47_1" or r["_field"] == "PPFD_IN_T1_47_1") |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
Used querystring: from(bucket: "ch-lae_processed") |> range(start: 2004-01-01T00:00:01+01:00, stop: 2022-01-01T00:00:01+01:00) |> filter(fn: (r) => r["_measurement"] == "LW" or r["_measurement"] == "PPFD") |> filter(fn: (r) => r["data_version"] == "meteoscreening_mst") |> filter(fn: (r) => r["_field"] == "LW_IN_T1_47_1" or r["_field"] == "PPFD_IN_T1_47_1") |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
querystring was constructed from:
    bucketstring: from(bucket: "ch-lae_processed")
    rangestring: |> range(start: 2004-01-01T00:00:01+01:00, stop: 2022-01-01T00:00:01+01:00)
    measurementstring: |> filter(fn: (r) => r["_measurement"] == "LW" or r["_measurement"] == "PPFD")
    dataversionstring: |> filter(fn: (r) => r["data_version"] == "meteoscreening_mst")
    fieldstring: |> filter(fn: (r) => r["_field"] == "LW_IN_T1_47_1" or r["_field"] == "PPFD_IN_T1_47_1")
    pivotstring: |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
Download finished.
Downloaded data for 2 variables:
<-- LW_IN_T1_47_1  (282159 records)  first date: 2005-09-14 13:30:00  last date: 2022-01-01 00:00:00
<-- PPFD_IN_T1_47_1  (300291 records)  first date: 2004-09-20 11:00:00  last date: 2022-01-01 00:00:00
========================================
Fields in measurement LW of bucket ch-lae_processed:
#1  ch-lae_processed  LW  LW_IN_COR_T1_47_1
#2  ch-lae_processed  LW  LW_IN_ERA
#3  ch-lae_processed  LW  LW_IN_F
#4  ch-lae_processed  LW  LW_IN_F_MDS
#5  ch-lae_processed  LW  LW_IN_F_MDS_QC
#6  ch-lae_processed  LW  LW_IN_F_QC
#7  ch-lae_processed  LW  LW_IN_JSB
#8  ch-lae_processed  LW  LW_IN_JSB_ERA
#9  ch-lae_processed  LW  LW_IN_JSB_F
#10  ch-lae_processed  LW  LW_IN_JSB_F_QC
#11  ch-lae_processed  LW  LW_IN_JSB_QC
#12  ch-lae_processed  LW  LW_IN_T1_47_1
#13  ch-lae_processed  LW  LW_OUT_COR_T1_47_1
#14  ch-lae_processed  LW  LW_OUT_T1_47_1
Found 14 fields in measurement LW of bucket ch-lae_processed.
========================================
========================================
Fields in measurement PPFD of bucket ch-lae_processed:
#1  ch-lae_processed  PPFD  PPFD_DIF_T1_47_1
#2  ch-lae_processed  PPFD  PPFD_IN
#3  ch-lae_processed  PPFD  PPFD_IN_CORRECTED_T1_47_1
#4  ch-lae_processed  PPFD  PPFD_IN_CORRECTED_T1_47_2
#5  ch-lae_processed  PPFD  PPFD_IN_FF1_2_1
#6  ch-lae_processed  PPFD  PPFD_IN_T1_47_1
#7  ch-lae_processed  PPFD  PPFD_IN_T1_47_2
#8  ch-lae_processed  PPFD  PPFD_OUT_CORRECTED_T1_47_1
#9  ch-lae_processed  PPFD  PPFD_OUT_CORRECTED_T1_47_2
#10  ch-lae_processed  PPFD  PPFD_OUT_T1_47_1
#11  ch-lae_processed  PPFD  PPFD_OUT_T1_47_2
Found 11 fields in measurement PPFD of bucket ch-lae_processed.
========================================
CPU times: total: 11.4 s
Wall time: 16.1 s

mst_lwin_ppfdin_2004_2021

	LW_IN_T1_47_1	PPFD_IN_T1_47_1
TIMESTAMP_END
2004-09-20 11:00:00	NaN	1078.000000
2004-09-20 11:30:00	NaN	889.000000
2004-09-20 12:00:00	NaN	1030.000000
2004-09-20 12:30:00	NaN	1292.000000
2004-09-20 13:00:00	NaN	750.000000
...	...	...
2021-12-31 22:00:00	280.736376	2.593284
2021-12-31 22:30:00	281.142280	2.600834
2021-12-31 23:00:00	280.816904	2.574417
2021-12-31 23:30:00	280.198511	2.591455
2022-01-01 00:00:00	280.987660	2.595235

300294 rows × 2 columns

Sanitize timestamp#

mst_lwin_ppfdin_2004_2021 = TimestampSanitizer(data=mst_lwin_ppfdin_2004_2021, output_middle_timestamp=False).get()
mst_lwin_ppfdin_2004_2021

	LW_IN_T1_47_1	PPFD_IN_T1_47_1
TIMESTAMP_END
2004-09-20 11:00:00	NaN	1078.000000
2004-09-20 11:30:00	NaN	889.000000
2004-09-20 12:00:00	NaN	1030.000000
2004-09-20 12:30:00	NaN	1292.000000
2004-09-20 13:00:00	NaN	750.000000
...	...	...
2021-12-31 22:00:00	280.736376	2.593284
2021-12-31 22:30:00	281.142280	2.600834
2021-12-31 23:00:00	280.816904	2.574417
2021-12-31 23:30:00	280.198511	2.591455
2022-01-01 00:00:00	280.987660	2.595235

302955 rows × 2 columns

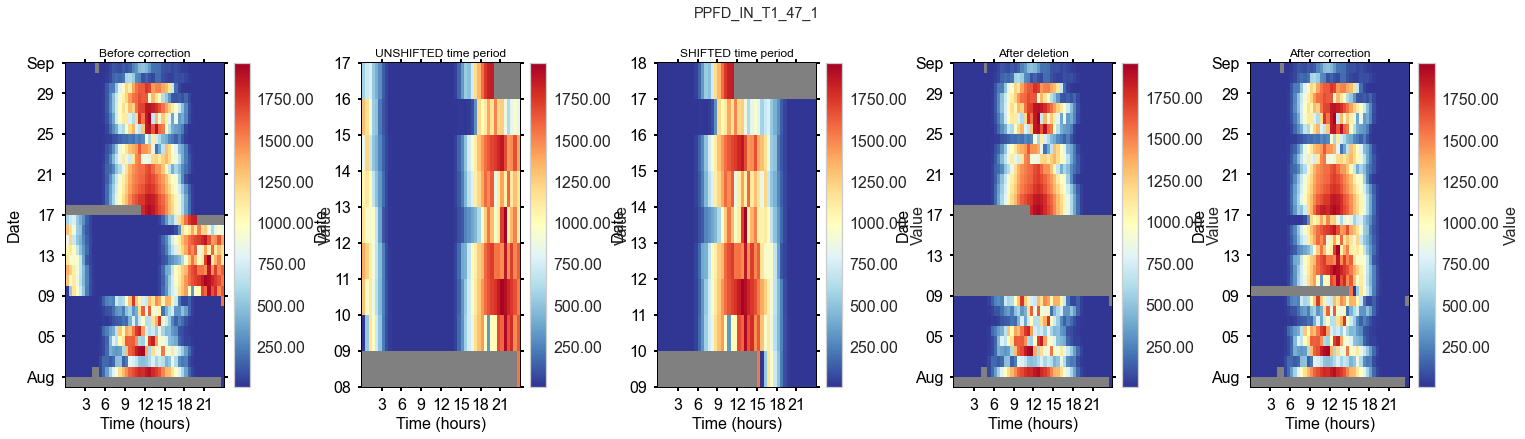

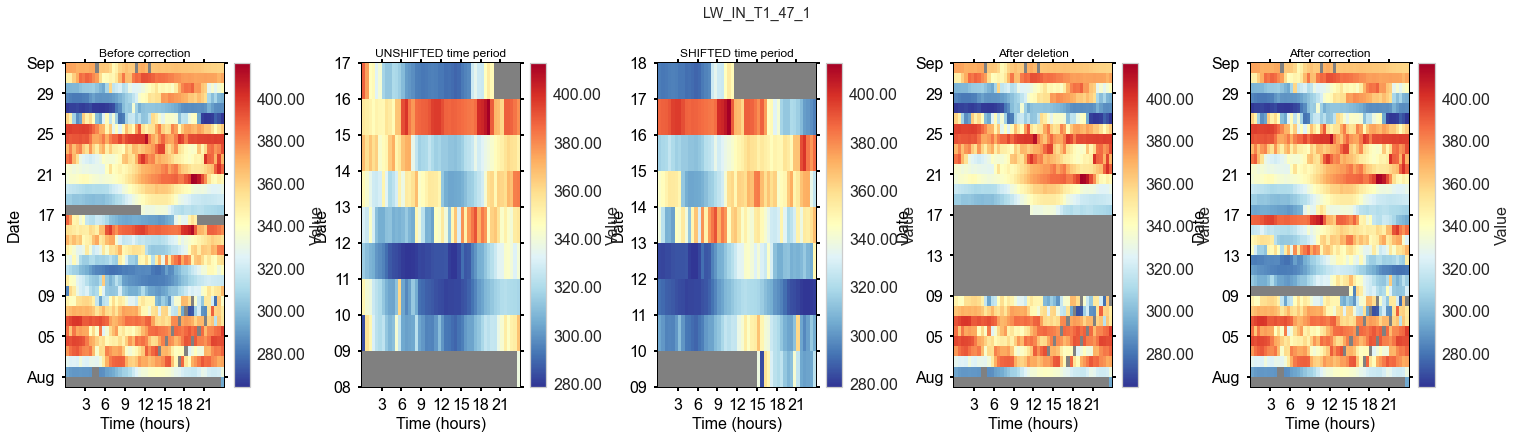

Correction: timestamp shift in August 2012#

Info from fieldbook entry 17 Aug 2012:

adjusted the logger date and time. On Servertime (Computer System Time) 17.08.2012 12:31.42 the loggertime was 16.08.2012 08:06:00. Synchronized time at 17.08.2012 11:40:00 servertime. The logger data aquisition on the moxa embedded was restarted

AFFECTED_VARS = ['LW_IN_T1_47_1', 'PPFD_IN_T1_47_1']

for av in AFFECTED_VARS:
    fig = plt.figure(figsize=(24, 6), dpi=72)
    fig.suptitle(f"{av}")
    gs = gridspec.GridSpec(1, 5)  # rows, cols
    gs.update(wspace=0.5, hspace=1, left=.1, right=.9, top=.85, bottom=.1)
    ax_before = fig.add_subplot(gs[0, 0])
    ax_unshifted = fig.add_subplot(gs[0, 1])
    ax_shifted = fig.add_subplot(gs[0, 2])
    ax_after = fig.add_subplot(gs[0, 3])
    ax_corrected = fig.add_subplot(gs[0, 4])

    # Show time period around issue, before correction
    # _series = mst_lwin_ppfdin_2004_2021[av].copy()
    _show_locs = (mst_lwin_ppfdin_2004_2021.index >= '2012-08-01 00:00') & (mst_lwin_ppfdin_2004_2021.index <= '2012-09-01 00:00')
    dv.heatmapdatetime(series=mst_lwin_ppfdin_2004_2021.loc[_show_locs, av], ax=ax_before, title="Before correction").plot()

    # Get shifted time period
    _series_corrected = mst_lwin_ppfdin_2004_2021.loc[_show_locs, av].copy()
    # Identify shifted time period
    ISSUE_START = '2012-08-09 00:00'
    ISSUE_END = '2012-08-17 00:00'
    _shifted_locs = (mst_lwin_ppfdin_2004_2021.index >= ISSUE_START) & (mst_lwin_ppfdin_2004_2021.index <= ISSUE_END)
    _series_shifted = mst_lwin_ppfdin_2004_2021.loc[_shifted_locs, av].copy()
    _series_shifted = _series_shifted.dropna()
    dv.heatmapdatetime(series=_series_shifted, ax=ax_unshifted, title="UNSHIFTED time period").plot()

    # Shift SW_IN by 15.5 hours during shifted time period, create corrected time series
    _series_shifted.index = _series_shifted.index + pd.Timedelta(hours=15.5)
    dv.heatmapdatetime(series=_series_shifted, ax=ax_shifted, title="SHIFTED time period").plot()

    # Delete data between start of issue and the last timestamp of shifted data
    _overwrite_locs = (mst_lwin_ppfdin_2004_2021.index >= ISSUE_START) & (mst_lwin_ppfdin_2004_2021.index <= _series_shifted.index[-1])
    mst_lwin_ppfdin_2004_2021.loc[_overwrite_locs, av] = np.nan
    dv.heatmapdatetime(series=mst_lwin_ppfdin_2004_2021.loc[_show_locs, av], ax=ax_after, title="After deletion").plot()

    # Fill in corrected values
    mst_lwin_ppfdin_2004_2021.loc[_overwrite_locs, av] = _series_shifted
    # _series_corrected = _series_corrected.combine_first(_series_shifted)
    dv.heatmapdatetime(series=mst_lwin_ppfdin_2004_2021.loc[_show_locs, av], ax=ax_corrected, title="After correction").plot()

    # print(_series_shifted.index[-1])
    # print(_series_shifted)
    # print(_series_corrected[_overwrite_locs])

../../_images/0c7050282e1dba05f444b6b7236f6ec6e9a1d7dcdfde1b08e50c4bc7e0aa0a38.png

../../_images/0fa1138070f6906cfba98be8f2c67ef6402f245a85ff117f2acf4934e010098a.png

Rename variables for merging#

renaming_dict = {
    'LW_IN_T1_47_1': 'LW_IN_T1_47_1',
    'PPFD_IN_T1_47_1': 'PPFD_IN_T1_47_1',
    'RH_T1_47_1': 'RH_T1_47_1',
    'SW_IN_T1_47_1': 'SW_IN_T1_47_1',
    'TA_T1_47_1': 'TA_T1_47_1',
    'PA_T1_47_1': 'PA_T1_47_1'
}
mst_lwin_ppfdin_2004_2021 = mst_lwin_ppfdin_2004_2021.rename(columns=renaming_dict)
mst_lwin_ppfdin_2004_2021

	LW_IN_T1_47_1	PPFD_IN_T1_47_1
TIMESTAMP_END
2004-09-20 11:00:00	NaN	1078.000000
2004-09-20 11:30:00	NaN	889.000000
2004-09-20 12:00:00	NaN	1030.000000
2004-09-20 12:30:00	NaN	1292.000000
2004-09-20 13:00:00	NaN	750.000000
...	...	...
2021-12-31 22:00:00	280.736376	2.593284
2021-12-31 22:30:00	281.142280	2.600834
2021-12-31 23:00:00	280.816904	2.574417
2021-12-31 23:30:00	280.198511	2.591455
2022-01-01 00:00:00	280.987660	2.595235

302955 rows × 2 columns

Data from `diive` meteoscreening (2022-2024)#

Download#

%%time

BUCKET = f'ch-lae_processed'
FIELDS = ['LW_IN_T1_47_1', 'PPFD_IN_T1_47_1']
MEASUREMENTS = ['LW', 'PPFD']
START = '2022-01-01 00:00:01'
STOP = '2025-01-01 00:00:01'
DATA_VERSION = 'meteoscreening_diive'

diive_lwin_ppfdin_2022_2024, _, _ = dbc.download(
    bucket=BUCKET,
    measurements=MEASUREMENTS,
    fields=FIELDS,
    start=START,  # Download data starting with this date (the start date itself IS included),
    stop=STOP,  # Download data before this date (the stop date itself IS NOT included),
    timezone_offset_to_utc_hours=TIMEZONE_OFFSET_TO_UTC_HOURS,
    data_version=DATA_VERSION
)

DOWNLOADING
    from bucket ch-lae_processed
    variables ['LW_IN_T1_47_1', 'PPFD_IN_T1_47_1']
    from measurements ['LW', 'PPFD']
    from data version ['meteoscreening_diive']
    between 2022-01-01 00:00:01 and 2025-01-01 00:00:01
    with timezone offset to UTC of 1
Using querystring:
from(bucket: "ch-lae_processed") |> range(start: 2022-01-01T00:00:01+01:00, stop: 2025-01-01T00:00:01+01:00) |> filter(fn: (r) => r["_measurement"] == "LW" or r["_measurement"] == "PPFD") |> filter(fn: (r) => r["data_version"] == "meteoscreening_diive") |> filter(fn: (r) => r["_field"] == "LW_IN_T1_47_1" or r["_field"] == "PPFD_IN_T1_47_1") |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
Used querystring: from(bucket: "ch-lae_processed") |> range(start: 2022-01-01T00:00:01+01:00, stop: 2025-01-01T00:00:01+01:00) |> filter(fn: (r) => r["_measurement"] == "LW" or r["_measurement"] == "PPFD") |> filter(fn: (r) => r["data_version"] == "meteoscreening_diive") |> filter(fn: (r) => r["_field"] == "LW_IN_T1_47_1" or r["_field"] == "PPFD_IN_T1_47_1") |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
querystring was constructed from:
    bucketstring: from(bucket: "ch-lae_processed")
    rangestring: |> range(start: 2022-01-01T00:00:01+01:00, stop: 2025-01-01T00:00:01+01:00)
    measurementstring: |> filter(fn: (r) => r["_measurement"] == "LW" or r["_measurement"] == "PPFD")
    dataversionstring: |> filter(fn: (r) => r["data_version"] == "meteoscreening_diive")
    fieldstring: |> filter(fn: (r) => r["_field"] == "LW_IN_T1_47_1" or r["_field"] == "PPFD_IN_T1_47_1")
    pivotstring: |> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
Download finished.
Downloaded data for 2 variables:
<-- LW_IN_T1_47_1  (52492 records)  first date: 2022-01-01 00:30:00  last date: 2025-01-01 00:00:00
<-- PPFD_IN_T1_47_1  (52526 records)  first date: 2022-01-01 00:30:00  last date: 2025-01-01 00:00:00
========================================
Fields in measurement LW of bucket ch-lae_processed:
#1  ch-lae_processed  LW  LW_IN_COR_T1_47_1
#2  ch-lae_processed  LW  LW_IN_ERA
#3  ch-lae_processed  LW  LW_IN_F
#4  ch-lae_processed  LW  LW_IN_F_MDS
#5  ch-lae_processed  LW  LW_IN_F_MDS_QC
#6  ch-lae_processed  LW  LW_IN_F_QC
#7  ch-lae_processed  LW  LW_IN_JSB
#8  ch-lae_processed  LW  LW_IN_JSB_ERA
#9  ch-lae_processed  LW  LW_IN_JSB_F
#10  ch-lae_processed  LW  LW_IN_JSB_F_QC
#11  ch-lae_processed  LW  LW_IN_JSB_QC
#12  ch-lae_processed  LW  LW_IN_T1_47_1
#13  ch-lae_processed  LW  LW_OUT_COR_T1_47_1
#14  ch-lae_processed  LW  LW_OUT_T1_47_1
Found 14 fields in measurement LW of bucket ch-lae_processed.
========================================
========================================
Fields in measurement PPFD of bucket ch-lae_processed:
#1  ch-lae_processed  PPFD  PPFD_DIF_T1_47_1
#2  ch-lae_processed  PPFD  PPFD_IN
#3  ch-lae_processed  PPFD  PPFD_IN_CORRECTED_T1_47_1
#4  ch-lae_processed  PPFD  PPFD_IN_CORRECTED_T1_47_2
#5  ch-lae_processed  PPFD  PPFD_IN_FF1_2_1
#6  ch-lae_processed  PPFD  PPFD_IN_T1_47_1
#7  ch-lae_processed  PPFD  PPFD_IN_T1_47_2
#8  ch-lae_processed  PPFD  PPFD_OUT_CORRECTED_T1_47_1
#9  ch-lae_processed  PPFD  PPFD_OUT_CORRECTED_T1_47_2
#10  ch-lae_processed  PPFD  PPFD_OUT_T1_47_1
#11  ch-lae_processed  PPFD  PPFD_OUT_T1_47_2
Found 11 fields in measurement PPFD of bucket ch-lae_processed.
========================================
CPU times: total: 2.03 s
Wall time: 3.06 s

diive_lwin_ppfdin_2022_2024

	LW_IN_T1_47_1	PPFD_IN_T1_47_1
TIMESTAMP_END
2022-01-01 00:30:00	281.339657	0.0
2022-01-01 01:00:00	280.357413	0.0
2022-01-01 01:30:00	279.863157	0.0
2022-01-01 02:00:00	280.836867	0.0
2022-01-01 02:30:00	280.860203	0.0
...	...	...
2024-12-31 22:00:00	232.595527	0.0
2024-12-31 22:30:00	232.609777	0.0
2024-12-31 23:00:00	232.345020	0.0
2024-12-31 23:30:00	234.211100	0.0
2025-01-01 00:00:00	231.760533	0.0

52526 rows × 2 columns

Sanitize timestamp#

diive_lwin_ppfdin_2022_2024 = TimestampSanitizer(data=diive_lwin_ppfdin_2022_2024, output_middle_timestamp=False).get()
diive_lwin_ppfdin_2022_2024

	LW_IN_T1_47_1	PPFD_IN_T1_47_1
TIMESTAMP_END
2022-01-01 00:30:00	281.339657	0.0
2022-01-01 01:00:00	280.357413	0.0
2022-01-01 01:30:00	279.863157	0.0
2022-01-01 02:00:00	280.836867	0.0
2022-01-01 02:30:00	280.860203	0.0
...	...	...
2024-12-31 22:00:00	232.595527	0.0
2024-12-31 22:30:00	232.609777	0.0
2024-12-31 23:00:00	232.345020	0.0
2024-12-31 23:30:00	234.211100	0.0
2025-01-01 00:00:00	231.760533	0.0

52608 rows × 2 columns

Rename variables for merging#

renaming_dict = {
    'LW_IN_T1_47_1': 'LW_IN_T1_47_1',
    'PPFD_IN_T1_47_1': 'PPFD_IN_T1_47_1',
    'RH_T1_47_1': 'RH_T1_47_1',
    'SW_IN_T1_47_1': 'SW_IN_T1_47_1',
    'TA_T1_47_1': 'TA_T1_47_1',
    'PA_T1_47_1': 'PA_T1_47_1'
}
diive_lwin_ppfdin_2022_2024 = diive_lwin_ppfdin_2022_2024.rename(columns=renaming_dict)
diive_lwin_ppfdin_2022_2024

	LW_IN_T1_47_1	PPFD_IN_T1_47_1
TIMESTAMP_END
2022-01-01 00:30:00	281.339657	0.0
2022-01-01 01:00:00	280.357413	0.0
2022-01-01 01:30:00	279.863157	0.0
2022-01-01 02:00:00	280.836867	0.0
2022-01-01 02:30:00	280.860203	0.0
...	...	...
2024-12-31 22:00:00	232.595527	0.0
2024-12-31 22:30:00	232.609777	0.0
2024-12-31 23:00:00	232.345020	0.0
2024-12-31 23:30:00	234.211100	0.0
2025-01-01 00:00:00	231.760533	0.0

52608 rows × 2 columns

Merge data#

# Merge data on index
lwin_ppfdin_2004_2024 = pd.concat([mst_lwin_ppfdin_2004_2021, diive_lwin_ppfdin_2022_2024], axis=0)
lwin_ppfdin_2004_2024 = lwin_ppfdin_2004_2024.sort_index()
lwin_ppfdin_2004_2024

	LW_IN_T1_47_1	PPFD_IN_T1_47_1
TIMESTAMP_END
2004-09-20 11:00:00	NaN	1078.0
2004-09-20 11:30:00	NaN	889.0
2004-09-20 12:00:00	NaN	1030.0
2004-09-20 12:30:00	NaN	1292.0
2004-09-20 13:00:00	NaN	750.0
...	...	...
2024-12-31 22:00:00	232.595527	0.0
2024-12-31 22:30:00	232.609777	0.0
2024-12-31 23:00:00	232.345020	0.0
2024-12-31 23:30:00	234.211100	0.0
2025-01-01 00:00:00	231.760533	0.0

355563 rows × 2 columns

Sanitize timestamp#

lwin_ppfdin_2004_2024 = TimestampSanitizer(data=lwin_ppfdin_2004_2024, output_middle_timestamp=False).get()
lwin_ppfdin_2004_2024

	LW_IN_T1_47_1	PPFD_IN_T1_47_1
TIMESTAMP_END
2004-09-20 11:00:00	NaN	1078.0
2004-09-20 11:30:00	NaN	889.0
2004-09-20 12:00:00	NaN	1030.0
2004-09-20 12:30:00	NaN	1292.0
2004-09-20 13:00:00	NaN	750.0
...	...	...
2024-12-31 22:00:00	232.595527	0.0
2024-12-31 22:30:00	232.609777	0.0
2024-12-31 23:00:00	232.345020	0.0
2024-12-31 23:30:00	234.211100	0.0
2025-01-01 00:00:00	231.760533	0.0

355563 rows × 2 columns

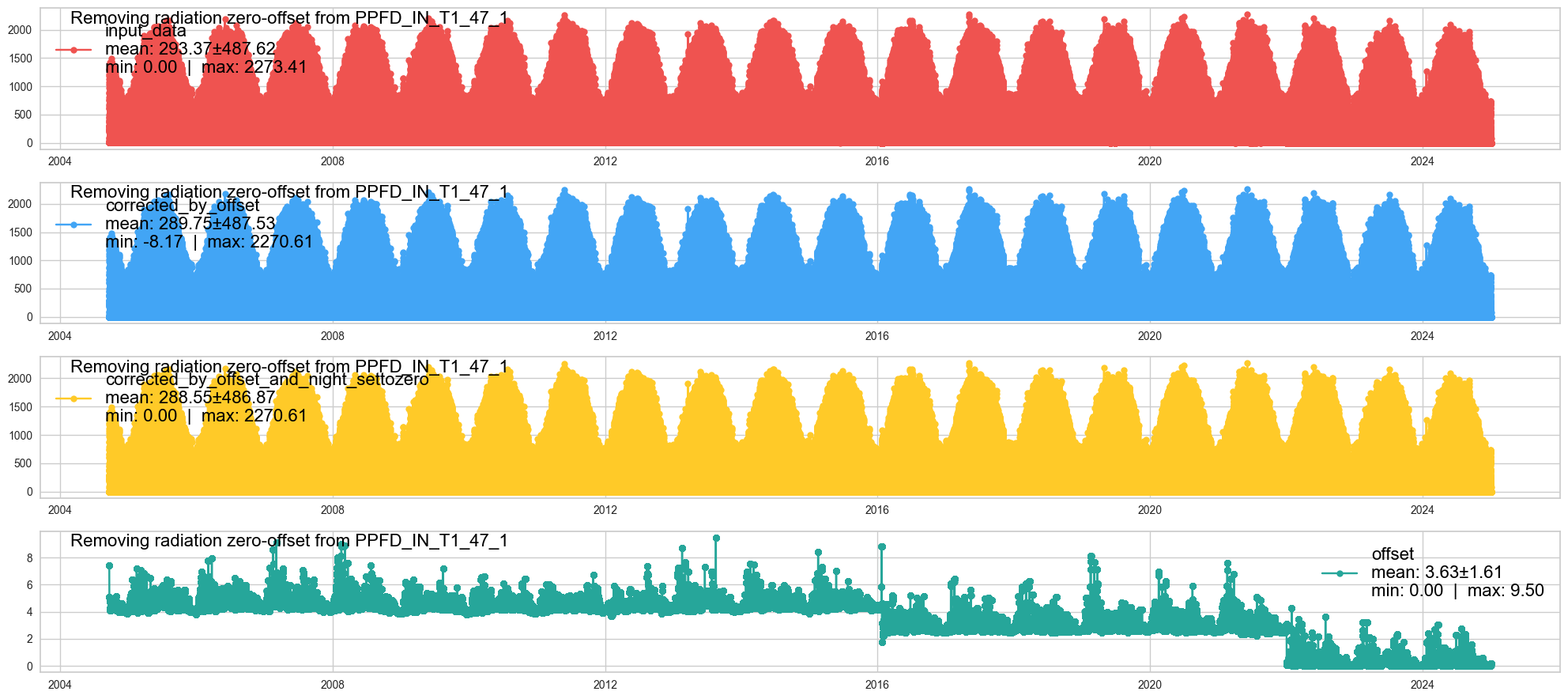

Correction: Remove zero offset < 0 from `PPFD_IN`#

_ppfdin = lwin_ppfdin_2004_2024['PPFD_IN_T1_47_1'].copy()
_ppfdin_corrected = remove_radiation_zero_offset(series=_ppfdin, lat=SITE_LAT, lon=SITE_LON, utc_offset=1, showplot=True)
lwin_ppfdin_2004_2024['PPFD_IN_T1_47_1'] = np.nan
lwin_ppfdin_2004_2024['PPFD_IN_T1_47_1'] = _ppfdin_corrected

[remove_radiation_zero_offset]  running remove_radiation_zero_offset ...

../../_images/8224bb14b40dc3e57eaae753cbbc05f5be5a9ed2d32fb8e7d80d551680af5d44.png

../../_images/982b474ebc29d713d9081ba461ff120cbc355783e09662aa7889b36507c14d29.png

Dataframe#

lwin_ppfdin_2004_2024

	LW_IN_T1_47_1	PPFD_IN_T1_47_1
TIMESTAMP_END
2004-09-20 11:00:00	NaN	1070.543364
2004-09-20 11:30:00	NaN	881.543364
2004-09-20 12:00:00	NaN	1022.543364
2004-09-20 12:30:00	NaN	1284.543364
2004-09-20 13:00:00	NaN	742.543364
...	...	...
2024-12-31 22:00:00	232.595527	0.000000
2024-12-31 22:30:00	232.609777	0.000000
2024-12-31 23:00:00	232.345020	0.000000
2024-12-31 23:30:00	234.211100	0.000000
2025-01-01 00:00:00	231.760533	0.000000

355563 rows × 2 columns

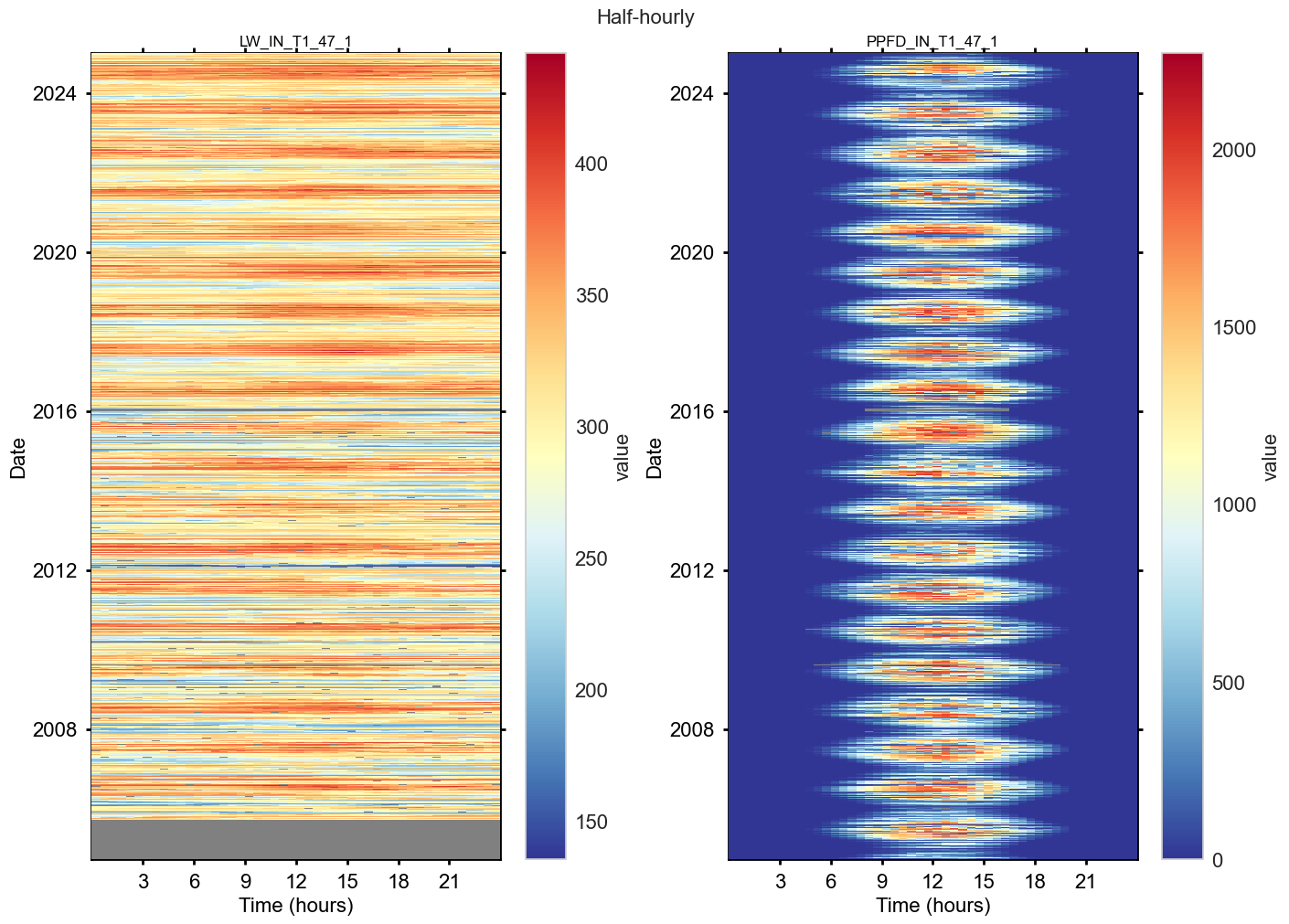

Plot heatmaps#

fig, axs = plt.subplots(ncols=2, figsize=(14, 10), dpi=100, layout="constrained")
fig.suptitle(f'Half-hourly', fontsize=16)
dv.heatmapdatetime(series=lwin_ppfdin_2004_2024['LW_IN_T1_47_1'], title="LW_IN_T1_47_1", ax=axs[0], cb_digits_after_comma=0, zlabel="value").plot()
dv.heatmapdatetime(series=lwin_ppfdin_2004_2024['PPFD_IN_T1_47_1'], title="PPFD_IN_T1_47_1", ax=axs[1], cb_digits_after_comma=0, zlabel="value").plot()

../../_images/bdfe57a1d0d8f5dc8dd59d94ee169794663bd71d8ad9a51e134eabfa52aaa083.png

—#

Data from `diive` meteoscreening (2022-2024)#

Download#

%%time

BUCKET = f'ch-lae_processed'
FIELDS = ['TA_T1_47_1', 'RH_T1_47_1', 'SW_IN_T1_47_1', 'LW_IN_T1_47_1', 'PA_T1_47_1', 'PPFD_IN_T1_47_1']
MEASUREMENTS = ['TA', 'RH', 'LW', 'PPFD', 'SW', 'PA']
START = '2022-01-01 00:00:01'
STOP = '2025-01-01 00:00:01'
DATA_VERSION = 'meteoscreening_diive'

data_simple_diive, data_detailed_diive, assigned_measurements_diive = dbc.download(
    bucket=BUCKET,
    measurements=MEASUREMENTS,
    fields=FIELDS,
    start=START,  # Download data starting with this date (the start date itself IS included),
    stop=STOP,  # Download data before this date (the stop date itself IS NOT included),
    timezone_offset_to_utc_hours=TIMEZONE_OFFSET_TO_UTC_HOURS,
    data_version=DATA_VERSION
)

data_simple_diive

Sanitize timestamp#

data_simple_diive = TimestampSanitizer(data=data_simple_diive, output_middle_timestamp=False).get()
data_simple_diive

Correction: adjust units `PA`#

# Convert units from Pa to kPa
data_simple_diive['PA_T1_47_1'] = data_simple_diive['PA_T1_47_1'].divide(1000)
data_simple_diive

Rename variables for merging#

renaming_dict = {
    'LW_IN_T1_47_1': 'LW_IN_T1_47_1',
    'PPFD_IN_T1_47_1': 'PPFD_IN_T1_47_1',
    'RH_T1_47_1': 'RH_T1_47_1',
    'SW_IN_T1_47_1': 'SW_IN_T1_47_1',
    'TA_T1_47_1': 'TA_T1_47_1',
    'PA_T1_47_1': 'PA_T1_47_1'
}
data_simple_diive = data_simple_diive.rename(columns=renaming_dict)
data_simple_diive

Data from `mst` meteoscreening (2004-2021)#

Download#

%%time

BUCKET = f'ch-lae_processed'
FIELDS = ['TA_T1_47_1', 'RH_T1_47_1', 'SW_IN_T1_47_1', 'LW_IN_T1_47_1', 'PA_T1_47_1', 'PPFD_IN_T1_47_1']
MEASUREMENTS = ['TA', 'RH', 'LW', 'PPFD', 'SW', 'PA']
START = '2004-01-01 00:00:01'
STOP = '2022-01-01 00:00:01'
DATA_VERSION = 'meteoscreening_mst'

data_simple_mst, data_detailed_mst, assigned_measurements_mst = dbc.download(
    bucket=BUCKET,
    measurements=MEASUREMENTS,
    fields=FIELDS,
    start=START,  # Download data starting with this date (the start date itself IS included),
    stop=STOP,  # Download data before this date (the stop date itself IS NOT included),
    timezone_offset_to_utc_hours=TIMEZONE_OFFSET_TO_UTC_HOURS,
    data_version=DATA_VERSION
)

data_simple_mst

Sanitize timestamp#

data_simple_mst = TimestampSanitizer(data=data_simple_mst, output_middle_timestamp=False).get()
data_simple_mst

Correction: timestamp shift in August 2012#

Info from fieldbook entry 17 Aug 2012:

adjusted the logger date and time. On Servertime (Computer System Time) 17.08.2012 12:31.42 the loggertime was 16.08.2012 08:06:00. Synchronized time at 17.08.2012 11:40:00 servertime. The logger data aquisition on the moxa embedded was restarted

AFFECTED_VARS = ['TA_T1_47_1', 'RH_T1_47_1', 'SW_IN_T1_47_1', 'LW_IN_T1_47_1', 'PA_T1_47_1', 'PPFD_IN_T1_47_1']

for av in AFFECTED_VARS:
    fig = plt.figure(figsize=(24, 6), dpi=72)
    fig.suptitle(f"{av}")
    gs = gridspec.GridSpec(1, 5)  # rows, cols
    gs.update(wspace=0.5, hspace=1, left=.1, right=.9, top=.85, bottom=.1)
    ax_before = fig.add_subplot(gs[0, 0])
    ax_unshifted = fig.add_subplot(gs[0, 1])
    ax_shifted = fig.add_subplot(gs[0, 2])
    ax_after = fig.add_subplot(gs[0, 3])
    ax_corrected = fig.add_subplot(gs[0, 4])

    # Show time period around issue, before correction
    # _series = data_simple_mst[av].copy()
    _show_locs = (data_simple_mst.index >= '2012-08-01 00:00') & (data_simple_mst.index <= '2012-09-01 00:00')
    dv.heatmapdatetime(series=data_simple_mst.loc[_show_locs, av], ax=ax_before, title="Before correction").plot()

    # Get shifted time period
    _series_corrected = data_simple_mst.loc[_show_locs, av].copy()
    # Identify shifted time period
    ISSUE_START = '2012-08-09 00:00'
    ISSUE_END = '2012-08-17 00:00'
    _shifted_locs = (data_simple_mst.index >= ISSUE_START) & (data_simple_mst.index <= ISSUE_END)
    _series_shifted = data_simple_mst.loc[_shifted_locs, av].copy()
    _series_shifted = _series_shifted.dropna()
    dv.heatmapdatetime(series=_series_shifted, ax=ax_unshifted, title="UNSHIFTED time period").plot()

    # Shift SW_IN by 15.5 hours during shifted time period, create corrected time series
    _series_shifted.index = _series_shifted.index + pd.Timedelta(hours=15.5)
    dv.heatmapdatetime(series=_series_shifted, ax=ax_shifted, title="SHIFTED time period").plot()

    # Delete data between start of issue and the last timestamp of shifted data
    _overwrite_locs = (data_simple_mst.index >= ISSUE_START) & (data_simple_mst.index <= _series_shifted.index[-1])
    data_simple_mst.loc[_overwrite_locs, av] = np.nan
    dv.heatmapdatetime(series=data_simple_mst.loc[_show_locs, av], ax=ax_after, title="After deletion").plot()

    # Fill in corrected values
    data_simple_mst.loc[_overwrite_locs, av] = _series_shifted
    # _series_corrected = _series_corrected.combine_first(_series_shifted)
    dv.heatmapdatetime(series=data_simple_mst.loc[_show_locs, av], ax=ax_corrected, title="After correction").plot()

    # print(_series_shifted.index[-1])
    # print(_series_shifted)
    # print(_series_corrected[_overwrite_locs])

Rename variables for merging#

renaming_dict = {
    'LW_IN_T1_47_1': 'LW_IN_T1_47_1',
    'PPFD_IN_T1_47_1': 'PPFD_IN_T1_47_1',
    'RH_T1_47_1': 'RH_T1_47_1',
    'SW_IN_T1_47_1': 'SW_IN_T1_47_1',
    'TA_T1_47_1': 'TA_T1_47_1',
    'PA_T1_47_1': 'PA_T1_47_1'
}
data_simple_mst = data_simple_mst.rename(columns=renaming_dict)
data_simple_mst

Merge data#

# Merge data on index
data_simple_merged = pd.concat([data_simple_diive, data_simple_mst], axis=0)
data_simple_merged = data_simple_merged.sort_index()
data_simple_merged

Set start date to 1 Jan 2004#

# # Define the date for the new row
# start_date = pd.to_datetime('2004-01-01 00:30:00')

# # Create a new DataFrame for this single row
# # Initialize with NaN values for all columns that exist in the original DataFrame
# new_row_data = {col: [np.nan] for col in data_simple_merged.columns}
# new_row_df = pd.DataFrame(new_row_data, index=[start_date])

# # Concatenate the new row DataFrame with the original DataFrame
# # Use sort_index() to ensure the combined DataFrame is in chronological order
# data_simple_merged = pd.concat([new_row_df, data_simple_merged]).sort_index()
# data_simple_merged.index.name = "TIMESTAMP_END"
# data_simple_merged

Sanitize timestamp#

data_simple_merged = TimestampSanitizer(data=data_simple_merged, output_middle_timestamp=False).get()
data_simple_merged

Correction: Remove zero offset < 0 from `SW_IN`#

_swin = data_simple_merged['SW_IN_T1_47_1'].copy()
_swin_corrected = remove_radiation_zero_offset(series=_swin, lat=SITE_LAT, lon=SITE_LON, utc_offset=1, showplot=True)
data_simple_merged['SW_IN_T1_47_1'] = np.nan
data_simple_merged['SW_IN_T1_47_1'] = _swin_corrected

Correction: Remove zero offset < 0 from `PPFD_IN`#

_ppfdin = data_simple_merged['PPFD_IN_T1_47_1'].copy()
_ppfdin_corrected = remove_radiation_zero_offset(series=_ppfdin, lat=SITE_LAT, lon=SITE_LON, utc_offset=1, showplot=True)
data_simple_merged['PPFD_IN_T1_47_1'] = np.nan
data_simple_merged['PPFD_IN_T1_47_1'] = _ppfdin_corrected

Correction: Remove offset >100% from `RH`#

_rh = data_simple_merged['RH_T1_47_1'].copy()
_rh_corrected = remove_relativehumidity_offset(series=_rh, showplot=True)
data_simple_merged['RH_T1_47_1'] = np.nan
data_simple_merged['RH_T1_47_1'] = _rh_corrected

Plot#

_plot_df = data_simple_merged[FIELDS].copy()
_plot_df = _plot_df.replace(-9999, np.nan)

Time series plot#

_plot_df.plot(subplots=True, figsize=(20, 9), title="Meteo data", alpha=.9, x_compat=True);

Heatmaps#

for col in _plot_df.columns:
    series = _plot_df[col]
    series.name = col
    HeatmapDateTime(series, figsize=(6,9)).show()

Save to file#

OUTNAME = "12.1_METEO6_NOT-GAPFILLED_2004-2024"
OUTPATH = r""
filepath = save_parquet(filename=OUTNAME, data=data_simple_merged, outpath=OUTPATH)
data_simple_merged.to_csv(Path(OUTPATH) / f"{OUTNAME}.csv")

End of notebook.#

dt_string = datetime.now().strftime("%Y-%m-%d %H:%M:%S")
print(f"Finished. {dt_string}")

Download multiple meteoscreening variables

Contents

Download multiple meteoscreening variables#

Info about data sources of variables#

Settings#

Data settings#

Imports#

TA, SW_IN and RH#

NABEL data from diive meteoscreening (2004-2018)#

Download#

Sanitize timestamp#

Rename variables for merging#

Data from mst meteoscreening (2019-2021)#

Download#

Sanitize timestamp#

Rename variables for merging#

Data from diive meteoscreening (2022-2024)#

Download#

Sanitize timestamp#

Rename variables for merging#

Merge data#

Sanitize timestamp#

Correction: Remove zero offset < 0 from SW_IN#

Correction: Remove offset >100% from RH#

Dataframe#

Plot heatmaps#

—#

PPFD_IN, LW_IN#

Data from mst meteoscreening (2004-2021)#

Download#

Sanitize timestamp#

Correction: timestamp shift in August 2012#

Rename variables for merging#

Data from diive meteoscreening (2022-2024)#

Download#

Sanitize timestamp#

Rename variables for merging#

Merge data#

Sanitize timestamp#

Correction: Remove zero offset < 0 from PPFD_IN#

Dataframe#

Plot heatmaps#

—#

Data from diive meteoscreening (2022-2024)#

Download#

Sanitize timestamp#

Correction: adjust units PA#

Rename variables for merging#

Data from mst meteoscreening (2004-2021)#

Download#

Sanitize timestamp#

Correction: timestamp shift in August 2012#

Rename variables for merging#

Merge data#

Set start date to 1 Jan 2004#

Sanitize timestamp#

Correction: Remove zero offset < 0 from SW_IN#

Correction: Remove zero offset < 0 from PPFD_IN#

Correction: Remove offset >100% from RH#

Plot#

Time series plot#

Heatmaps#

Save to file#

End of notebook.#

`NABEL` data from `diive` meteoscreening (2004-2018)#

Data from `mst` meteoscreening (2019-2021)#

Data from `diive` meteoscreening (2022-2024)#

Correction: Remove zero offset < 0 from `SW_IN`#

Correction: Remove offset >100% from `RH`#

Data from `mst` meteoscreening (2004-2021)#

Data from `diive` meteoscreening (2022-2024)#

Correction: Remove zero offset < 0 from `PPFD_IN`#

Data from `diive` meteoscreening (2022-2024)#

Correction: adjust units `PA`#

Data from `mst` meteoscreening (2004-2021)#

Correction: Remove zero offset < 0 from `SW_IN`#

Correction: Remove zero offset < 0 from `PPFD_IN`#

Correction: Remove offset >100% from `RH`#
