FLUXES

Author: Lukas Hörtnagl (holukas@ethz.ch)

Imports

import importlib.metadata
import warnings
from datetime import datetime
from pathlib import Path
import pandas as pd
import matplotlib.pyplot as plt
import diive as dv
from diive.core.io.files import save_parquet, load_parquet
from diive.core.plotting.cumulative import CumulativeYear

warnings.filterwarnings(action='ignore', category=FutureWarning)
warnings.filterwarnings(action='ignore', category=UserWarning)
version_diive = importlib.metadata.version("diive")
print(f"diive version: v{version_diive}")

diive version: v0.87.0

Load data

SOURCEDIR = r"../80_FINALIZE"
FILENAME = r"81.1_FLUXES_M15_MGMT_L4.2_NEE_GPP_RECO_LE_H_FN2O_FCH4.parquet"
FILEPATH = Path(SOURCEDIR) / FILENAME
df = load_parquet(filepath=FILEPATH)
df

Loaded .parquet file ..\80_FINALIZE\81.1_FLUXES_M15_MGMT_L4.2_NEE_GPP_RECO_LE_H_FN2O_FCH4.parquet (1.005 seconds).
    --> Detected time resolution of <30 * Minutes> / 30min

	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-12	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-18	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-24	.PREC_RAIN_TOT_GF1_0.5_1_MEAN3H-6	.SWC_GF1_0.15_1_gfXG_MEAN3H-12	.SWC_GF1_0.15_1_gfXG_MEAN3H-18	.SWC_GF1_0.15_1_gfXG_MEAN3H-24	.SWC_GF1_0.15_1_gfXG_MEAN3H-6	.TS_GF1_0.04_1_gfXG_MEAN3H-12	.TS_GF1_0.04_1_gfXG_MEAN3H-18	.TS_GF1_0.04_1_gfXG_MEAN3H-24	.TS_GF1_0.04_1_gfXG_MEAN3H-6	.TS_GF1_0.15_1_gfXG_MEAN3H-12	.TS_GF1_0.15_1_gfXG_MEAN3H-18	.TS_GF1_0.15_1_gfXG_MEAN3H-24	...	GPP_NT_CUT_50_gfRF	RECO_DT_CUT_50_gfRF	GPP_DT_CUT_50_gfRF	RECO_DT_CUT_50_gfRF_SD	GPP_DT_CUT_50_gfRF_SD	G_GF1_0.03_1	G_GF1_0.03_2	G_GF1_0.05_1	G_GF1_0.05_2	G_GF4_0.02_1	G_GF5_0.02_1	LW_OUT_T1_2_1	NETRAD_T1_2_1	PPFD_OUT_T1_2_2	SW_OUT_T1_2_1
TIMESTAMP_MIDDLE
2005-01-01 00:15:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.918553	0.093071	0.0	0.080016	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 00:45:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.917972	0.092682	0.0	0.079688	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 01:15:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.163001	0.093071	0.0	0.080016	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 01:45:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.190890	0.093071	0.0	0.080016	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2005-01-01 02:15:00	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	...	0.167042	0.092295	0.0	0.079361	0.0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
2024-12-31 21:45:00	0.0	0.0	0.0	0.0	52.229004	52.226300	52.226689	52.216796	3.458828	3.150402	3.115260	3.660897	4.335667	4.347764	4.385967	...	-0.334996	1.091028	0.0	0.265808	0.0	NaN	NaN	-9.097370	-7.880106	NaN	NaN	311.167160	-5.883538	0.0	0.0
2024-12-31 22:15:00	0.0	0.0	0.0	0.0	52.227858	52.227986	52.224528	52.214211	3.522570	3.187638	3.103440	3.643396	4.338551	4.342880	4.379524	...	-0.310533	1.078751	0.0	0.264327	0.0	NaN	NaN	-9.561669	-8.172388	NaN	NaN	310.079817	-6.269816	0.0	0.0
2024-12-31 22:45:00	0.0	0.0	0.0	0.0	52.226640	52.229837	52.222456	52.209876	3.578745	3.230037	3.095339	3.624025	4.343767	4.339440	4.372636	...	-0.225651	1.079759	0.0	0.264447	0.0	NaN	NaN	-10.138718	-8.527732	NaN	NaN	309.604987	-6.934394	0.0	0.0
2024-12-31 23:15:00	0.0	0.0	0.0	0.0	52.224375	52.231151	52.221324	52.238293	3.624160	3.278488	3.093806	3.601135	4.350872	4.336333	4.366082	...	-0.558285	1.062164	0.0	0.262373	0.0	NaN	NaN	-10.649611	-8.871628	NaN	NaN	308.812117	-5.696729	0.0	0.0
2024-12-31 23:45:00	0.0	0.0	0.0	0.0	52.222007	52.230632	52.222701	52.273511	3.656167	3.331678	3.103003	3.579020	4.360311	4.334225	4.359530	...	-0.317543	1.047483	0.0	0.260688	0.0	NaN	NaN	-10.944774	-9.138224	NaN	NaN	307.372117	-8.102484	0.0	0.0

350640 rows × 812 columns

List of gap-filled flux variables

fluxlist = [c for c in df.columns if str(c).endswith("gfRF")];
fluxlist

['NEE_L3.1_L3.3_CUT_16_QCF_gfRF',
 'NEE_L3.1_L3.3_CUT_50_QCF_gfRF',
 'NEE_L3.1_L3.3_CUT_84_QCF_gfRF',
 'LE_L3.1_L3.3_CUT_NONE_QCF_gfRF',
 'H_L3.1_L3.3_CUT_NONE_QCF_gfRF',
 'FN2O_L3.1_L3.3_CUT_16_QCF_gfRF',
 'FN2O_L3.1_L3.3_CUT_50_QCF_gfRF',
 'FN2O_L3.1_L3.3_CUT_84_QCF_gfRF',
 'FCH4_L3.1_L3.3_CUT_16_QCF_gfRF',
 'FCH4_L3.1_L3.3_CUT_50_QCF_gfRF',
 'FCH4_L3.1_L3.3_CUT_84_QCF_gfRF',
 'RECO_NT_CUT_16_gfRF',
 'GPP_NT_CUT_16_gfRF',
 'RECO_DT_CUT_16_gfRF',
 'GPP_DT_CUT_16_gfRF',
 'RECO_NT_CUT_84_gfRF',
 'GPP_NT_CUT_84_gfRF',
 'RECO_DT_CUT_84_gfRF',
 'GPP_DT_CUT_84_gfRF',
 'RECO_NT_CUT_50_gfRF',
 'GPP_NT_CUT_50_gfRF',
 'RECO_DT_CUT_50_gfRF',
 'GPP_DT_CUT_50_gfRF']

Fluxes: gap-filled (random forest)

Main ecosystem fluxes

nee = 'NEE_L3.1_L3.3_CUT_50_QCF_gfRF'
le = 'LE_L3.1_L3.3_CUT_NONE_QCF_gfRF'
h = 'H_L3.1_L3.3_CUT_NONE_QCF_gfRF'
n2o = 'FN2O_L3.1_L3.3_CUT_50_QCF_gfRF'
ch4 = 'FCH4_L3.1_L3.3_CUT_50_QCF_gfRF'
gpp = 'GPP_DT_CUT_50_gfRF'
reco = 'RECO_DT_CUT_50_gfRF'
fluxes = [nee, gpp, reco, le, h, n2o, ch4]
fluxes

['NEE_L3.1_L3.3_CUT_50_QCF_gfRF',
 'GPP_DT_CUT_50_gfRF',
 'RECO_DT_CUT_50_gfRF',
 'LE_L3.1_L3.3_CUT_NONE_QCF_gfRF',
 'H_L3.1_L3.3_CUT_NONE_QCF_gfRF',
 'FN2O_L3.1_L3.3_CUT_50_QCF_gfRF',
 'FCH4_L3.1_L3.3_CUT_50_QCF_gfRF']

Flux units: $\( \mathrm{NEE=\mu mol\ CO_{2}\ m^{-2}\ s^{-1}} \)\( \)\( \mathrm{LE=W\ m^{-2}} \)\( \)\( \mathrm{H=W\ m^{-2}} \)\( \)\( \mathrm{N_{2}O=nmol\ N_{2}O\ m^{-2}\ s^{-1}} \)\( \)\( \mathrm{CH_{4}=nmol\ CH_{4}\ m^{-2}\ s^{-1}} \)$

units_nee = r"$\mathrm{\mu mol\ CO_{2}\ m^{-2}\ s^{-1}}$"
units_gpp = r"$\mathrm{\mu mol\ CO_{2}\ m^{-2}\ s^{-1}}$"
units_reco = r"$\mathrm{\mu mol\ CO_{2}\ m^{-2}\ s^{-1}}$"
units_le = r"$\mathrm{W\ m^{-2}}$"
units_h = r"$\mathrm{W\ m^{-2}}$"
units_n2o = r"$\mathrm{nmol\ N_{2}O\ m^{-2}\ s^{-1}}$"
units_ch4 = r"$\mathrm{nmol\ CH_{4}\ m^{-2}\ s^{-1}}$"

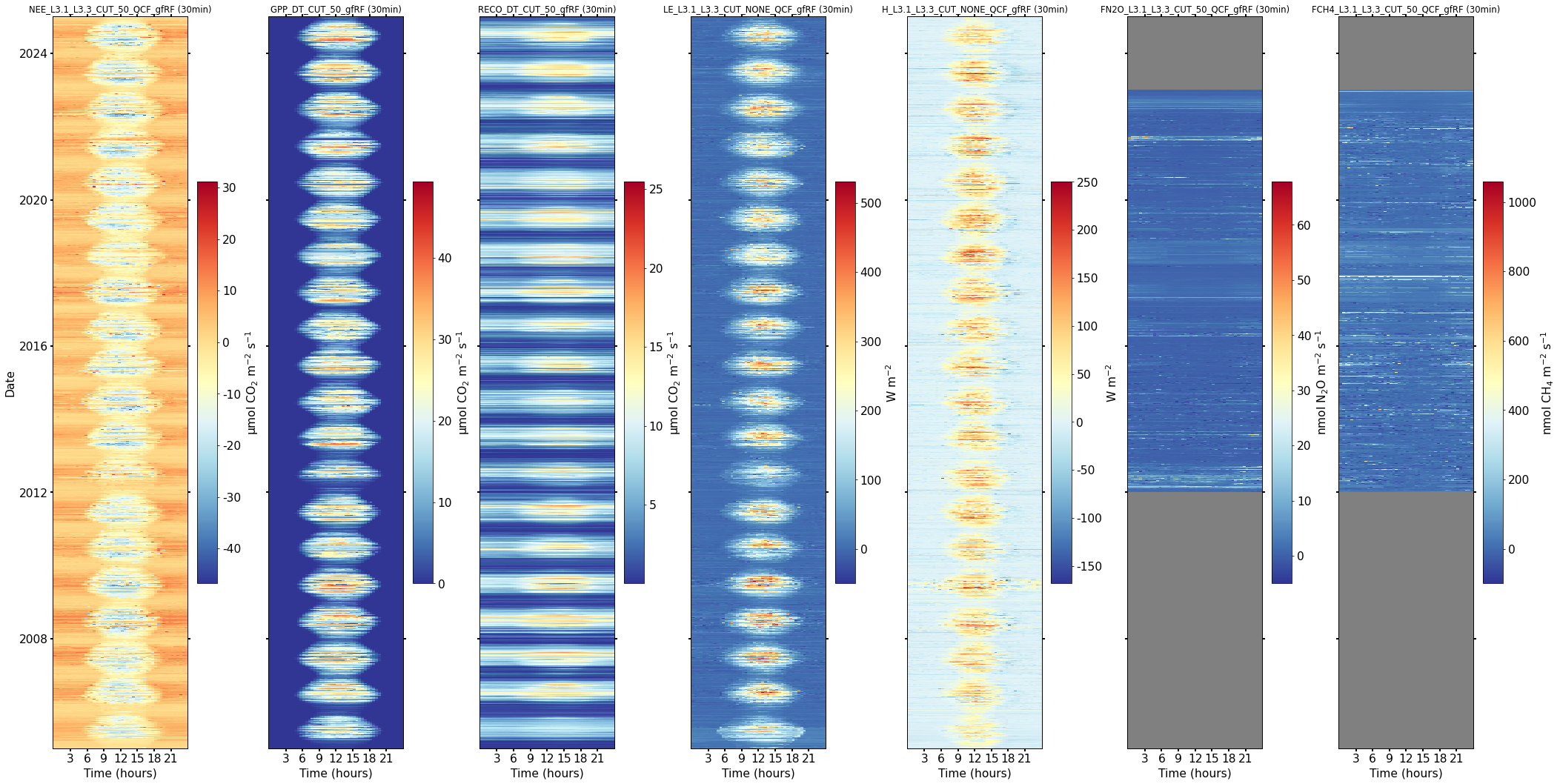

Heatmaps (half-hourly fluxes)

fig, axs = plt.subplots(ncols=7, figsize=(30, 15), dpi=70, layout="constrained")
dv.heatmapdatetime(series=df[nee], cb_digits_after_comma=0, ax=axs[0], zlabel=units_nee).plot()
dv.heatmapdatetime(series=df[gpp], cb_digits_after_comma=0, ax=axs[1], zlabel=units_gpp).plot()
dv.heatmapdatetime(series=df[reco], cb_digits_after_comma=0, ax=axs[2], zlabel=units_reco).plot()
dv.heatmapdatetime(series=df[le], cb_digits_after_comma=0, ax=axs[3], zlabel=units_le).plot()
dv.heatmapdatetime(series=df[h], cb_digits_after_comma=0, ax=axs[4], zlabel=units_h).plot()
dv.heatmapdatetime(series=df[n2o], cb_digits_after_comma=0, ax=axs[5], zlabel=units_n2o).plot()
dv.heatmapdatetime(series=df[ch4], cb_digits_after_comma=0, ax=axs[6], zlabel=units_ch4).plot()
hide_labels = [1, 2, 3, 4, 5, 6]
for h in hide_labels:
    axs[h].axes.get_yaxis().get_label().set_visible(False)
    plt.setp(axs[h].get_yticklabels(), visible=False)

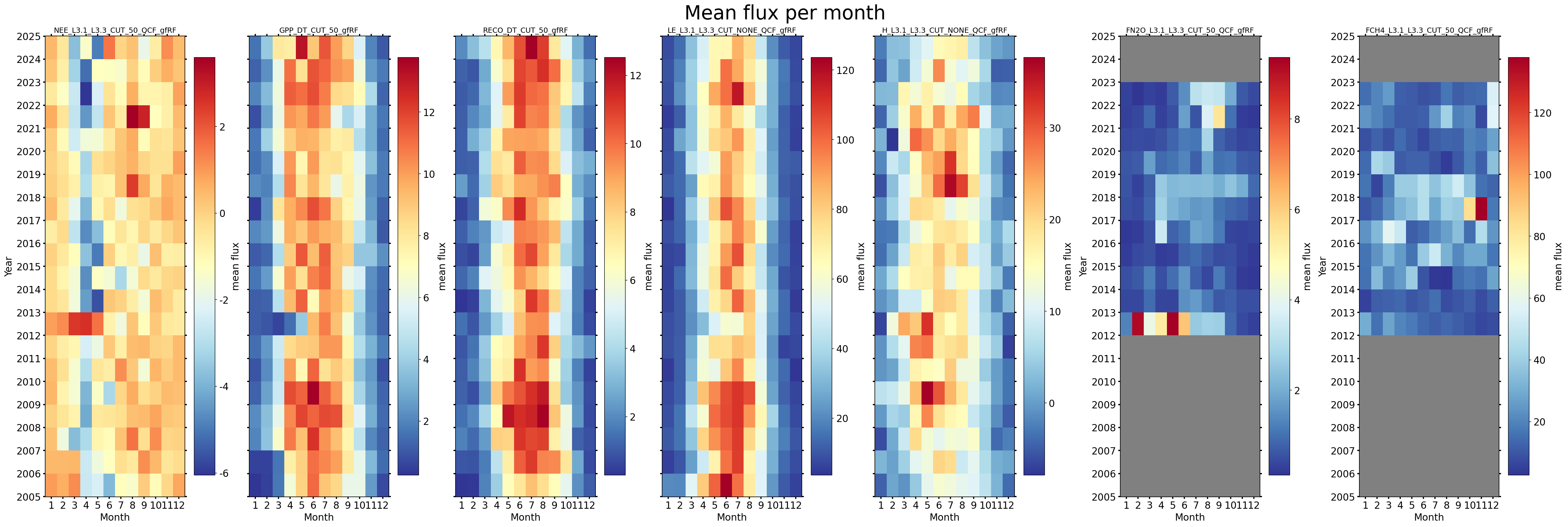

Heatmaps (monthly fluxes)

fig, axs = plt.subplots(ncols=7, figsize=(36, 12), dpi=150, layout="constrained")
fig.suptitle(f'Mean flux per month', fontsize=32)

for ix, f in enumerate(fluxes):
    s = df[f].resample('M').mean()
    dv.heatmapyearmonth(series_monthly=s, title=s.name, ax=axs[ix], cb_digits_after_comma=0, zlabel="mean flux").plot()

# axs[0].axes.get_yaxis().get_label().set_visible(False)
hide_labels = [1, 2, 3, 4]
for h in hide_labels:
    axs[h].axes.get_yaxis().get_label().set_visible(False)
    plt.setp(axs[h].get_yticklabels(), visible=False)

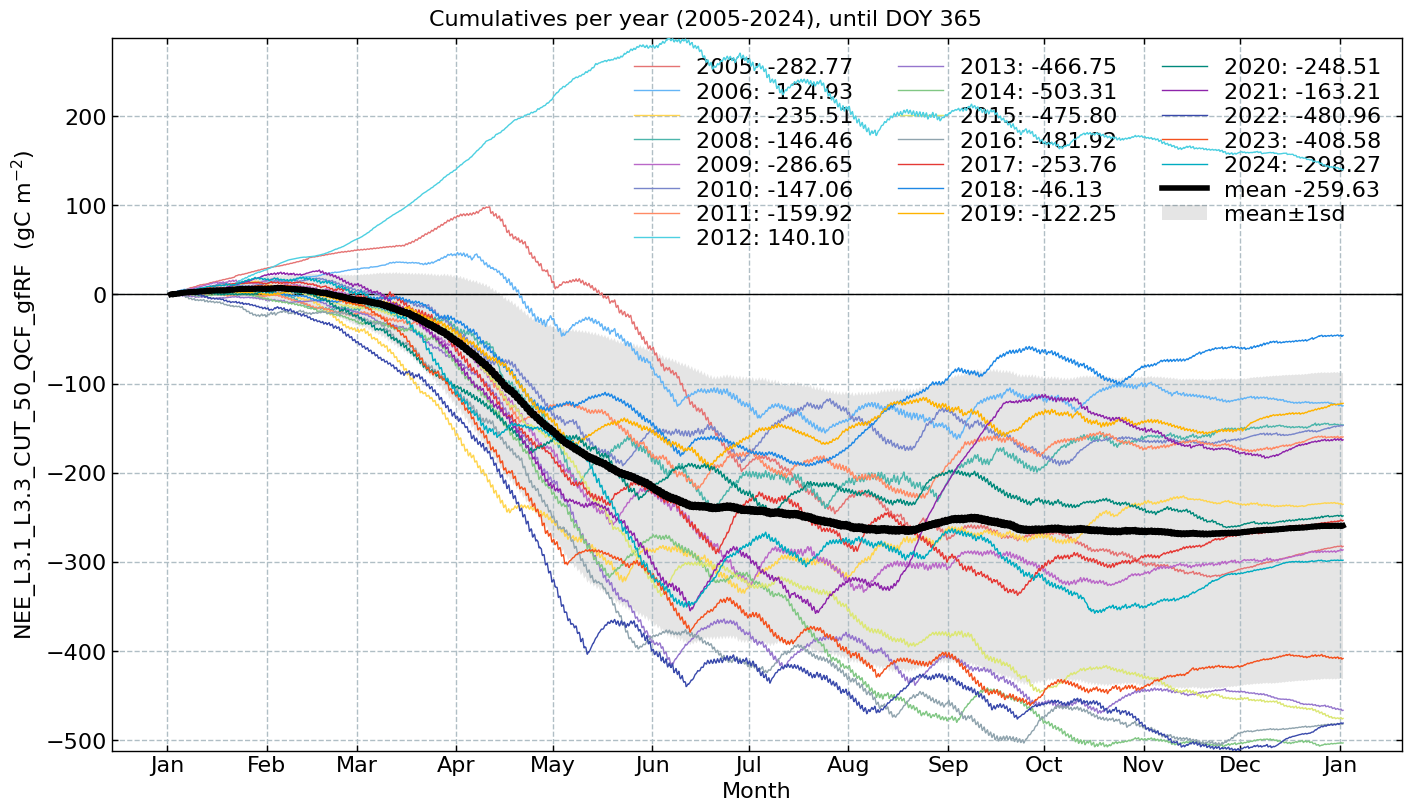

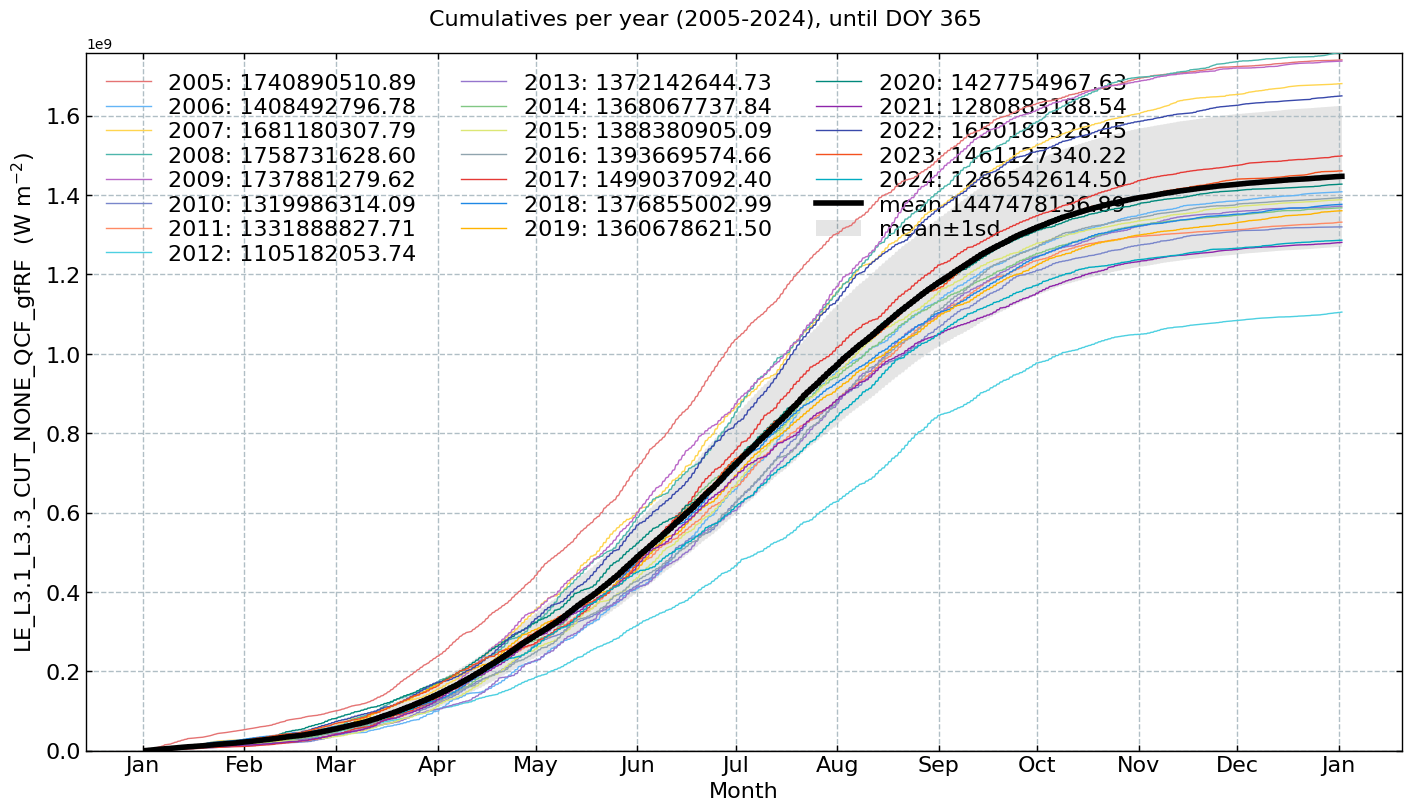

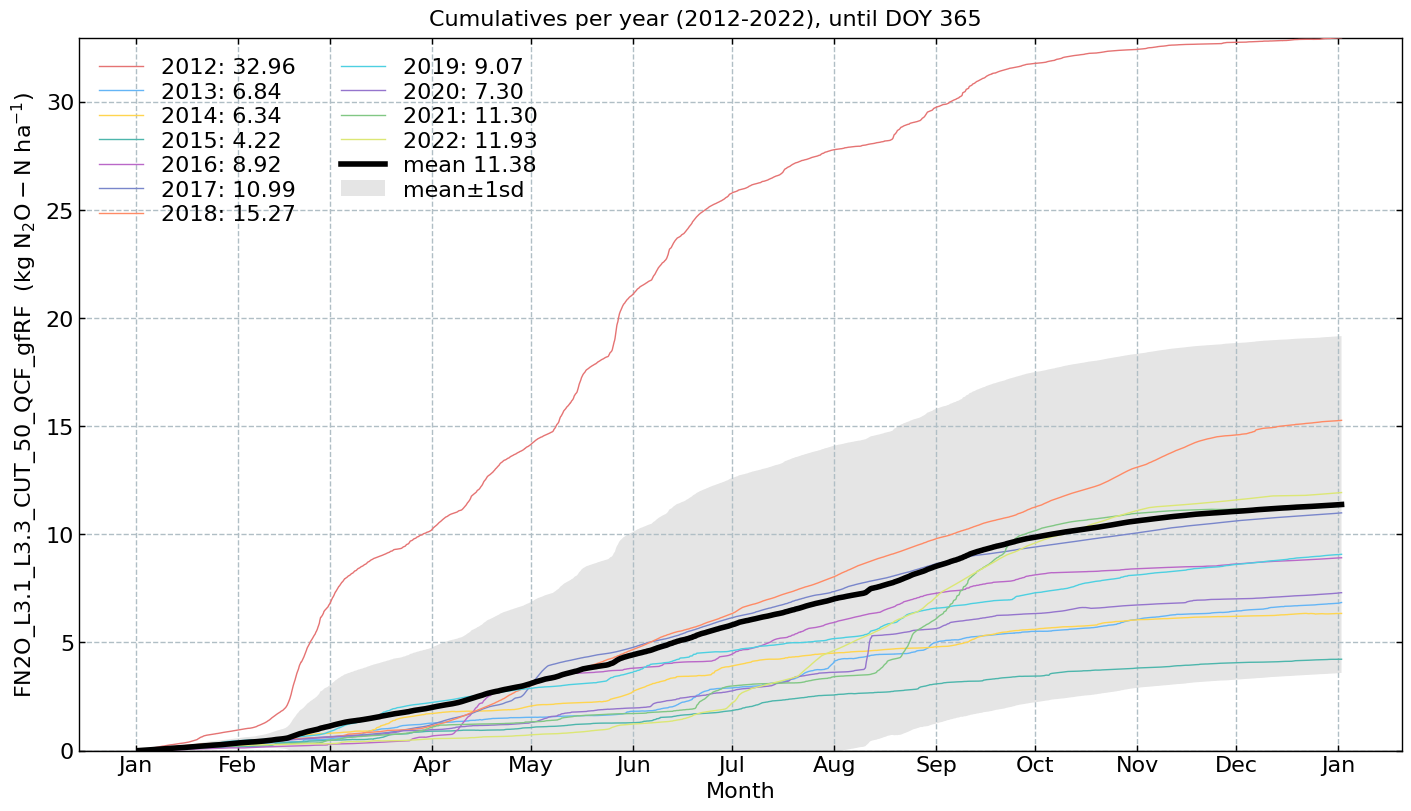

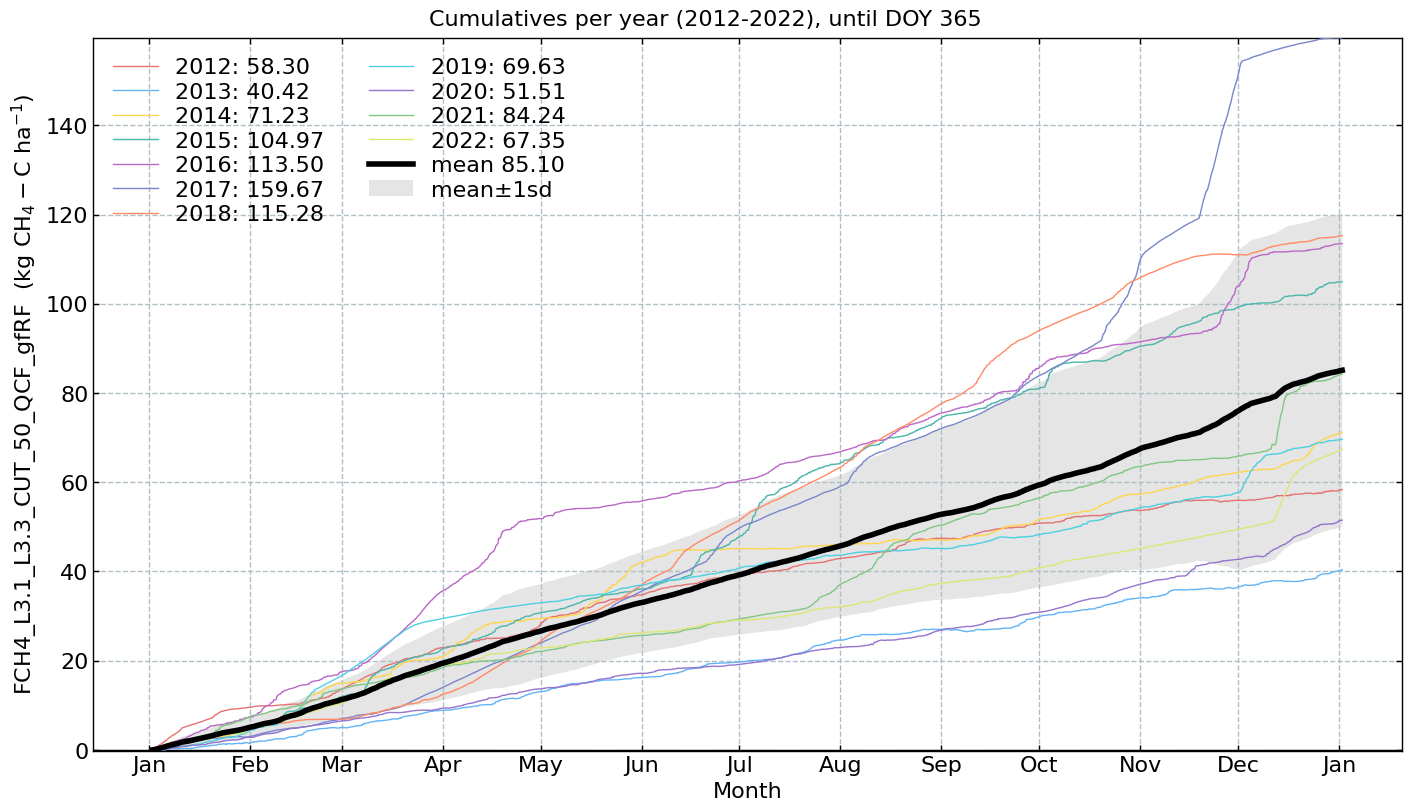

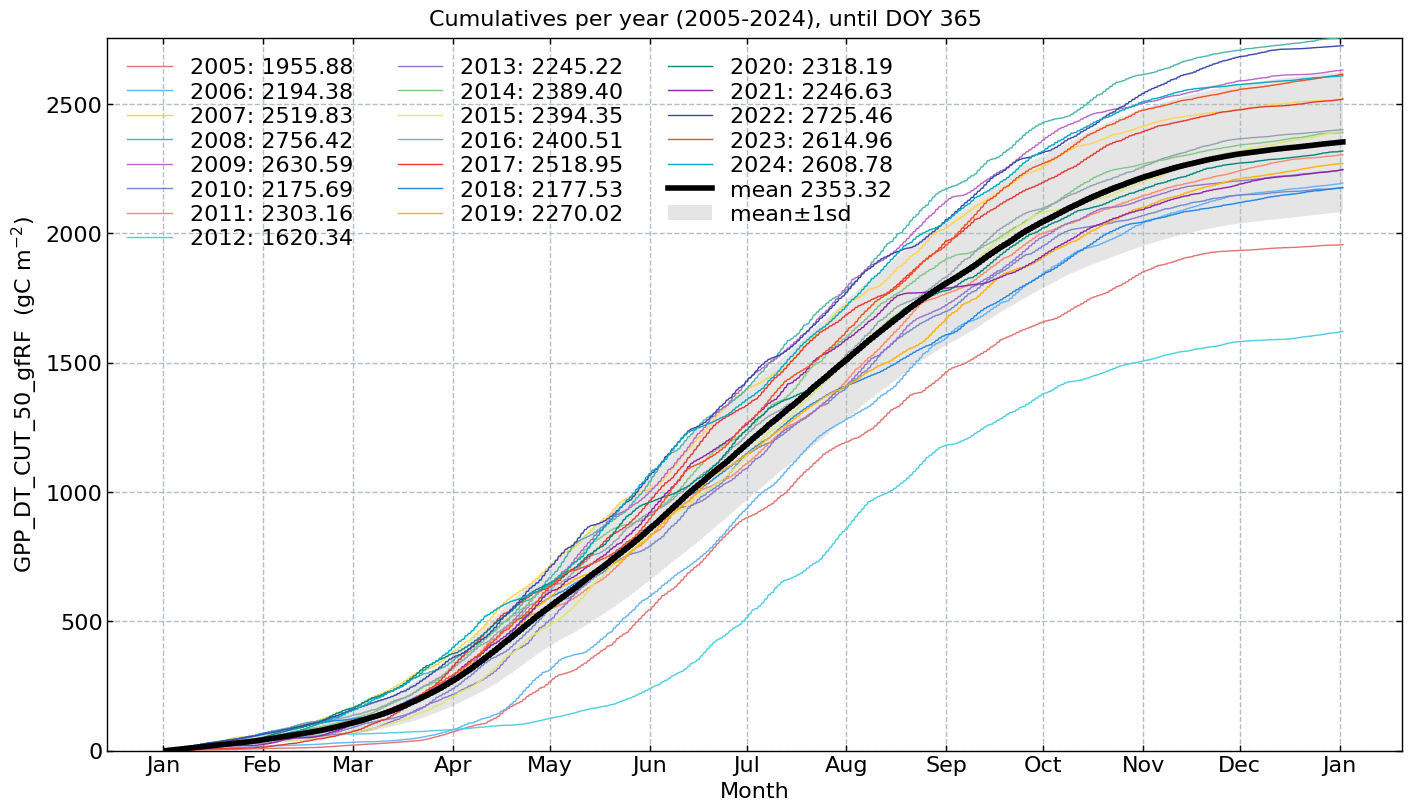

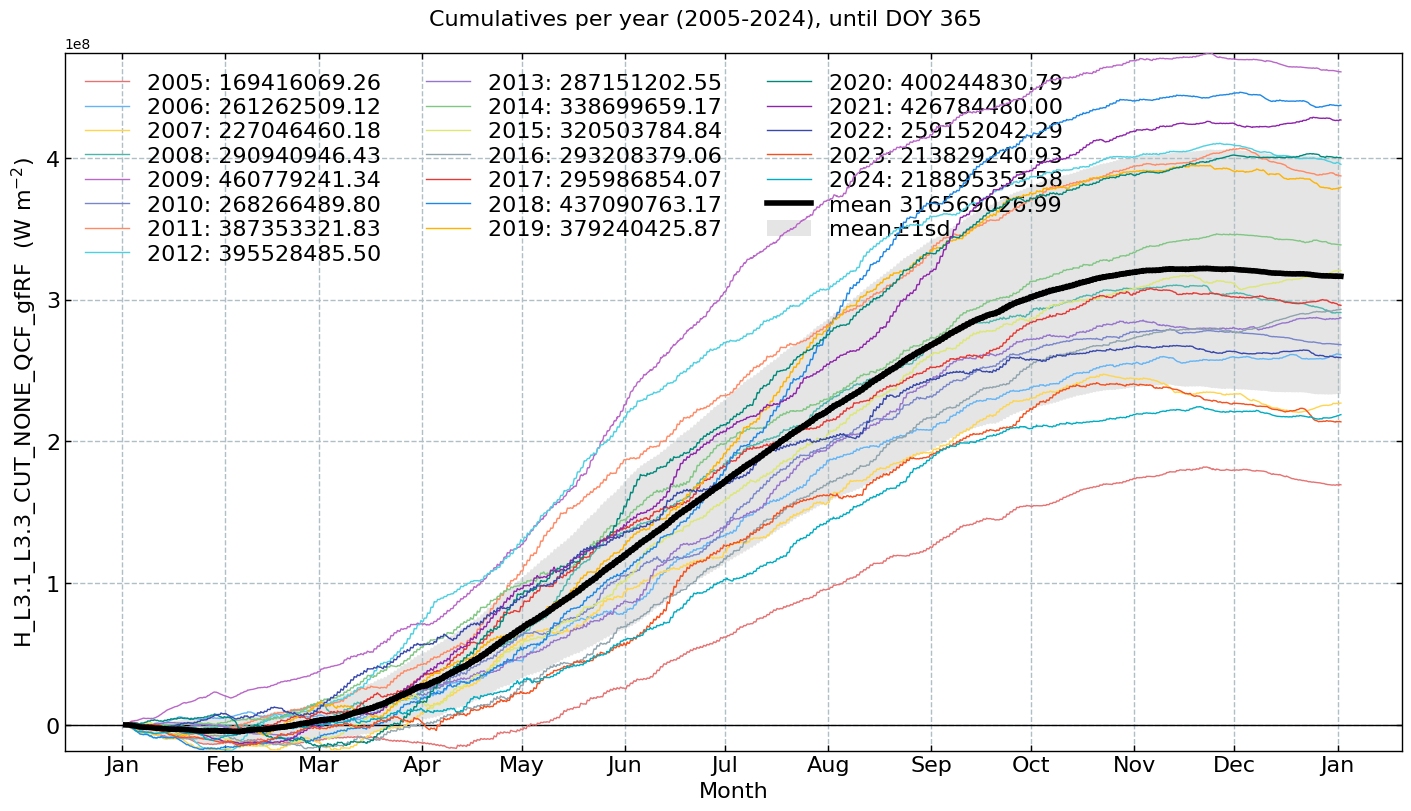

Cumulatives per year

# Conversion factors and resulting units
conversions = {
    'NEE_L3.1_L3.3_CUT_50_QCF_gfRF': [0.02161926, r'($\mathrm{gC\ m^{-2}}$)'],  # umol CO2 m-2 s-1 --> gC m-2 30min-1
    'GPP_DT_CUT_50_gfRF': [0.02161926, r'($\mathrm{gC\ m^{-2}}$)'],  # umol CO2 m-2 s-1 --> gC m-2 30min-1
    'RECO_DT_CUT_50_gfRF': [0.02161926, r'($\mathrm{gC\ m^{-2}}$)'],  # umol CO2 m-2 s-1 --> gC m-2 30min-1
    'LE_L3.1_L3.3_CUT_NONE_QCF_gfRF': [1800, r'($\mathrm{W\ m^{-2}}$)'],  # W m-2 s-1 --> W m-2 30min-1
    'H_L3.1_L3.3_CUT_NONE_QCF_gfRF': [1800, r'($\mathrm{W\ m^{-2}}$)'],  # W m-2 s-1 --> W m-2 30min-1
    'FN2O_L3.1_L3.3_CUT_50_QCF_gfRF': [0.00050424109632, r'($\mathrm{kg\ N_2O-N\ ha^{-1}}$)'],  # nmol N2O m-2 s-1 --> kg N2O-N ha-1 30min-1
    'FCH4_L3.1_L3.3_CUT_50_QCF_gfRF': [0.000216198, r'($\mathrm{kg\ CH_4-C\ ha^{-1}}$)']  # nmol CH4 m-2 s-1 --> kg CH4-C ha-1 30min-1
}

for f in fluxes:
    s = df[f].multiply(conversions[f][0])
    units = conversions[f][1]

    CumulativeYear(
        series=s,
        series_units=units,
        start_year=2005,
        end_year=2024,
        show_reference=True,
        excl_years_from_reference=None,
        highlight_year=None,
        highlight_year_color='#F44336').plot();

End of notebook

dt_string = datetime.now().strftime("%Y-%m-%d %H:%M:%S")
print(f"Finished. {dt_string}")

Finished. 2025-05-16 16:02:48
